TRACOPOWER THR 20WI Isolated DC-DC Converter, 12V dc/, 40 → 160 V dc Input, 20W, PCB
- RS Stock No.:
- 249-5502
- Mfr. Part No.:
- THR 20-7222WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£471.06
(exc. VAT)
£565.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit | Per Tube* |
|---|---|---|
| 10 - 40 | £47.106 | £471.06 |
| 50 - 90 | £45.693 | £456.93 |
| 100 - 240 | £44.28 | £442.80 |
| 250 - 490 | £42.396 | £423.96 |
| 500 + | £40.512 | £405.12 |
*price indicative
- RS Stock No.:
- 249-5502
- Mfr. Part No.:
- THR 20-7222WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 40 → 160 V dc | |
| Power Rating | 20W | |
| Input Voltage Nominal | 110 V dc | |
| Mounting Type | PCB | |
| Isolated | Yes | |
| Output Voltage Adjustment Range | ±10% | |
| Isolation Voltage | 3'000V dc | |
| Railway Approved | No | |
| Series | THR 20WI | |
| Medical Approved | No | |
| Select all | ||
|---|---|---|
| Brand TRACOPOWER | ||
| Output Voltage 12V dc | ||
| Input Voltage Range 40 → 160 V dc | ||
| Power Rating 20W | ||
| Input Voltage Nominal 110 V dc | ||
| Mounting Type PCB | ||
| Isolated Yes | ||
| Output Voltage Adjustment Range ±10% | ||
| Isolation Voltage 3'000V dc | ||
| Railway Approved No | ||
| Series THR 20WI | ||
| Medical Approved No | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW

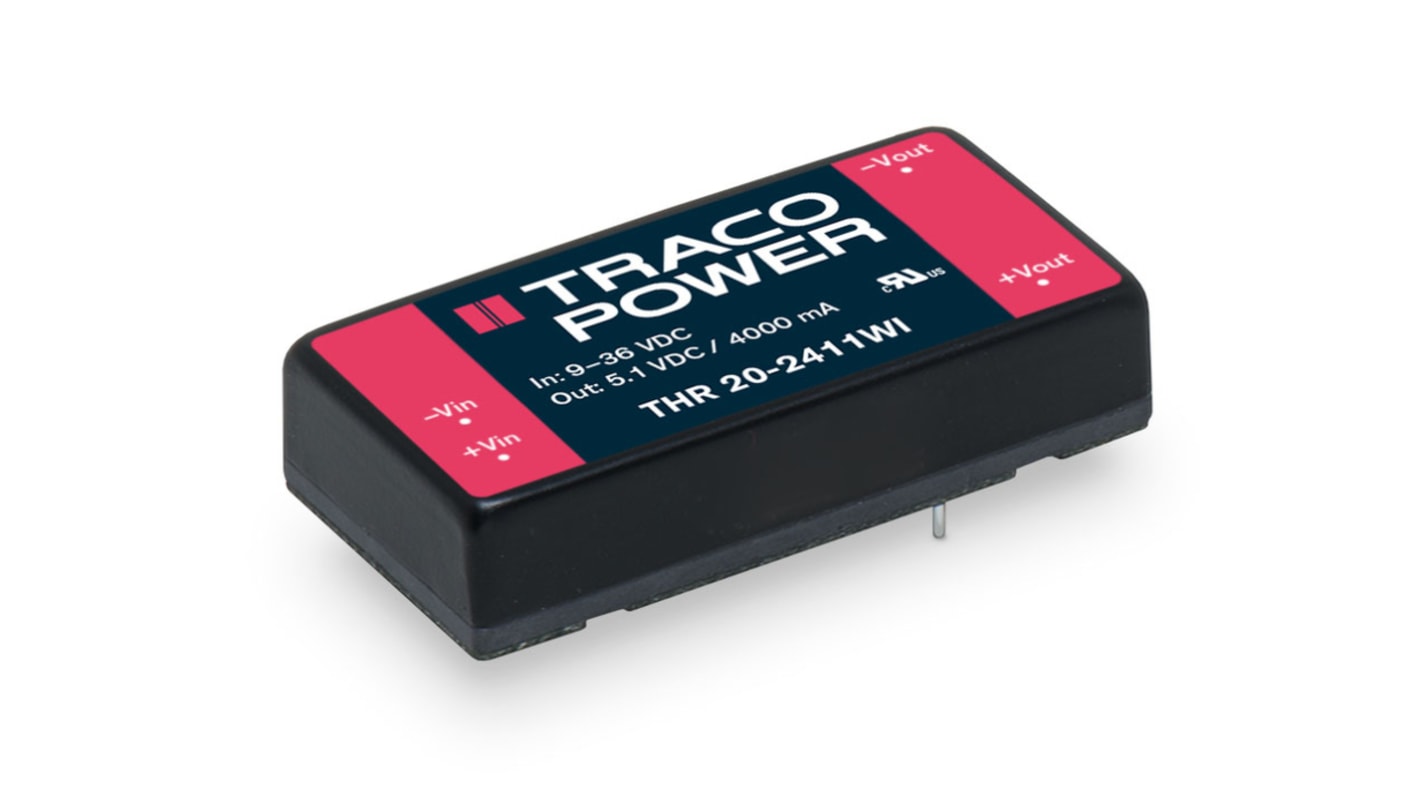

The TRACOPOWER the THR 20WI is 20 Watt DC/DC converters series with reinforced isolation (3000 VAC). These regulated DC/DC converters come in either a 2"x1" package and also feature increased resistance against shock and vibration according to EN 61373. The THR 20WI offers an internal input filter to comply with EN 55032 class A.
Reinforced I/O-isolation 3000 VAC
Shock and vibration resistance
according to EN 61373
Wide 4:1 input voltage range: 9-36,18-75, 40-160 VDC
Operating temperature range -40 to +85°C
Internal EN 55032 class A filter
High efficiency up to 88%
Protection against overload, overvoltage and short circuit
3-year product warranty
Shock and vibration resistance
according to EN 61373
Wide 4:1 input voltage range: 9-36,18-75, 40-160 VDC
Operating temperature range -40 to +85°C
Internal EN 55032 class A filter
High efficiency up to 88%
Protection against overload, overvoltage and short circuit
3-year product warranty
