TRACOPOWER THR 20WI Isolated DC-DC Converter, 12V dc/ 833 mA, 75V dc Input, 18V Input 10 W, PCB, 85 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£39.14

(exc. VAT)

£46.97

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 14 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£39.14
5 - 9£37.97
10 - 24£36.79
25 - 49£35.23
50 +£33.66

*price indicative

RS Stock No.:
249-5489
Distrelec Article No.:
302-64-386
Mfr. Part No.:
THR 20-4822WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

Isolated DC-DC Converter

Output Voltage 1

12V dc

Maximum Input Voltage

75V dc

Minimum Input Voltage

18V

Output Current 1

833mA

Output Current 2

-833mA

Output Voltage 2

12V dc

Mount Type

PCB

Input Ratio

4:1

MTBF

665000h

Number of Outputs

2

Output Voltage Adjustment Range

±10 %

Number of Pins

6

Isolation Voltage

3000V dc

Maximum Output Power

10W

Depth

11mm

Length

50.8mm

Standards/Approvals

No

Series

THR 20WI

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

87%

RoHS Status: Exempt

COO (Country of Origin):
TW

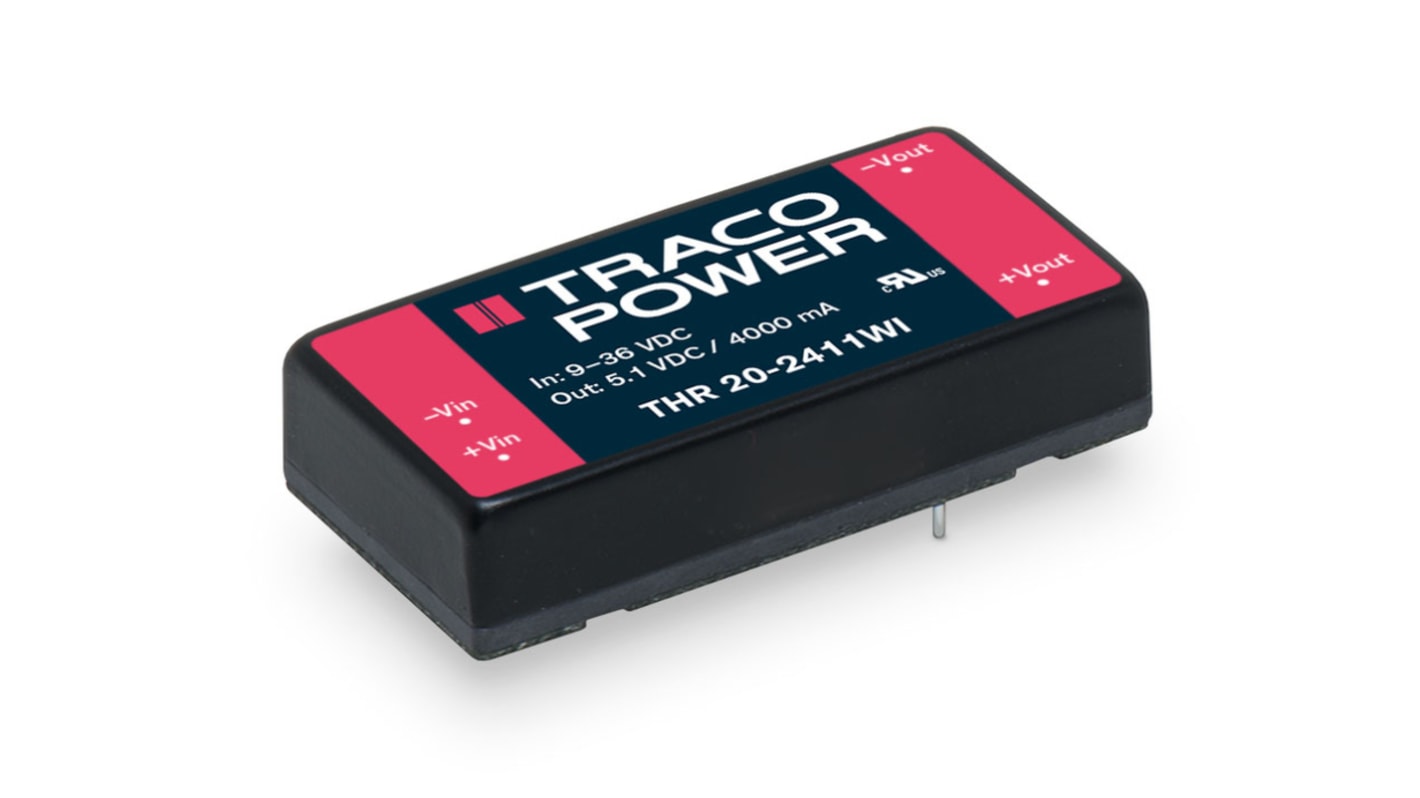

The TRACOPOWER the THR 20WI is 20 Watt DC/DC converters series with reinforced isolation (3000 VAC). These regulated DC/DC converters come in either a 2"x1" package and also feature increased resistance against shock and vibration according to EN 61373. The THR 20WI offers an internal input filter to comply with EN 55032 class A.

Reinforced I/O-isolation 3000 VAC

Shock and vibration resistance

according to EN 61373

Wide 4:1 input voltage range: 9-36,18-75, 40-160 VDC

Operating temperature range -40 to +85°C

Internal EN 55032 class A filter

High efficiency up to 88%

Protection against overload, overvoltage and short circuit

3-year product warranty
