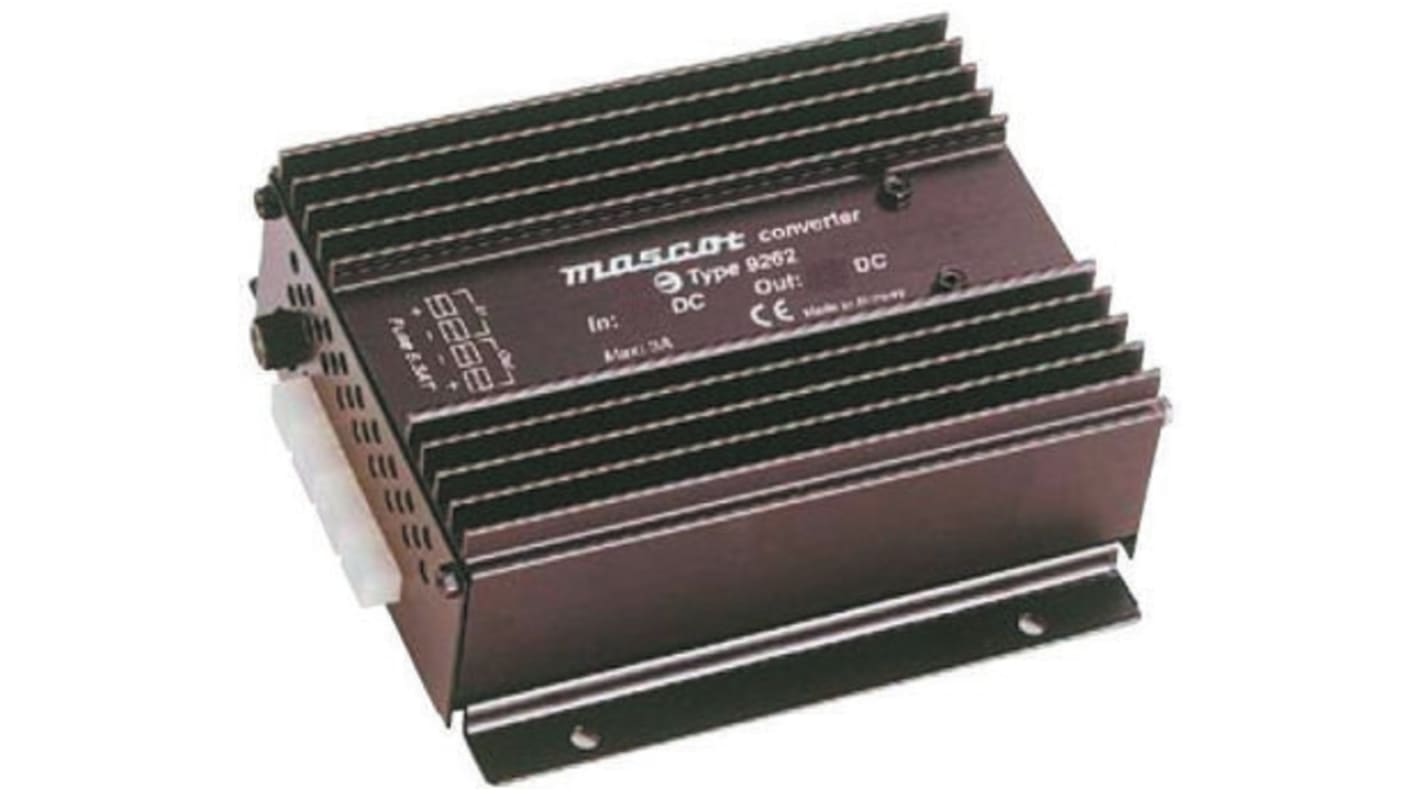

Mascot DC-DC Converter, 13.2V dc/ 8A Output, 21 → 32 V dc Input, 110W, Mounting Bracket, +30°C Max Temp -20°C
- RS Stock No.:
- 243-1147
- Mfr. Part No.:
- 9262000043
- Brand:
- Mascot
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 243-1147
- Mfr. Part No.:
- 9262000043
- Brand:
- Mascot
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mascot | |
Output Voltage | 13.2V dc | |
Input Voltage Range | 21 → 32 V dc | |
Power Rating | 110W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 8A | |
Mounting Type | Mounting Bracket | |
Length | 135mm | |
Depth | 46mm | |
Width | 119mm | |
Load Regulation | 0.05 | |
Maximum Temperature | +30°C | |
Minimum Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Mascot | ||
Output Voltage 13.2V dc | ||
Input Voltage Range 21 → 32 V dc | ||
Power Rating 110W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 8A | ||
Mounting Type Mounting Bracket | ||
Length 135mm | ||
Depth 46mm | ||
Width 119mm | ||
Load Regulation 0.05 | ||
Maximum Temperature +30°C | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- NO
27W to 276W Linear & Switch Mode, DC to DC Battery Voltage Converters
Wide input voltage range
Regulated output
Input protected against reverse polarity
Input fuse protection
Ouput overvoltage protection
EMC to EN50081-1/50082-1
12Vdc and 24Vdc input types are 'E' approved for vehicle applications
Regulated output
Input protected against reverse polarity
Input fuse protection
Ouput overvoltage protection
EMC to EN50081-1/50082-1
12Vdc and 24Vdc input types are 'E' approved for vehicle applications
Additional features on switch mode units
Electrical isolation between input/output/chassis
Short circuit proof
Thermal protection
Short circuit proof
Thermal protection
Note
All have 6.3mm push-on terminals apart from stk nos 397-9583 and 397-9599 which have screw terminals.
Linear units have a common negative connection between input and output.
Switch Mode units have electrical separation between input/output/chassis, except stock nos. 397-9583, 452-8603, 218-4835, 243-1131 & 397-9599 which are not-isolated.
Linear units have a common negative connection between input and output.
Switch Mode units have electrical separation between input/output/chassis, except stock nos. 397-9583, 452-8603, 218-4835, 243-1131 & 397-9599 which are not-isolated.
Caution
The user is responsible for ensuring the suitability of any equipment connected to these vehicle power adaptors. For in vehicle use only. Protect from moisture.
