	Brand	TRACOPOWER
	Output Voltage	±5V dc
	Input Voltage Range	18 → 36 V dc
	Power Rating	10W
	Input Voltage Nominal	24 V dc
	Output Current	±1A
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	2
	Package	2 x 1 in
	Isolation Voltage	1.5kV dc
	Width	25.4mm
	Depth	10.2mm
	Length	50.8mm
	Series	TEN 10
	Load Regulation	±3%
	Minimum Temperature	-40°C
	Efficiency	80%
	Maximum Temperature	+85°C
	Standards Met	UL 60950-1

	Select all
	Brand TRACOPOWER
	Output Voltage ±5V dc
	Input Voltage Range 18 → 36 V dc
	Power Rating 10W
	Input Voltage Nominal 24 V dc
	Output Current ±1A
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 2
	Package 2 x 1 in
	Isolation Voltage 1.5kV dc
	Width 25.4mm
	Depth 10.2mm
	Length 50.8mm
	Series TEN 10
	Load Regulation ±3%
	Minimum Temperature -40°C
	Efficiency 80%
	Maximum Temperature +85°C
	Standards Met UL 60950-1

COO (Country of Origin):: TW

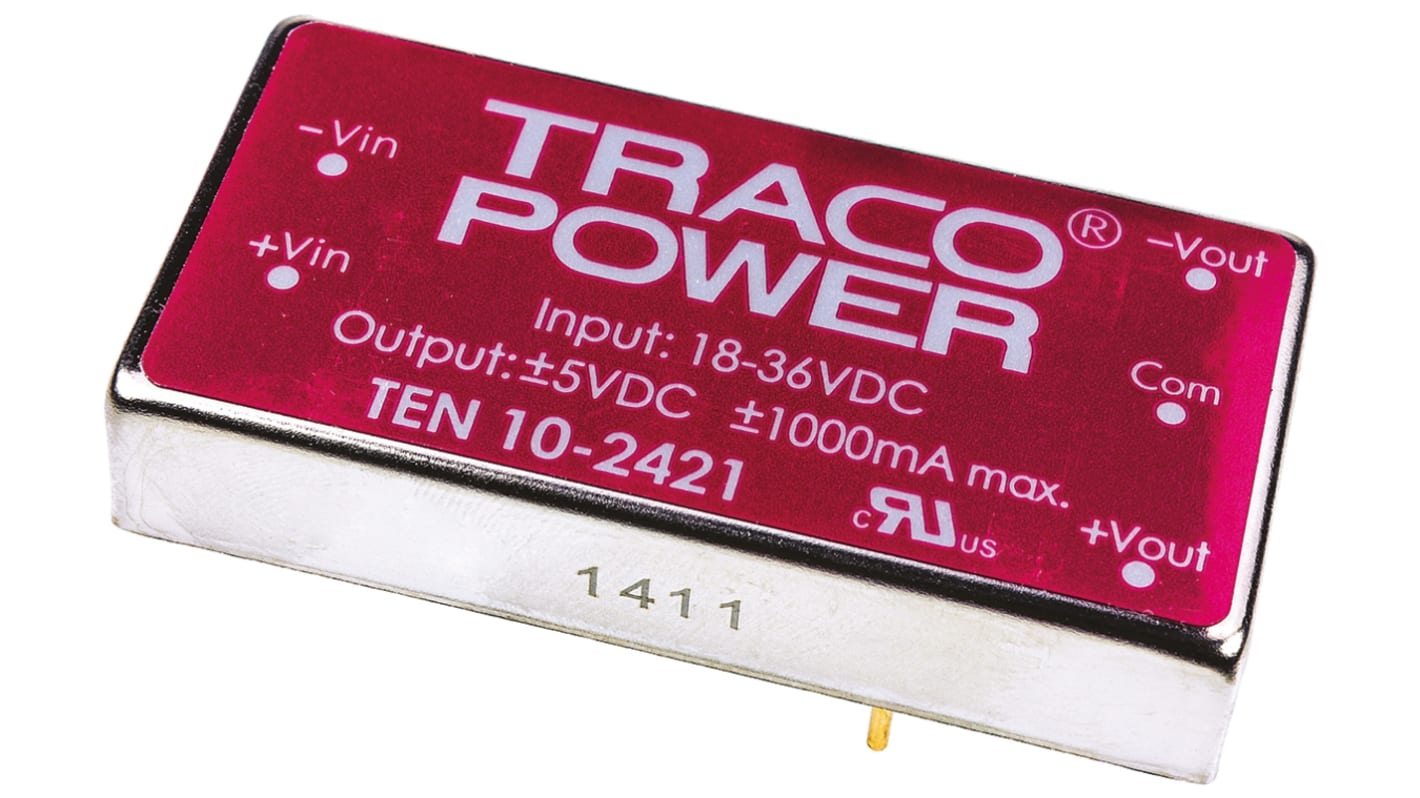

Traco Power TEN 10 DC-DC Converter, 24V to 5V - TEN 10-2421

This high-efficiency DC-DC converter from Traco Power is designed to convert a 24V input voltage to a precise 5V output, with capabilities for dual outputs. With a power rating of 10W and isolated features, this compact converter is reliable for a wide range of applications in industries requiring regulated voltages.

Features & Benefits

• Wide 2:1 input range for versatile use
• High power density for efficient operation
• Operating temperature range from -40°C to +85°C
• Indefinite short circuit protection for safety
• I/O isolation at 1500 VDC for protection
• Industry standard pinout for easy integration
• Shielded metal case with insulated baseplate for durability
• High reliability with MTBF exceeding 1 million hours

Applications

• Battery-operated equipment
• Communication power architectures
• Industrial electronics requiring isolated voltages

Can it handle a wide range of input voltages?

Yes, it can operate with input voltages ranging from 18V to 36V DC.

Will it provide precise and regulated 5V output?

Yes, the converter offers a ±5V DC output with load regulation of ±3%.

Is it suitable for harsh environments with extreme temperatures?

Definitely, with an operating temperature range of -40°C to +85°C, it is ideal for varied conditions.

Can it be used in applications requiring dual outputs?

Yes, the converter offers dual outputs for diverse applications.

Units	Per unit
1 - 4	£46.83
5 - 9	£45.43
10 - 24	£44.03
25 - 49	£42.15
50 +	£40.28

TRACOPOWER TEN 10 DC-DC Converter, ±5V dc/ ±1A Output, 18 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp
