Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	24V dc
	Input Voltage Range	18 → 36 V dc
	Power Rating	10W
	Input Voltage Nominal	24 V dc
	Output Current	415mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	2 x 1 in
	Isolation Voltage	1.5kV dc
	Depth	10.2mm
	Length	50.8mm
	Width	25.4mm
	Series	TEN 10
	Load Regulation	±0.5%
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C
	Efficiency	83%
	Standards Met	UL 60950-1

	Select all
	Brand TRACOPOWER
	Output Voltage 24V dc
	Input Voltage Range 18 → 36 V dc
	Power Rating 10W
	Input Voltage Nominal 24 V dc
	Output Current 415mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package 2 x 1 in
	Isolation Voltage 1.5kV dc
	Depth 10.2mm
	Length 50.8mm
	Width 25.4mm
	Series TEN 10
	Load Regulation ±0.5%
	Minimum Temperature -40°C
	Maximum Temperature +85°C
	Efficiency 83%
	Standards Met UL 60950-1

COO (Country of Origin):: TW

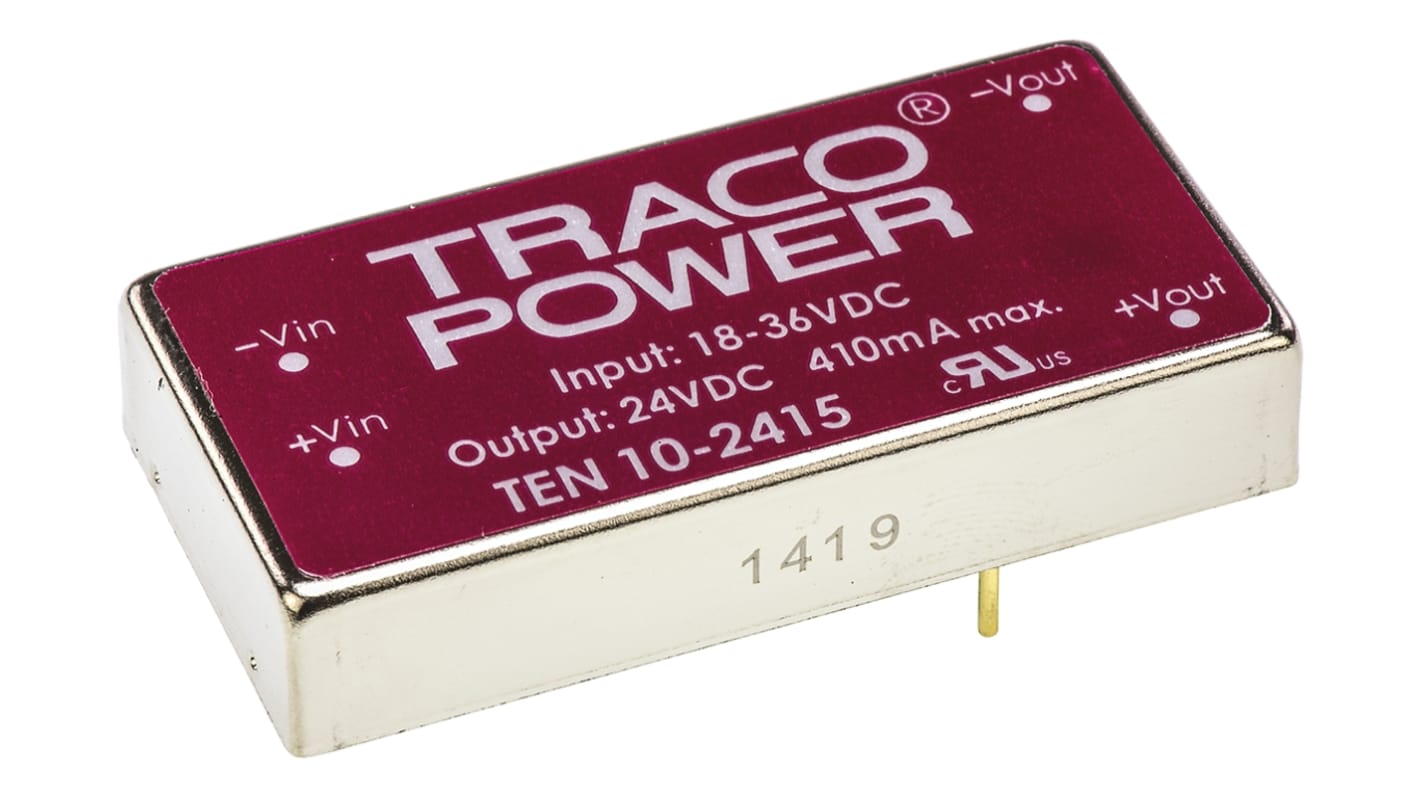

Traco Power TEN 10 Series DC-DC Converter, 83% Efficiency, Through Hole Mount - TEN 10-2415

This Traco Power DC-DC converter is a high efficiency industrial grade converter designed for applications in electronics, automation, and mechanical industries. With a 415mA output current, 10W power rating, and isolated design, this converter offers reliable performance in a compact form factor. It operates efficiently within a wide temperature range of 40°C to +85°C, making it ideal for demanding environments.

Features & Benefits

• Wide 2:1 input range for versatile compatibility
• High power density for efficient energy conversion
• Operating temperature range from 40°C to +85°C for reliable performance in extreme conditions
• Indefinite short circuit protection for added safety
• I/O isolation of up to 1500 VDC for enhanced protection
• Industry standard pinout for easy integration
• Shielded metal case with insulated baseplate for durability

Applications

• Battery-operated equipment
• Instrumentation devices
• Distributed power architectures in communication systems
• Industrial electronics requiring isolated and regulated voltages

Can it operate in extreme temperature conditions?

Yes, the Traco Power DC-DC converter is designed to operate within a temperature range of -40°C to +85°C.

Will it provide reliable protection against short circuits?

The converter offers indefinite short circuit protection for added safety during operation.

Is it suitable for applications requiring isolated and regulated voltages?

Yes, the isolated design and tightly regulated output voltage make it ideal for such applications.

Units	Per unit
1 - 4	£45.89
5 - 9	£44.52
10 - 24	£43.14
25 - 49	£41.31
50 +	£39.47

TRACOPOWER TEN 10 DC-DC Converter, 24V dc/ 415mA Output, 18 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp
