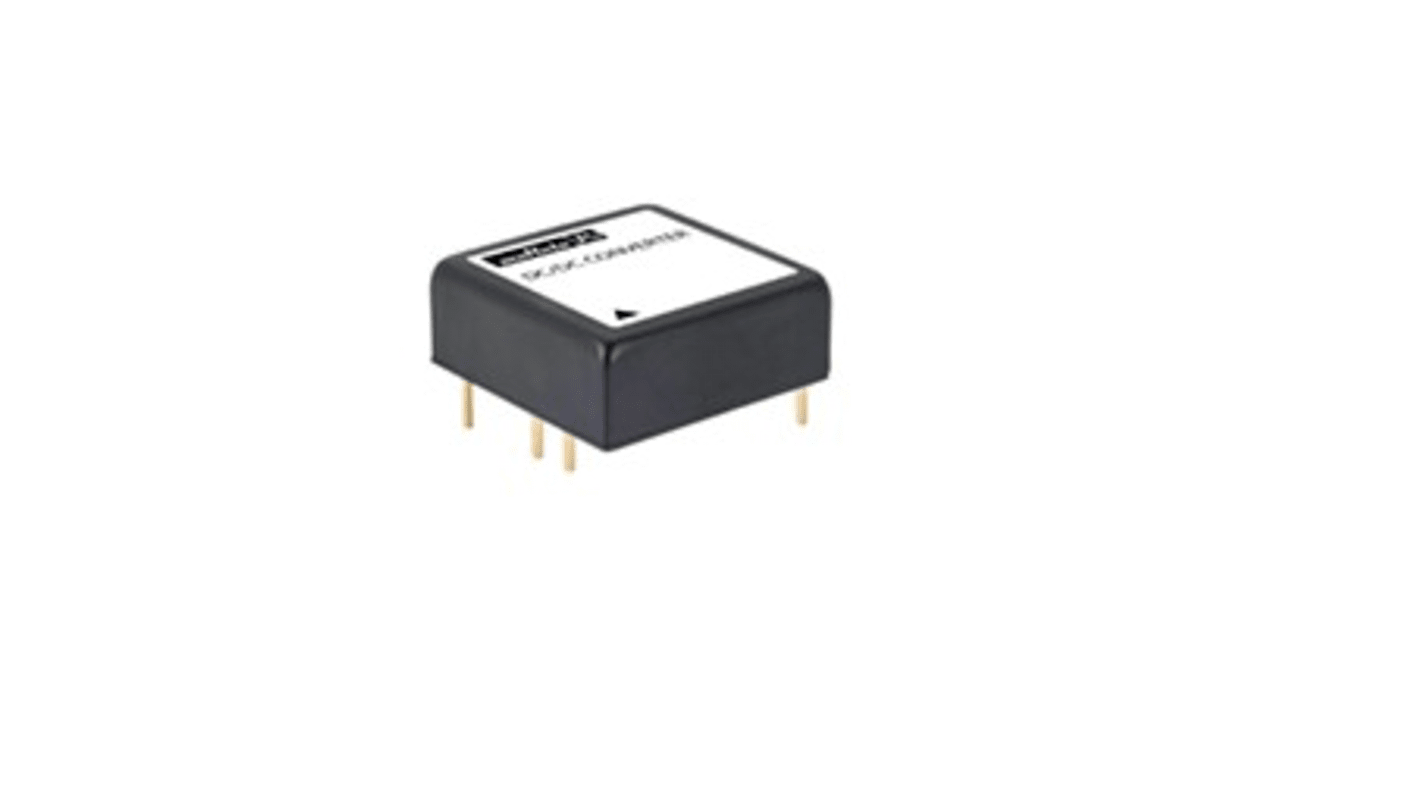

Murata BPM15 Isolated DC-DC Converter, 15V dc/ 0.5 A, 36V Input, 24V Input, 15 W, 85 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 238-7101
- Mfr. Part No.:
- BPM15-150-Q12P-C
- Brand:
- Murata
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 238-7101
- Mfr. Part No.:
- BPM15-150-Q12P-C
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Isolated DC-DC Converter | |
| Output Voltage 1 | 15V dc | |
| Minimum Input Voltage | 24V | |
| Maximum Input Voltage | 36V | |
| Output Current 1 | 0.5A | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 0.25 %, -0.25/0.25 % | |
| Ripple and Noise | 120mV Pk-Pk | |
| Isolation Voltage | 1.6kV dc | |
| Maximum Output Power | 15W | |
| Package Type | Encapsulated | |
| Length | 1in | |
| Series | BPM15 | |
| Standards/Approvals | CAN/CSA-C22.2 No. 60950-1, EN60950-1, IEC60950-1, UL 60950-1 | |
| Weight | 0.69oz | |
| Width | 1in | |
| Depth | 0.4in | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 82.5% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Isolated DC-DC Converter | ||
Output Voltage 1 15V dc | ||
Minimum Input Voltage 24V | ||
Maximum Input Voltage 36V | ||
Output Current 1 0.5A | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 0.25 %, -0.25/0.25 % | ||
Ripple and Noise 120mV Pk-Pk | ||
Isolation Voltage 1.6kV dc | ||
Maximum Output Power 15W | ||
Package Type Encapsulated | ||
Length 1in | ||
Series BPM15 | ||
Standards/Approvals CAN/CSA-C22.2 No. 60950-1, EN60950-1, IEC60950-1, UL 60950-1 | ||
Weight 0.69oz | ||
Width 1in | ||
Depth 0.4in | ||
Maximum Operating Temperature 85°C | ||
Efficiency 82.5% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
The Murata Encapsulated isolated wide input bipolar 15 watt DC/DC converter offers efficient regulated DC power for printed circuit board mounting. The rugged mechanical, thermal and electrical design of this product is intended for high reliability and harsh environment.
Five-sided shielded metal package reduces radiated emissions
Up to 15 Watts or greater total output power with over temperature shutdown
Isolation up to 1600 Vdc(basic)
High efficiency flyback topology
