Recom R05CT DC/DC Converter, 5V dc/ 100 mA, 6V Input, 0.3V Input 500 mW, Through Hole, 150 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 211-7166
- Mfr. Part No.:
- R05CT05S - CT
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.80
(exc. VAT)
£11.76
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.80 |
| 5 - 9 | £9.50 |
| 10 - 24 | £9.22 |
| 25 - 49 | £8.92 |
| 50 + | £8.63 |
*price indicative
- RS Stock No.:
- 211-7166
- Mfr. Part No.:
- R05CT05S - CT
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 6V | |
| Minimum Input Voltage | 0.3V | |
| Output Current 1 | 100mA | |
| Output Current 2 | 500mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 2500000000h | |
| Ripple and Noise | 50mV Pk-Pk | |
| Output Voltage Adjustment Range | 3.3/5 V dc | |
| Isolation Voltage | 5kV | |
| Number of Pins | 16 | |
| Maximum Output Power | 500mW | |
| Package Type | SOIC-16 | |
| Series | R05CT | |
| Width | 7.5mm | |
| Standards/Approvals | IECEN606011 (pending), UL6681 (pending), IECEN6681 (pending), CSACAN C. . 6681 (pending) | |
| Depth | 2.65mm | |
| Length | 10.3mm | |
| Efficiency | 60% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 6V | ||
Minimum Input Voltage 0.3V | ||
Output Current 1 100mA | ||
Output Current 2 500mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 2500000000h | ||
Ripple and Noise 50mV Pk-Pk | ||
Output Voltage Adjustment Range 3.3/5 V dc | ||
Isolation Voltage 5kV | ||
Number of Pins 16 | ||
Maximum Output Power 500mW | ||
Package Type SOIC-16 | ||
Series R05CT | ||
Width 7.5mm | ||
Standards/Approvals IECEN606011 (pending), UL6681 (pending), IECEN6681 (pending), CSACAN C. . 6681 (pending) | ||
Depth 2.65mm | ||
Length 10.3mm | ||
Efficiency 60% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
- COO (Country of Origin):
- CN

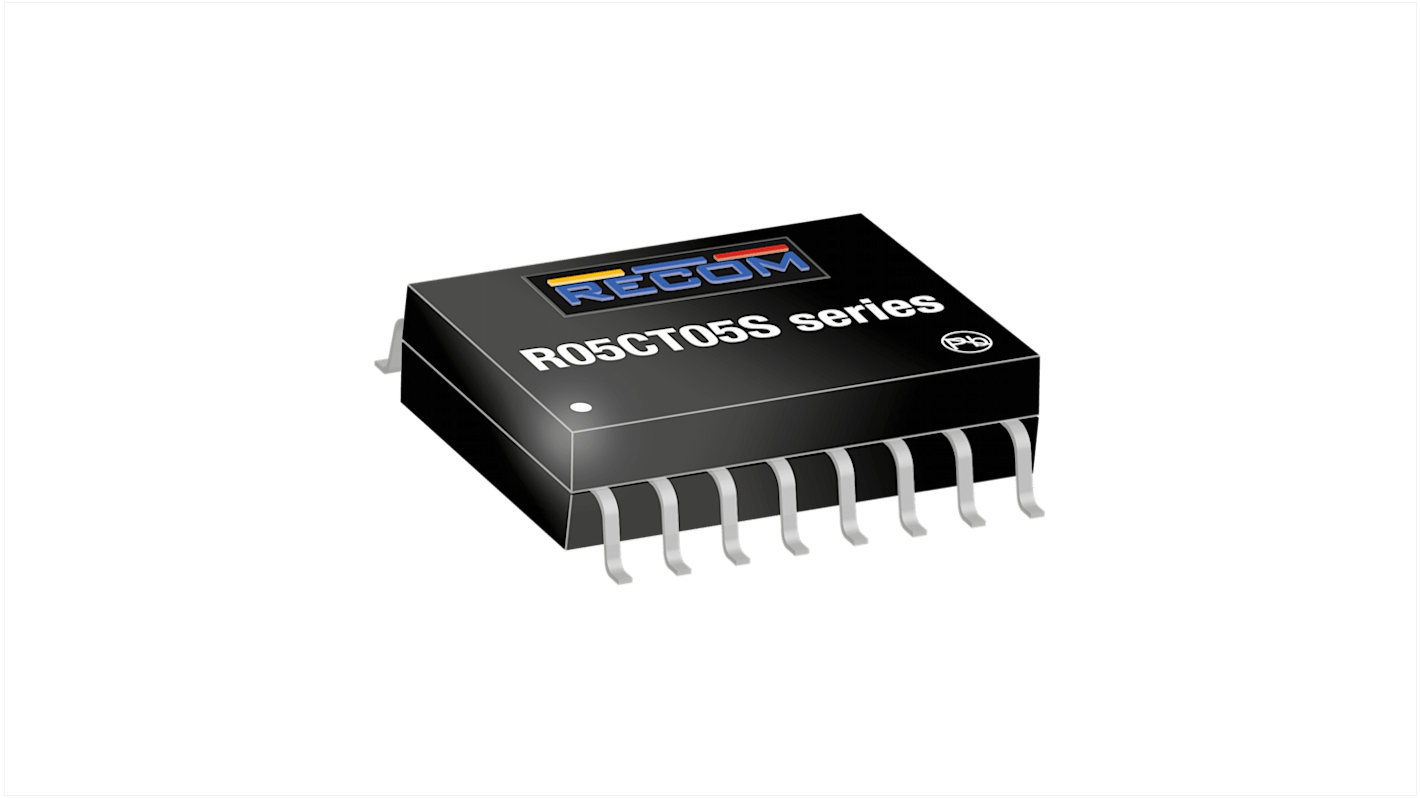

The Recom R05CT05S is a Low cost, low profile,500mW SMD isolated DC/DC single output converter ideal for applications. such as communication, current sensing, and medical applications which require robust isolation. It is a single solution with 5V input and a user-definable single, regulated 3.3V or 5V. output. There is no minimum load requirement. Standard isolation is 5kVAC/1min with a 2MOPP rating for medical applications. The operating temperature is from -40°C up to +140°C with derating.
It is a compact 10.3x7.5mm SMD package
It has 5kVAC reinforced isolation
It has 5V or 3.3V post-regulated, selectable outputs
It has low EMI emissions
Ultrawide temperature range (-40°C to +140°C)
It has low profile of 2.6mm
