TRACOPOWER TEP 60UIR DC/DC Converter, 5V dc/ 12 A, 75V dc Input, 9V Input 60 W, PCB, 75 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£124.62

(exc. VAT)

£149.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£124.62
5 - 9£120.89
10 - 24£117.14
25 - 49£112.16
50 +£107.17

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
210-2553
Distrelec Article No.:
302-24-811
Mfr. Part No.:
TEP 60-3611UIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

75V dc

Minimum Input Voltage

9V

Output Current 1

12A

Output Current 2

12A

Mount Type

PCB

Input Ratio

12:1

Number of Outputs

1

MTBF

738000h

Ripple and Noise

75mV Pk-Pk

Output Voltage Adjustment Range

10 %

Isolation Voltage

3kV

Number of Pins

10

Package Type

Quarter Brick

Maximum Output Power

60W

Depth

12.7mm

Standards/Approvals

No

Series

TEP 60UIR

Width

36.8mm

Weight

64g

Length

57.9mm

Better World Product

Yes

Better World Claim

Concentrated or Compact Solution

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

75°C

Efficiency

89%

RoHS Status: Exempt

COO (Country of Origin):
TW

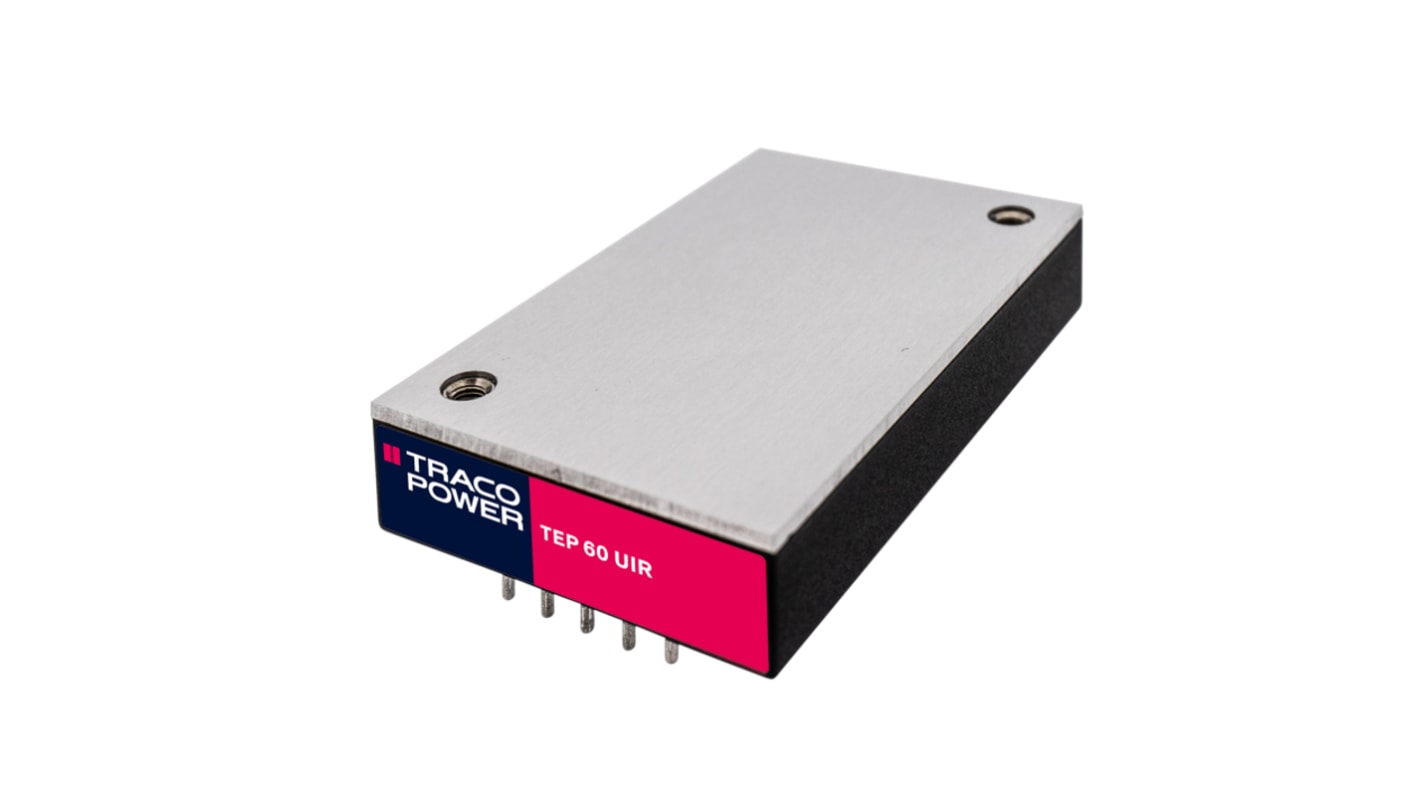

TRACOPOWER TEP 60UIR Series DC-DC Converter, 5V DC Output Voltage, 60W Power Rating - TEP 60-3611UIR


This DC-DC converter is designed for effective power conversion across a range of applications. It provides a 60W output with an input voltage range of 9V to 75V, offering the flexibility required for various electronic systems. With a stable 5V output, it is well-suited for sensitive electronic components in automation and industrial contexts.

Features & Benefits


• Ultra-wide input voltage range for various operational requirements

• High efficiency of up to 91% reduces energy waste

• Adjustable output voltage for tailored application needs

• I/O isolation of 3000 V AC for enhanced safety

• Compact quarter brick design maximises space in PCB layouts

• Excellent load regulation maintains stable performance under fluctuating conditions

Applications


• Suitable for railway requiring EN 50155 approval

• Ideal for automation systems needing dependable power supplies

• Utilised in electronics requiring stable low voltage output

What is the recommended fuse size for optimal performance?


The recommended input fuse size is 12A for 36V models and 8A for 110V models, ensuring suitable protection against overload.

How can the output voltage be adjusted?


Output voltage can be fine-tuned within a range of -20% to +10% using an external trim resistor for precise control based on system requirements.

Is it possible to operate this device in high-temperature environments?


Yes, it is designed to function effectively in temperatures from -40 to +75°C, making it suitable for varied application conditions.

What is the capacity for capacitive load?


This converter can accommodate a capacitive load of up to 24000μF for the 5V output models, ensuring compatibility with a broad range of capacitive applications.

How does the under-voltage lockout feature work?


The under-voltage lockout feature prevents the converter from operating below safe voltage levels, enhancing reliability and system protection.
