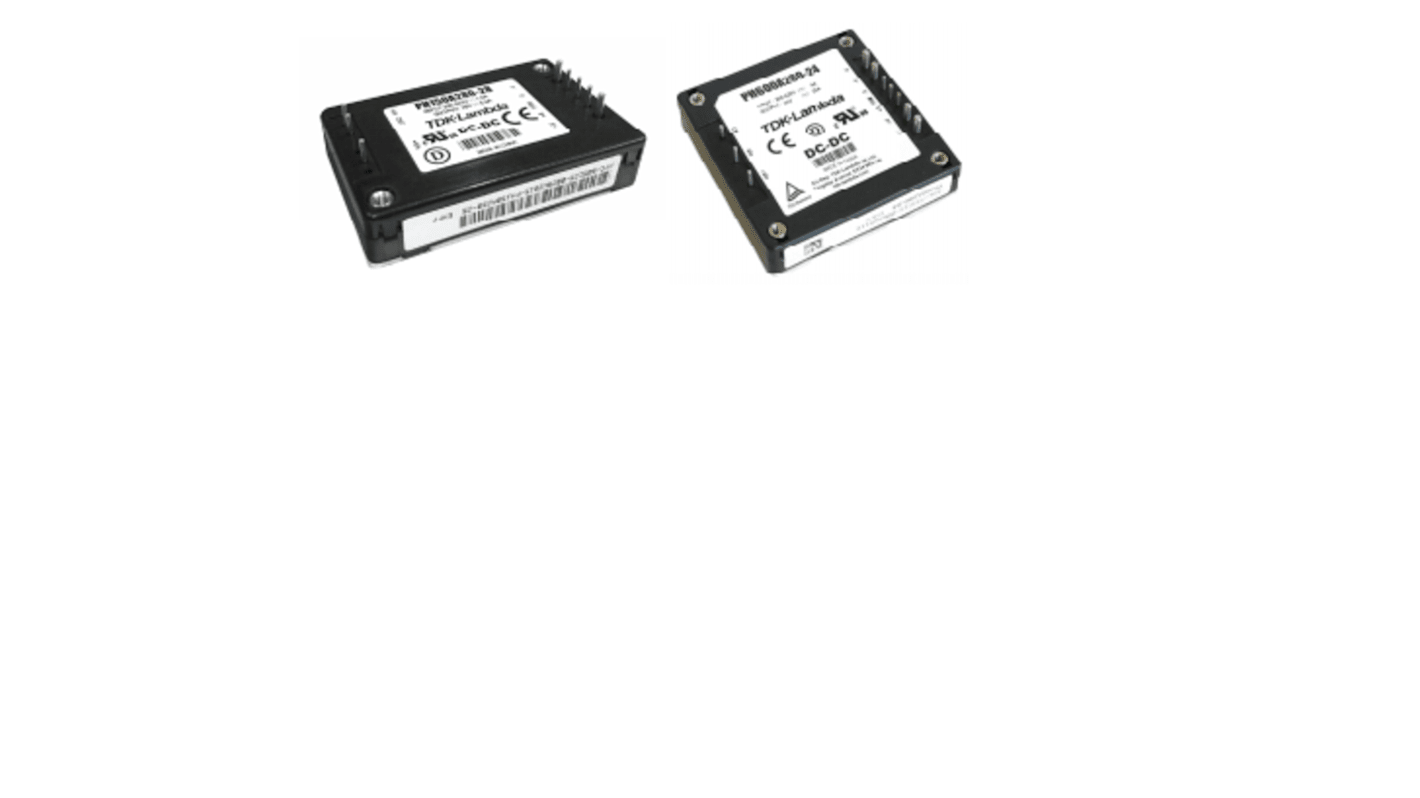

TDK-Lambda PH-A280 DC/DC Converter, 24V dc/ 25 A, 425V dc Input, 14.4V Input 600 W, PCB, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 210-1265
- Mfr. Part No.:
- PH600A280-24
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£306.17
(exc. VAT)
£367.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £306.17 |
| 5 - 9 | £296.99 |
| 10 - 24 | £287.81 |
| 25 - 49 | £278.61 |
| 50 + | £269.43 |
*price indicative
- RS Stock No.:
- 210-1265
- Mfr. Part No.:
- PH600A280-24
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 14.4V | |
| Maximum Input Voltage | 425V dc | |
| Output Current 1 | 25A | |
| Output Current 2 | 25A | |
| Mount Type | PCB | |
| MTBF | 2128235h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 240mV | |
| Output Voltage Adjustment Range | 14.4 to 28.8 V | |
| Isolation Voltage | 2.5kV | |
| Number of Pins | 10 | |
| Maximum Output Power | 600W | |
| Package Type | Half Brick | |
| Length | 61mm | |
| Depth | 12.7mm | |
| Series | PH-A280 | |
| Width | 57.9mm | |
| Standards/Approvals | IEC | |
| Weight | 55g | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 0.93% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 14.4V | ||
Maximum Input Voltage 425V dc | ||
Output Current 1 25A | ||
Output Current 2 25A | ||
Mount Type PCB | ||
MTBF 2128235h | ||
Number of Outputs 1 | ||
Ripple and Noise 240mV | ||
Output Voltage Adjustment Range 14.4 to 28.8 V | ||
Isolation Voltage 2.5kV | ||
Number of Pins 10 | ||
Maximum Output Power 600W | ||
Package Type Half Brick | ||
Length 61mm | ||
Depth 12.7mm | ||
Series PH-A280 | ||
Width 57.9mm | ||
Standards/Approvals IEC | ||
Weight 55g | ||
Maximum Operating Temperature 85°C | ||
Efficiency 0.93% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
The TDK-Lambda, PH-A280 series of isolated DC-DC converters operate from a wide range 200 to 425Vdc input and are available in multiple power levels from 50 to 600W. Output voltages cover 3.3V to 48V and can be adjusted using the trim terminal by up to -60% to +20%. All models feature remote sense and remote on/off and can be conduction cooled to a cold plate or mounted with an optional heatsink. The 300 and 600W models are certifi ed to EN 62477-1 (OVC III) for use in industrial robots connected to an incoming distribution panel, avoiding the requirement for an isolation transformer. These effi cient converters are also well suited for HVDC (High Voltage Direct Current) power transmission systems and renewable energy applications.
Wide Range 200 to 425Vdc Input
Baseplate Cooled
-40 to 100oC Baseplate Temperature
Certifi ed to IEC/EN62477-1 (OVC III)
Up to 93% Effi cient
