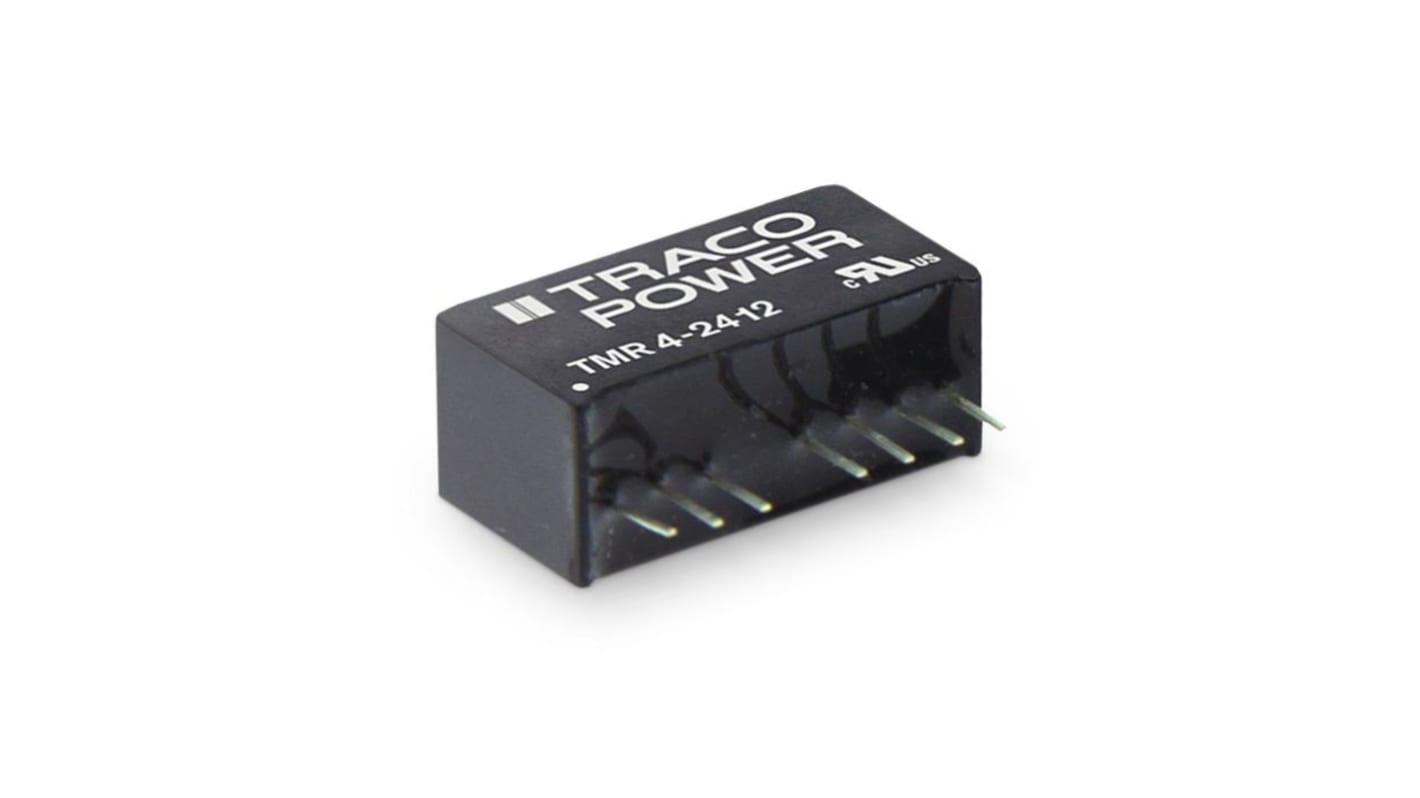

TRACOPOWER TMR 4 DC/DC Converter, 15V dc/ 133 mA, 18V dc Input, 9V Input 4 W, Through Hole, 70 °C Max Temp -40 °C Min
- RS Stock No.:
- 209-9803
- Distrelec Article No.:
- 302-24-919
- Mfr. Part No.:
- TMR 4-1223
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£12.25
(exc. VAT)
£14.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 16 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.25 |
*price indicative
- RS Stock No.:
- 209-9803
- Distrelec Article No.:
- 302-24-919
- Mfr. Part No.:
- TMR 4-1223
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Maximum Input Voltage | 18V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 133mA | |
| Output Current 2 | 133mA | |
| Output Voltage 2 | -15V dc | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| Number of Outputs | 2 | |
| MTBF | 3390000h | |
| Ripple and Noise | 80mV Pk-Pk | |
| Output Voltage Adjustment Range | 15 V dc | |
| Number of Pins | 7 | |
| Isolation Voltage | 1.6kV | |
| Maximum Output Power | 4W | |
| Package Type | SIP | |
| Weight | 4.8g | |
| Depth | 11.2mm | |
| Width | 9.3mm | |
| Series | TMR 4 | |
| Standards/Approvals | RoHS | |
| Length | 21.8mm | |
| Efficiency | 86% | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Maximum Input Voltage 18V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 133mA | ||
Output Current 2 133mA | ||
Output Voltage 2 -15V dc | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
Number of Outputs 2 | ||
MTBF 3390000h | ||
Ripple and Noise 80mV Pk-Pk | ||
Output Voltage Adjustment Range 15 V dc | ||
Number of Pins 7 | ||
Isolation Voltage 1.6kV | ||
Maximum Output Power 4W | ||
Package Type SIP | ||
Weight 4.8g | ||
Depth 11.2mm | ||
Width 9.3mm | ||
Series TMR 4 | ||
Standards/Approvals RoHS | ||
Length 21.8mm | ||
Efficiency 86% | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TMR 4 Series DC-DC Converter, 15V DC Output Voltage, 4W Power Rating - TMR 4-1223
This DC-DC converter efficiently converts input voltage within 9-18V DC to a stable output of 15V DC. It serves users across various fields, including automation, electronics, and electrical engineering. Designed for versatility, its compact form factor and through-hole mounting options ensure dependable performance in both commercial and medical environments.
Features & Benefits
• Isolated design for enhanced safety and reliability in critical Applications
• Outputs 133mA, accommodating diverse load requirements
• 86% efficiency reduces energy loss during operation
• Temperature operating range: -40 to +85°C for broad applicability
• Compliance with IEC/EN 62368-1 standards assures consistent performance
Applications
• Suitable for medical equipment power supplies prioritising safety
• Ideal for electronic devices needing consistent voltage regulation
• Employed in automated systems requiring stable power inputs
• Utilised in instrumentation demanding precise voltage
How does the input voltage range impact the converter's performance?
The input voltage range directly influences the converter's ability to maintain a stable output. Staying within specified limits optimises performance and extends product life.
What is the recommended installation method for this device?
Through-hole mounting is recommended to ensure a secure fit and simplify connections to circuit boards.
Is this device suitable for outdoor applications?
While operable within a wide temperature range, additional protective measures should be implemented for outdoor use to safeguard against environmental exposure.
Can the output voltage be adjusted?
This model features a fixed output voltage of 15V DC, with no capability for adjustments.
What standards does this product comply with for reliability?
This converter adheres to IEC/EN 62368-1 standards, indicating thorough testing for safety and performance.
