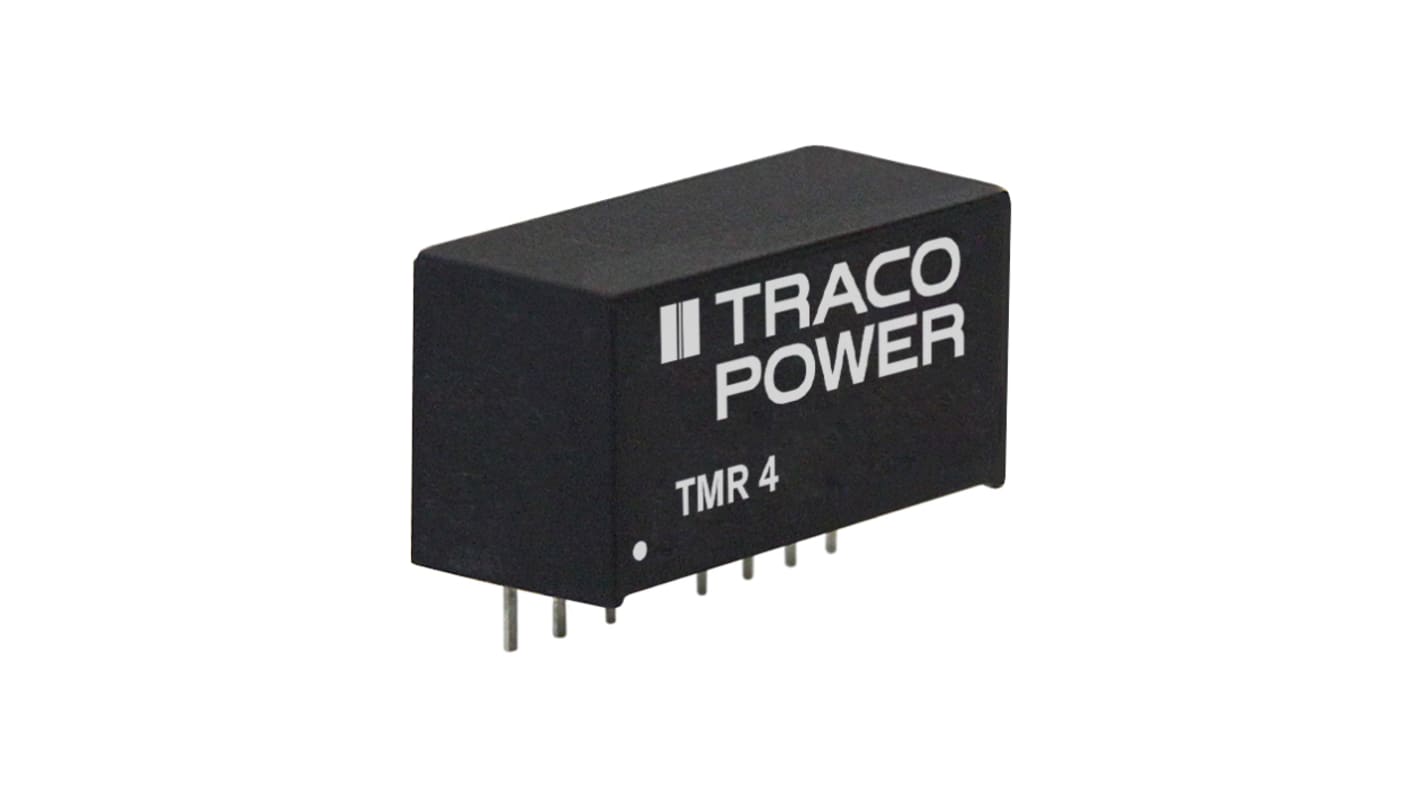

TRACOPOWER TMR DC/DC Converter, 5V dc/ 800 mA, 18V dc Input, 9V Input 4 W, Through Hole, 70 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 209-9790
- Mfr. Part No.:
- TMR 4-1211
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 10 units)*
£127.06
(exc. VAT)
£152.47
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £127.06 | £12.706 |
| 5 - 9 | £123.24 | £12.324 |
| 10 - 24 | £119.43 | £11.943 |
| 25 - 49 | £114.36 | £11.436 |
| 50 + | £109.27 | £10.927 |
*price indicative
- RS Stock No.:
- 209-9790
- Mfr. Part No.:
- TMR 4-1211
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 18V dc | |
| Output Current 1 | 800mA | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| Number of Outputs | 1 | |
| MTBF | 3390000h | |
| Output Voltage Adjustment Range | 5 V dc | |
| Ripple and Noise | 80mV Pk-Pk | |
| Number of Pins | 7 | |
| Isolation Voltage | 1.6kV | |
| Maximum Output Power | 4W | |
| Package Type | SIP | |
| Depth | 11.2mm | |
| Series | TMR | |
| Width | 9.3mm | |
| Standards/Approvals | RoHS | |
| Weight | 4.8g | |
| Length | 21.8mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 82% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 18V dc | ||
Output Current 1 800mA | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
Number of Outputs 1 | ||
MTBF 3390000h | ||
Output Voltage Adjustment Range 5 V dc | ||
Ripple and Noise 80mV Pk-Pk | ||
Number of Pins 7 | ||
Isolation Voltage 1.6kV | ||
Maximum Output Power 4W | ||
Package Type SIP | ||
Depth 11.2mm | ||
Series TMR | ||
Width 9.3mm | ||
Standards/Approvals RoHS | ||
Weight 4.8g | ||
Length 21.8mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 82% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TMR Series DC-DC Converter, 5V DC Output Voltage, 4W Power Rating - TMR 4-1211
This isolated DC-DC converter offers a stable output voltage of 5V DC sourced from an input voltage range of 9 to 18V DC. With a power rating of 4W, it is suitable for various applications within the automation and electronics sectors, ensuring effective performance where precision is crucial.
Features & Benefits
• Compact SIP-8 package maximises space in electronic designs
• High efficiency of 82% reduces energy consumption
• Wide input voltage range supports compatibility with different systems
• I/O isolation voltage of 1.6kV enhances safety in sensitive applications
Applications
• Powering medical devices and equipment
• Utilised in industrial automation systems
• Employed within PCB mount power supplies
• Suitable for telecommunications equipment that requires consistent voltage
How does the output voltage remain regulated during operation?
It features fully regulated outputs that provide a stable voltage despite variations in input voltage or load conditions.
Can it be used in high-temperature environments?
Yes, it operates effectively in temperatures ranging from -40 to +85°C without derating, making it appropriate for industrial applications.
Is any additional protection required for installation?
While it includes built-in overload and short-circuit protection, evaluating the need for an external fuse may be necessary based on specific installation requirements.
How do I control the power supply remotely?
The integrated remote On/Off function allows for easy voltage-controlled operation, facilitating convenient remote control of the power supply.
