TRACOPOWER TEA 1 DC/DC Converter, 5V dc/ 200 mA, 5.5V dc Input, 4.5V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 204-7571
- Mfr. Part No.:
- TEA 1-0505E
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£14.62
(exc. VAT)
£17.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 12 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £14.62 | £1.462 |
| 5 - 9 | £14.18 | £1.418 |
| 10 - 24 | £13.75 | £1.375 |
| 25 - 49 | £13.17 | £1.317 |
| 50 + | £12.57 | £1.257 |
*price indicative
- RS Stock No.:
- 204-7571
- Mfr. Part No.:
- TEA 1-0505E
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 5.5V dc | |
| Output Current 1 | 200mA | |
| Mount Type | PCB | |
| Number of Outputs | 1 | |
| MTBF | 2000000h | |
| Output Voltage Adjustment Range | 3 % | |
| Ripple and Noise | 100mV Pk-Pk | |
| Number of Pins | 4 | |
| Isolation Voltage | 1.5kV | |
| Package Type | SIP | |
| Maximum Output Power | 1W | |
| Depth | 10mm | |
| Series | TEA 1 | |
| Length | 19.5mm | |
| Weight | 2g | |
| Width | 6mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 0.78% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 5.5V dc | ||
Output Current 1 200mA | ||
Mount Type PCB | ||
Number of Outputs 1 | ||
MTBF 2000000h | ||
Output Voltage Adjustment Range 3 % | ||
Ripple and Noise 100mV Pk-Pk | ||
Number of Pins 4 | ||
Isolation Voltage 1.5kV | ||
Package Type SIP | ||
Maximum Output Power 1W | ||
Depth 10mm | ||
Series TEA 1 | ||
Length 19.5mm | ||
Weight 2g | ||
Width 6mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 85°C | ||
Efficiency 0.78% | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt

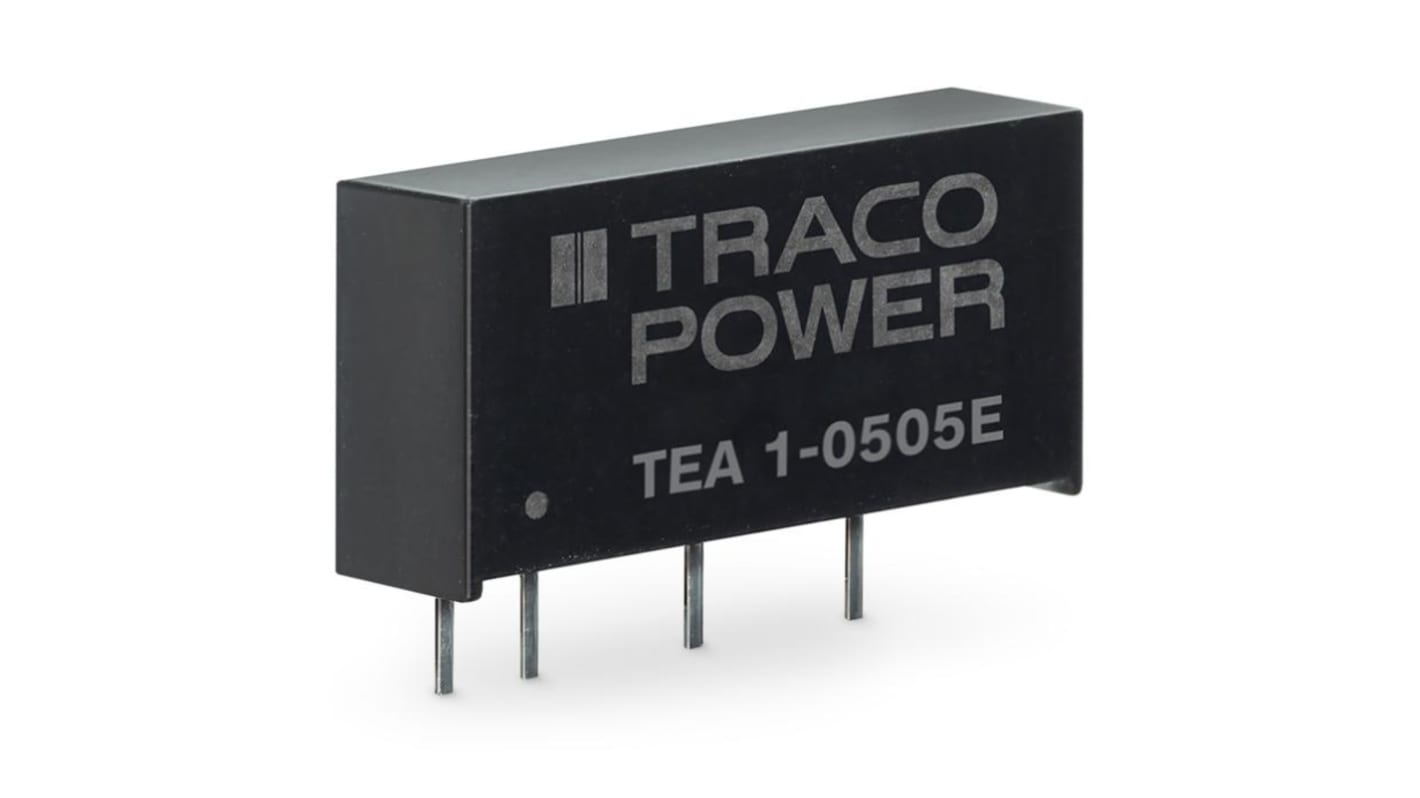

TRACOPOWER TEA 1 Series DC-DC Converter, 4.5 to 5.5V DC Input Voltage Range, 1W Power Rating - TEA 1-0505E
This DC-DC converter is a power solution designed to deliver 5V dc output with a maximum current of 200mA. It is suitable for applications requiring an efficient and compact power source, featuring a PCB mount design that facilitates integration into various electronic setups. The device operates effectively within input voltage limits of 4.5V to 5.5V dc and includes features that ensure stable operation across temperatures from -40 to +95°C.
Features & Benefits
• High efficiency rating of up to 78% aids power utilisation
• Unregulated outputs allow flexibility in varying load conditions
• Compact SIP-7 package simplifies PCB integration
• Short circuit protection supports long-term reliability
Applications
• Used in automation and control systems
• Utilised in battery-powered applications requiring efficiency
Is it safe for use in sensitive electronics?
It has an isolation voltage of 1.5kV, ensuring safety.
