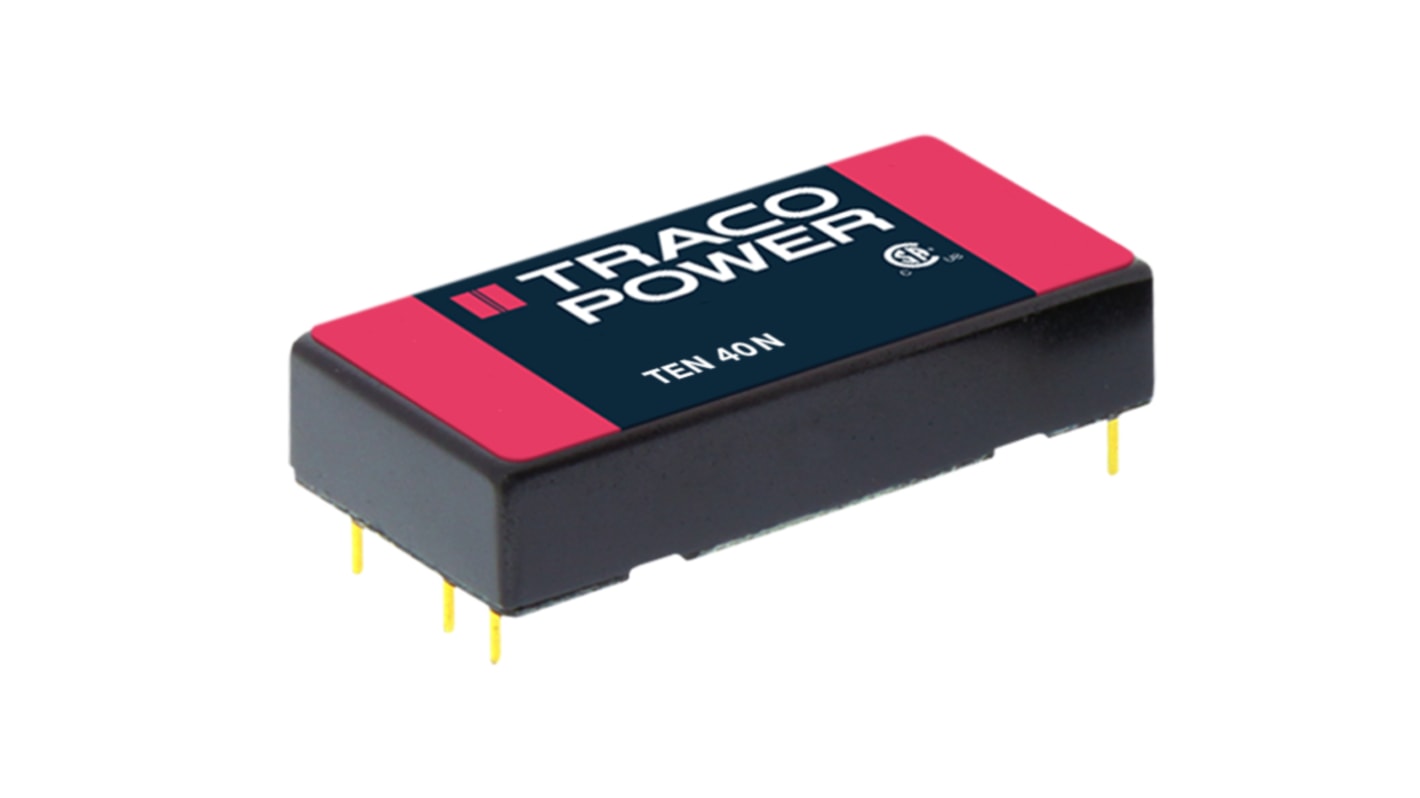

TRACOPOWER TEN 40 DC/DC Converter, 24V dc/ 1670 mA, 75V dc Input, 36V Input 40 W, PCB, 80 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 200-8519
- Mfr. Part No.:
- TEN 40-4815N
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£614.42
(exc. VAT)
£737.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £614.42 | £61.442 |
| 5 - 9 | £595.99 | £59.599 |
| 10 - 24 | £577.56 | £57.756 |
| 25 - 49 | £552.98 | £55.298 |
| 50 + | £528.40 | £52.84 |
*price indicative
- RS Stock No.:
- 200-8519
- Mfr. Part No.:
- TEN 40-4815N
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 75V dc | |
| Minimum Input Voltage | 36V | |
| Output Current 1 | 1670mA | |
| Mount Type | PCB | |
| Input Ratio | 2:1 | |
| Number of Outputs | 5 | |
| MTBF | 328000h | |
| Ripple and Noise | 150mV Pk-Pk | |
| Isolation Voltage | 1.5kV dc | |
| Number of Pins | 6 | |
| Package Type | DIP | |
| Maximum Output Power | 40W | |
| Depth | 10.2mm | |
| Series | TEN 40 | |
| Width | 50.8mm | |
| Weight | 30g | |
| Length | 25.4mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 80°C | |
| Efficiency | 0.91% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 75V dc | ||
Minimum Input Voltage 36V | ||
Output Current 1 1670mA | ||
Mount Type PCB | ||
Input Ratio 2:1 | ||
Number of Outputs 5 | ||
MTBF 328000h | ||
Ripple and Noise 150mV Pk-Pk | ||
Isolation Voltage 1.5kV dc | ||
Number of Pins 6 | ||
Package Type DIP | ||
Maximum Output Power 40W | ||
Depth 10.2mm | ||
Series TEN 40 | ||
Width 50.8mm | ||
Weight 30g | ||
Length 25.4mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 80°C | ||
Efficiency 0.91% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The Traco TEN 40-4815N is a 40W isolated high performance dc-dc converter module with have a wide 2:1 input voltage range and a tight output voltage regulation. The output voltage is adjustable by external resistor. Remote On/Off and protection against overpower and overvoltage are standard features of this converter. Ideal for use in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.
Excellent efficiency up to 92%
Operating temperature range -40°C to +75°C
Adjustable output voltage
Provides Remote On/Off functionality
