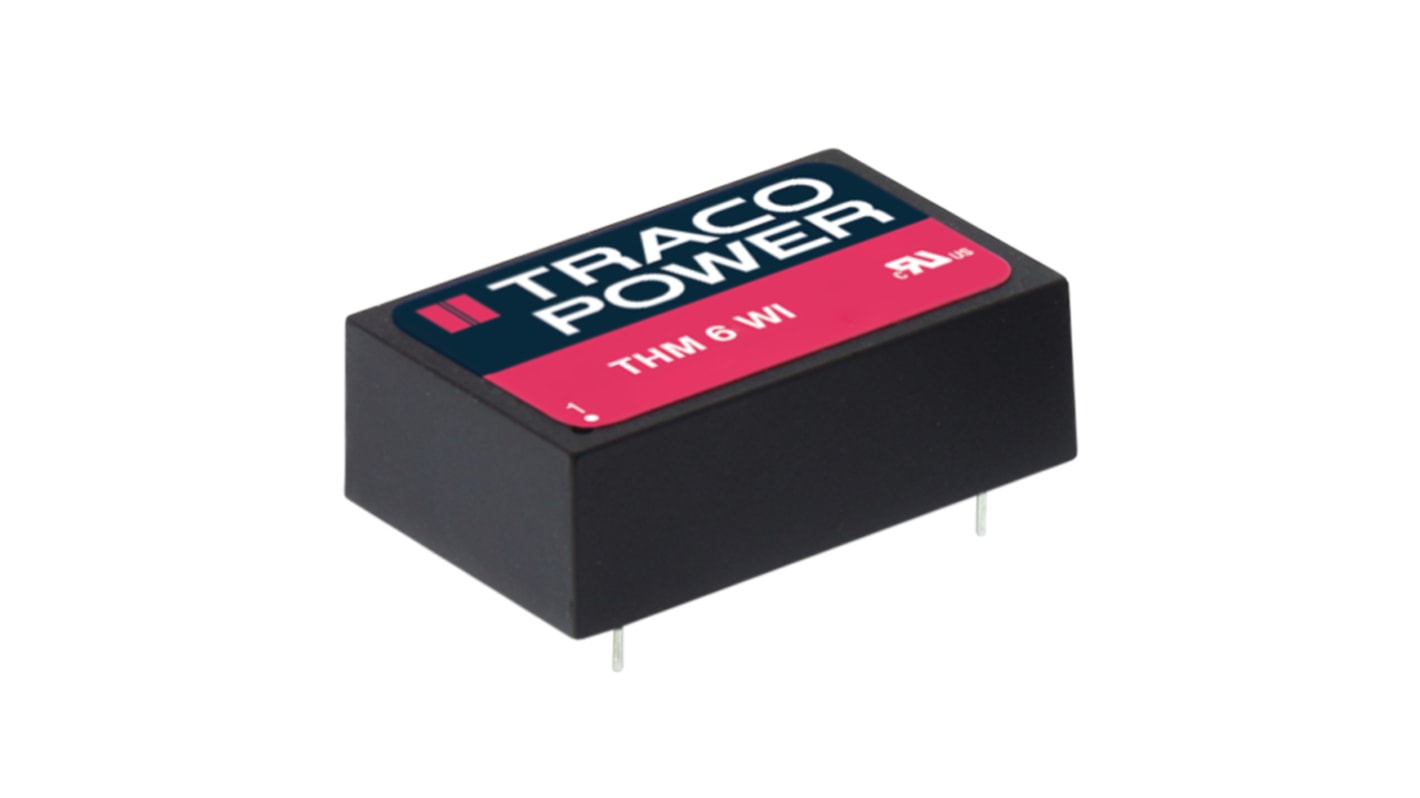

TRACOPOWER THM 6WI DC/DC Converter, 12V dc/ 250 mA, 36V dc Input, 9V Input 6 W, PCB, 90 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£483.74

(exc. VAT)

£580.49

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£483.74£48.374
5 - 9£469.24£46.924
10 - 24£454.72£45.472
25 - 49£435.37£43.537
50 +£416.02£41.602

*price indicative

RS Stock No.:
200-8459
Mfr. Part No.:
THM 6-2422WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

250mA

Mount Type

PCB

MTBF

4700000h

Number of Outputs

2

Ripple and Noise

40mV Pk-Pk

Number of Pins

8

Isolation Voltage

5kV dc

Package Type

DIP-24

Maximum Output Power

6W

Length

31.8mm

Standards/Approvals

No

Series

THM 6WI

Width

20.3mm

Weight

14g

Depth

10.2mm

Maximum Operating Temperature

90°C

Minimum Operating Temperature

-40°C

Efficiency

0.89%

COO (Country of Origin):
TW
The Traco THM 6-2422WI is a medical 6 Watt DC/DC converter with ultra-wide 4:1 input voltage range. It provides a very low leakage current of less than 2 μA. It constitute a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.

Available in compact DIP-24 plastic case

Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP

Risk management process according to ISO 14971 including risk management file

Acceptance criteria for electronic assemblies according to IPC-A-610 Level 3

Operating up to 5000m altitude
