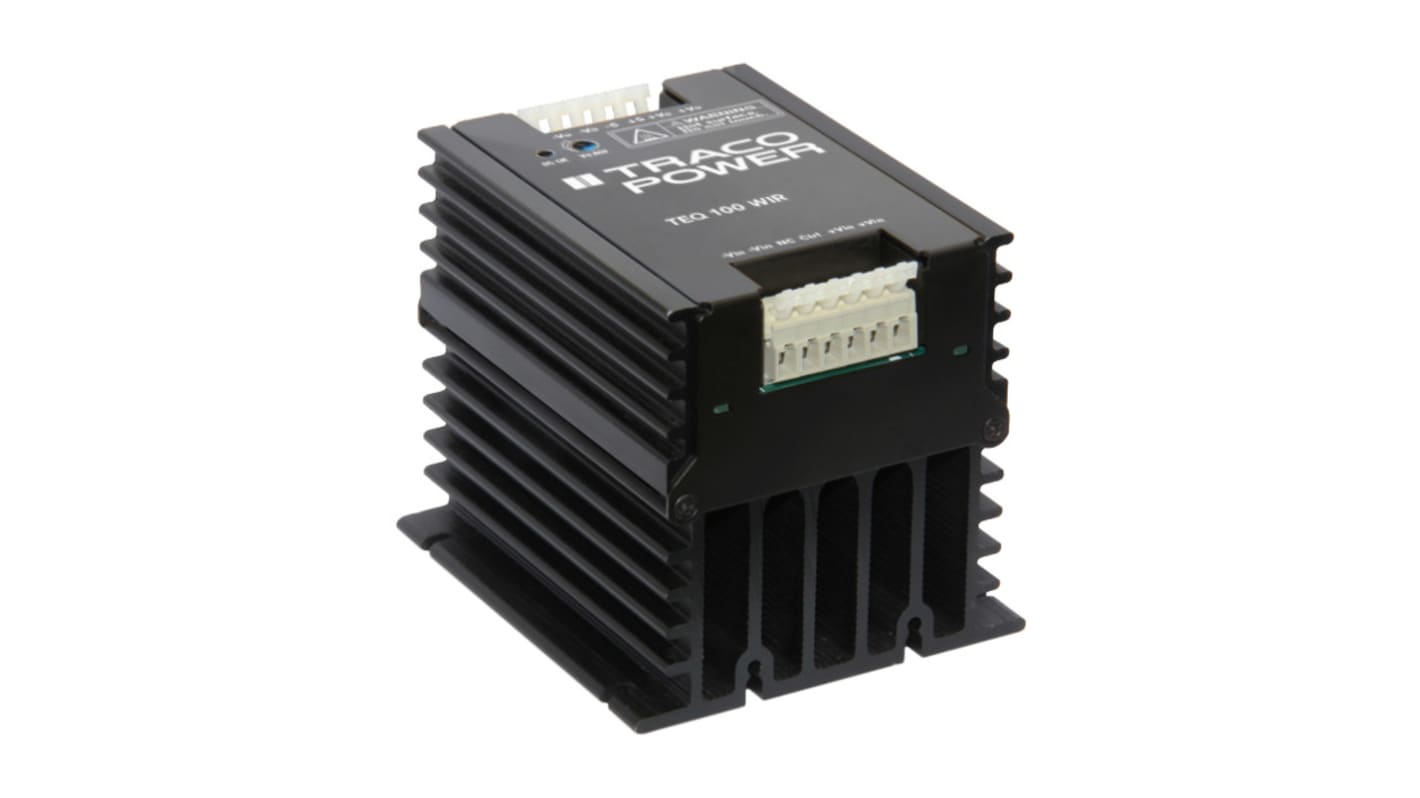

TRACOPOWER TEQ 100 DC/DC Converter, 9.6V/, 160V Input 8400 mA, 43V Input, 95 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 198-4641
- Mfr. Part No.:
- TEQ 100-7212WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£353.38
(exc. VAT)
£424.06
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £353.38 |
| 5 - 9 | £342.77 |
| 10 - 24 | £332.18 |
| 25 - 49 | £318.05 |
| 50 + | £303.90 |
*price indicative
- RS Stock No.:
- 198-4641
- Mfr. Part No.:
- TEQ 100-7212WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 9.6V | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 160V | |
| Minimum Input Voltage | 43V | |
| Output Current 1 | 8400mA | |
| Output Voltage 2 | 13.2V | |
| MTBF | 711000h | |
| Number of Outputs | 5 | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | -20 to 10 % | |
| Input Ratio | 4:1 | |
| Isolation Voltage | 2.25kV | |
| Maximum Output Power | 100W | |
| Length | 103.2mm | |
| Depth | 87.6mm | |
| Series | TEQ 100 | |
| Width | 88.9mm | |
| Standards/Approvals | No | |
| Weight | 800g | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 95°C | |
| Efficiency | 89% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 9.6V | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 160V | ||
Minimum Input Voltage 43V | ||
Output Current 1 8400mA | ||
Output Voltage 2 13.2V | ||
MTBF 711000h | ||
Number of Outputs 5 | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range -20 to 10 % | ||
Input Ratio 4:1 | ||
Isolation Voltage 2.25kV | ||
Maximum Output Power 100W | ||
Length 103.2mm | ||
Depth 87.6mm | ||
Series TEQ 100 | ||
Width 88.9mm | ||
Standards/Approvals No | ||
Weight 800g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 95°C | ||
Efficiency 89% | ||
- COO (Country of Origin):
- TW
The Traco 100WIR series, is a family of isolated high performance DC/DC converter modules with ultra-wide 4:1 input voltage ranges which come in a rugged sealed metal case.
Operating temperature -40°C to +85°C without derating
Increased shock & vibration resistance
Ultra wide 4:1 input voltage range
EN 50155 approval for railway applications
Excellent efficiency up to 90%
