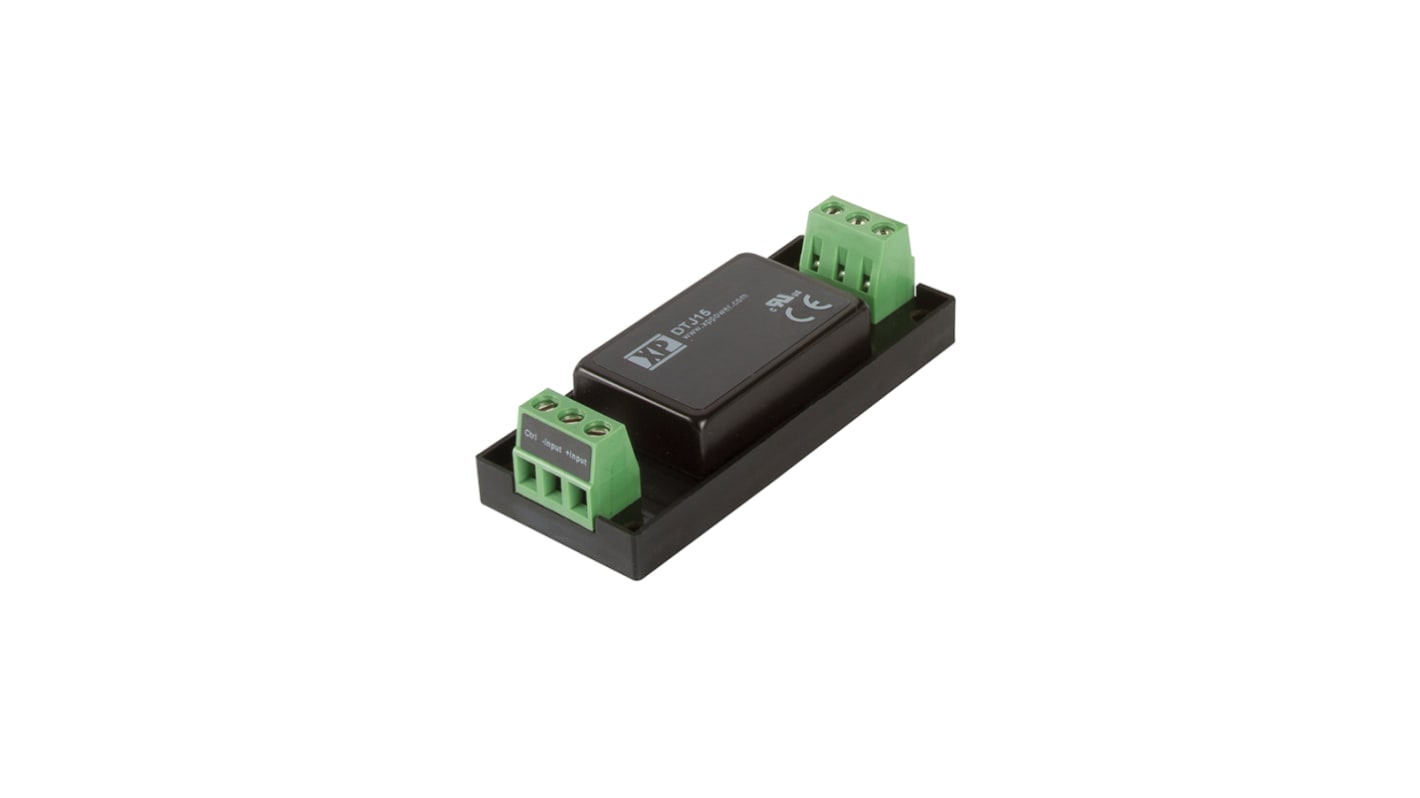

XP Power DTJ15 DC/DC Converter, 12 V dc/ 1.25 A, 36V dc Input, 9V Input 15 W, Chassis, 100 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 193-5869
- Distrelec Article No.:
- 301-83-408
- Mfr. Part No.:
- DTJ1524S12
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£34.83
(exc. VAT)
£41.80
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £34.83 |
| 5 - 9 | £33.78 |
| 10 - 24 | £32.74 |
| 25 - 49 | £31.69 |
| 50 + | £30.66 |
*price indicative
- RS Stock No.:
- 193-5869
- Distrelec Article No.:
- 301-83-408
- Mfr. Part No.:
- DTJ1524S12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage 1 | 12 V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 1.25A | |
| Mount Type | Chassis | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 4mH | |
| Ripple and Noise | 60mV Pk-Pk | |
| Isolation Voltage | 3kV dc | |
| Number of Pins | 6 | |
| Maximum Output Power | 15W | |
| Package Type | Encapsulated | |
| Standards/Approvals | No | |
| Weight | 45g | |
| Width | 31.4 mm | |
| Series | DTJ15 | |
| Length | 76.2mm | |
| Depth | 19.4mm | |
| Maximum Operating Temperature | 100°C | |
| Efficiency | 87% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 1 12 V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 1.25A | ||
Mount Type Chassis | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 4mH | ||
Ripple and Noise 60mV Pk-Pk | ||
Isolation Voltage 3kV dc | ||
Number of Pins 6 | ||
Maximum Output Power 15W | ||
Package Type Encapsulated | ||
Standards/Approvals No | ||
Weight 45g | ||
Width 31.4 mm | ||
Series DTJ15 | ||
Length 76.2mm | ||
Depth 19.4mm | ||
Maximum Operating Temperature 100°C | ||
Efficiency 87% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The DTJ series of chassis mount DC-DC power supplies allows for easy and convenient integration into a variety of industrial and commercial applications. The DC-DC power solution is constructed using copper case and includes features such as short circuit protection, input reverse polarity protection and soft start.
Regulated single & dual outputs from 3.3V to 48VDC
Wide 4:1 input range nominal 12V, 24V, 48VDC
Chassis mount with optional DIN rail clip
Remote on/off & voltage trim function
3kVDC isolation
-40 °C to +105 °C operating temperature
Full power to 80°C
MTBF >4Mhrs (MIL-HBDK-27F , +25°C GB)
3 year warranty
