TRACOPOWER TSR 1-4865WI DC/DC Converter, 6.5V dc/, 72V dc Input 1 A, 9V dc Input, Through Hole, 80 °C Max Temp -40 °C
- RS Stock No.:
- 193-2051
- Distrelec Article No.:
- 301-60-495
- Mfr. Part No.:
- TSR 1-4865WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£15.25
(exc. VAT)
£18.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.25 |
| 5 - 9 | £14.79 |
| 10 - 24 | £14.33 |
| 25 - 49 | £13.73 |
| 50 + | £13.11 |
*price indicative
- RS Stock No.:
- 193-2051
- Distrelec Article No.:
- 301-60-495
- Mfr. Part No.:
- TSR 1-4865WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 6.5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 72V dc | |
| Minimum Input Voltage | 9V dc | |
| Mount Type | Through Hole | |
| MTBF | 8215000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 50mV Pk-Pk | |
| Output Current 1 | 1A | |
| Package Type | SIP | |
| Length | 12mm | |
| Depth | 17.5mm | |
| Series | TSR 1-4865WI | |
| Weight | 5.5g | |
| Standards/Approvals | RoHS | |
| Width | 8.5mm | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 0.88% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 6.5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 72V dc | ||
Minimum Input Voltage 9V dc | ||
Mount Type Through Hole | ||
MTBF 8215000h | ||
Number of Outputs 1 | ||
Ripple and Noise 50mV Pk-Pk | ||
Output Current 1 1A | ||
Package Type SIP | ||
Length 12mm | ||
Depth 17.5mm | ||
Series TSR 1-4865WI | ||
Weight 5.5g | ||
Standards/Approvals RoHS | ||
Width 8.5mm | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 0.88% | ||

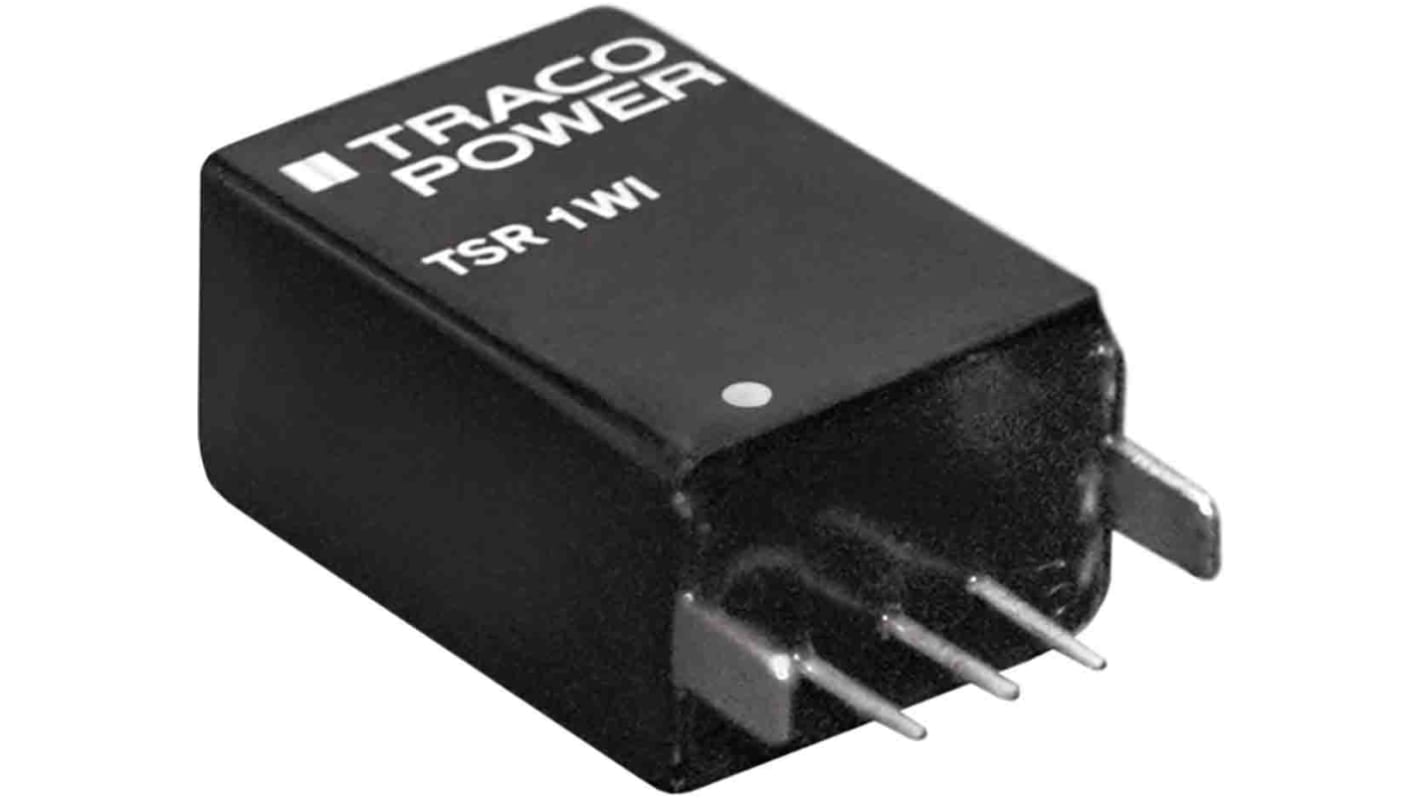

The Tracopower TSR 1WI is a non-isolated POL converter series with an ultra wide 8:1 input voltage range which comes in a standard SIP-3 package. Covering the majority of standard bus- and battery voltages this POL converter is a versatile solution for many applications in distributed power systems where different input voltages have to be handled. With 0.6A max. output current and standard features such as low standby current, precise regulation and protection against short circuit, overvoltage and overload the TSR 1WI is suitable for many battery and distributed power applications.
Up to 93% efficiency - No heatsink required
Pin compatible with LMxx linear regulators (SIP-3)
Operating temperature range: -40 to +80°C
Low standby current
Excellent line/load regulation
Protection against short circuit, overvoltage and over temperature
3-year product warranty
