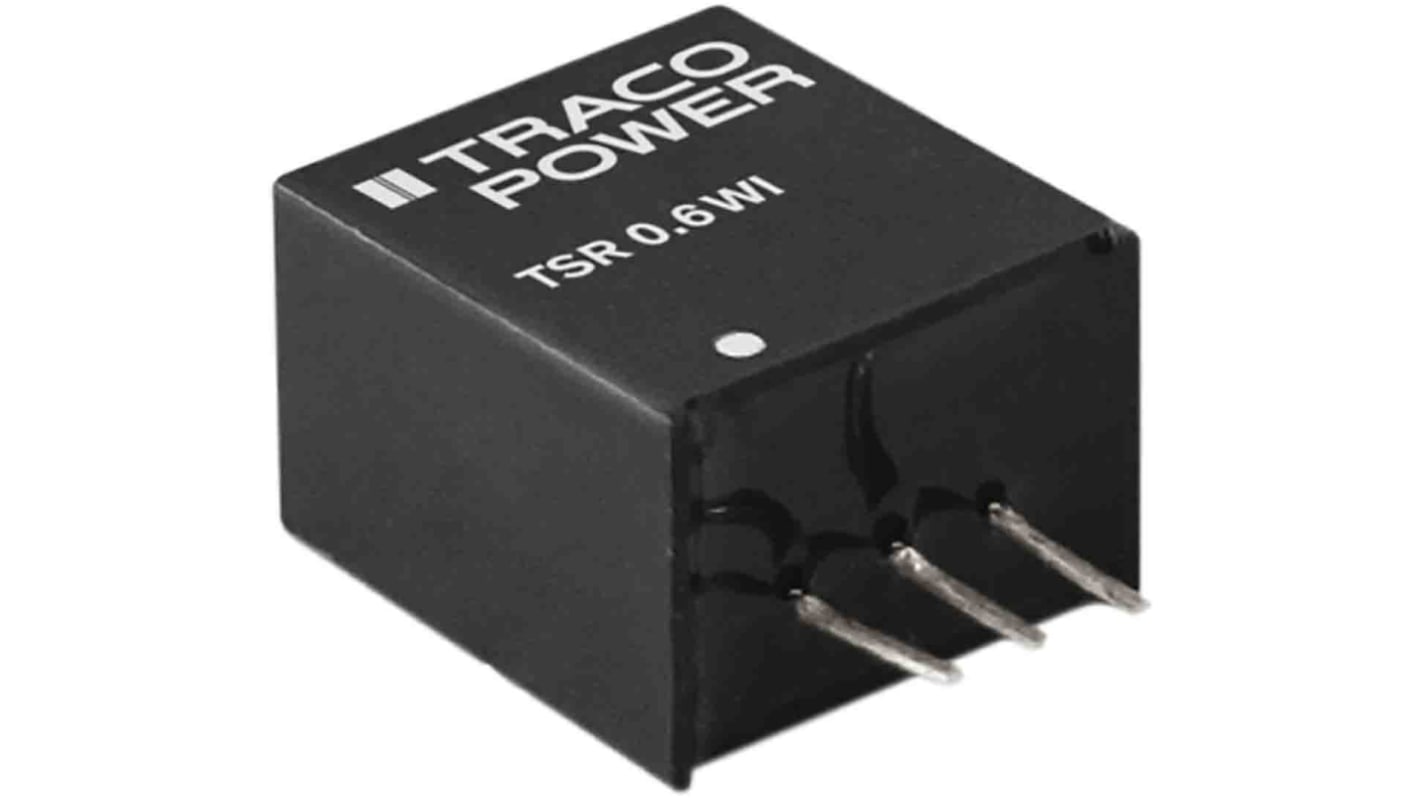

TRACOPOWER TSR 0.6-4890WI DC-DC Converter, 9V dc/ 600mA Output, 14 → 72 V dc Input, Through Hole, +85°C Max Temp
- RS Stock No.:
- 193-2038
- Mfr. Part No.:
- TSR 0.6-4890WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£9.03
(exc. VAT)
£10.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.03 |
5 - 9 | £8.75 |
10 - 24 | £8.49 |
25 - 49 | £8.13 |
50 + | £7.76 |
*price indicative
- RS Stock No.:
- 193-2038
- Mfr. Part No.:
- TSR 0.6-4890WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 9V dc | |
Input Voltage Range | 14 → 72 V dc | |
Input Voltage Nominal | 14 V dc | |
Output Current | 600mA | |
Mounting Type | Through Hole | |
Isolated | No | |
Number of Outputs | 1 | |
Package | SIP | |
Depth | 13.4mm | |
Width | 8.6mm | |
Length | 12mm | |
Series | TSR 0.6-4890WI | |
Load Regulation | 0.006 | |
Minimum Temperature | -40°C | |
Efficiency | 0.92 | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 9V dc | ||
Input Voltage Range 14 → 72 V dc | ||
Input Voltage Nominal 14 V dc | ||
Output Current 600mA | ||
Mounting Type Through Hole | ||
Isolated No | ||
Number of Outputs 1 | ||
Package SIP | ||
Depth 13.4mm | ||
Width 8.6mm | ||
Length 12mm | ||
Series TSR 0.6-4890WI | ||
Load Regulation 0.006 | ||
Minimum Temperature -40°C | ||
Efficiency 0.92 | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER TSR 0.6-4890WI Series DC-DC Converter, 9V DC Output Voltage, 600mA Output Current - TSR 0.6-4890WI
This DC-DC converter is specifically designed for efficient power conversion. It operates within an input voltage range of 14-72V, delivering a nominal output voltage of 9V DC with a maximum output current of 600mA. Compactly designed in a SIP package, this Through Hole DC-DC converter provides a reliable solution for various electronic applications.
Features & Benefits
• Ultra-wide input voltage range of 14-72V for versatile applications
• High efficiency of up to 92%, reducing power loss
• Operating temperature range from -40 to +85°C, ensuring reliability
• Low load regulation, ensuring stable voltage output
• Protection against short circuits, enhancing safety
• Easy mounting with Through Hole design, saving space
• High efficiency of up to 92%, reducing power loss
• Operating temperature range from -40 to +85°C, ensuring reliability
• Low load regulation, ensuring stable voltage output
• Protection against short circuits, enhancing safety
• Easy mounting with Through Hole design, saving space
Applications
• Used for powering sensors in distributed power systems
• Suitable for driving low power devices needing stable 9V DC
• Ideal for automation systems where varied input voltages are present
• Utilised in battery-operated requiring efficient regulation
• Suitable for driving low power devices needing stable 9V DC
• Ideal for automation systems where varied input voltages are present
• Utilised in battery-operated requiring efficient regulation
What types of devices can benefit from the high efficiency of this converter?
This converter is suitable for electronic devices that require reliable 9V power with reduced heat generation, making it ideal for compact systems operating under varying loads.
How does the design of this product support easy integration into existing systems?
The SIP package and Through Hole mounting design allow for straightforward installation on PCBs, enabling quick integration with minimal modifications needed.
Can it handle fluctuating input voltages effectively?
Yes, the ultra-wide input voltage range of 14-72V ensures stable operation despite fluctuations, making it a dependable choice for dynamic voltage conditions.
