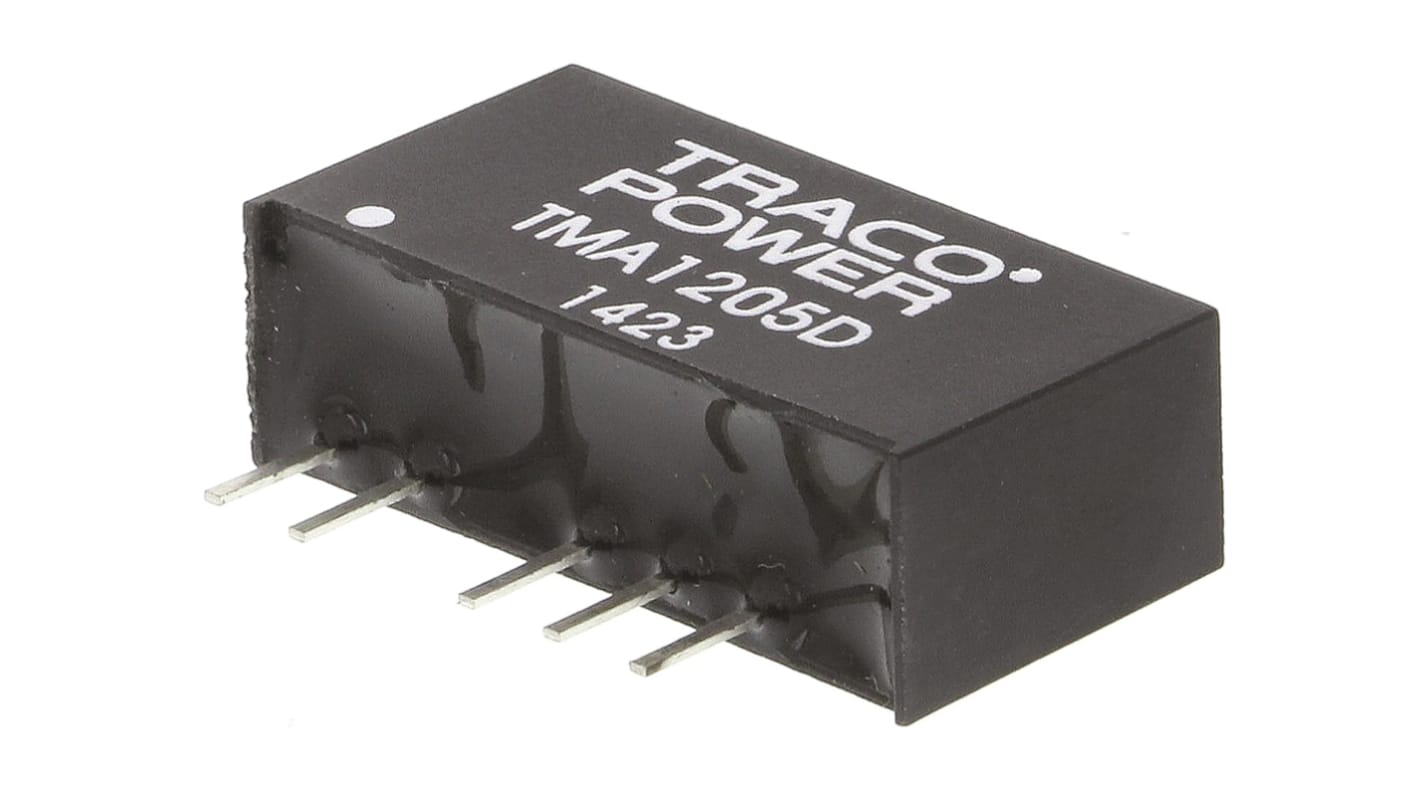

TRACOPOWER TMA DC-DC Converter, ±5V dc/ ±100mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 191-5010
- Mfr. Part No.:
- TMA 1205D
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 unit)*
£4.86
(exc. VAT)
£5.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 40 unit(s) ready to ship from another location
- Plus 43 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.86 |
| 5 - 9 | £4.72 |
| 10 - 24 | £4.56 |
| 25 - 49 | £4.37 |
| 50 + | £4.18 |
*price indicative
- RS Stock No.:
- 191-5010
- Mfr. Part No.:
- TMA 1205D
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP 6 | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Length | 19.5mm | |
| Series | TMA | |
| Load Regulation | ±10% | |
| Maximum Temperature | +85°C | |
| Efficiency | 74% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP 6 | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Length 19.5mm | ||
Series TMA | ||
Load Regulation ±10% | ||
Maximum Temperature +85°C | ||
Efficiency 74% | ||
Minimum Temperature -40°C | ||
