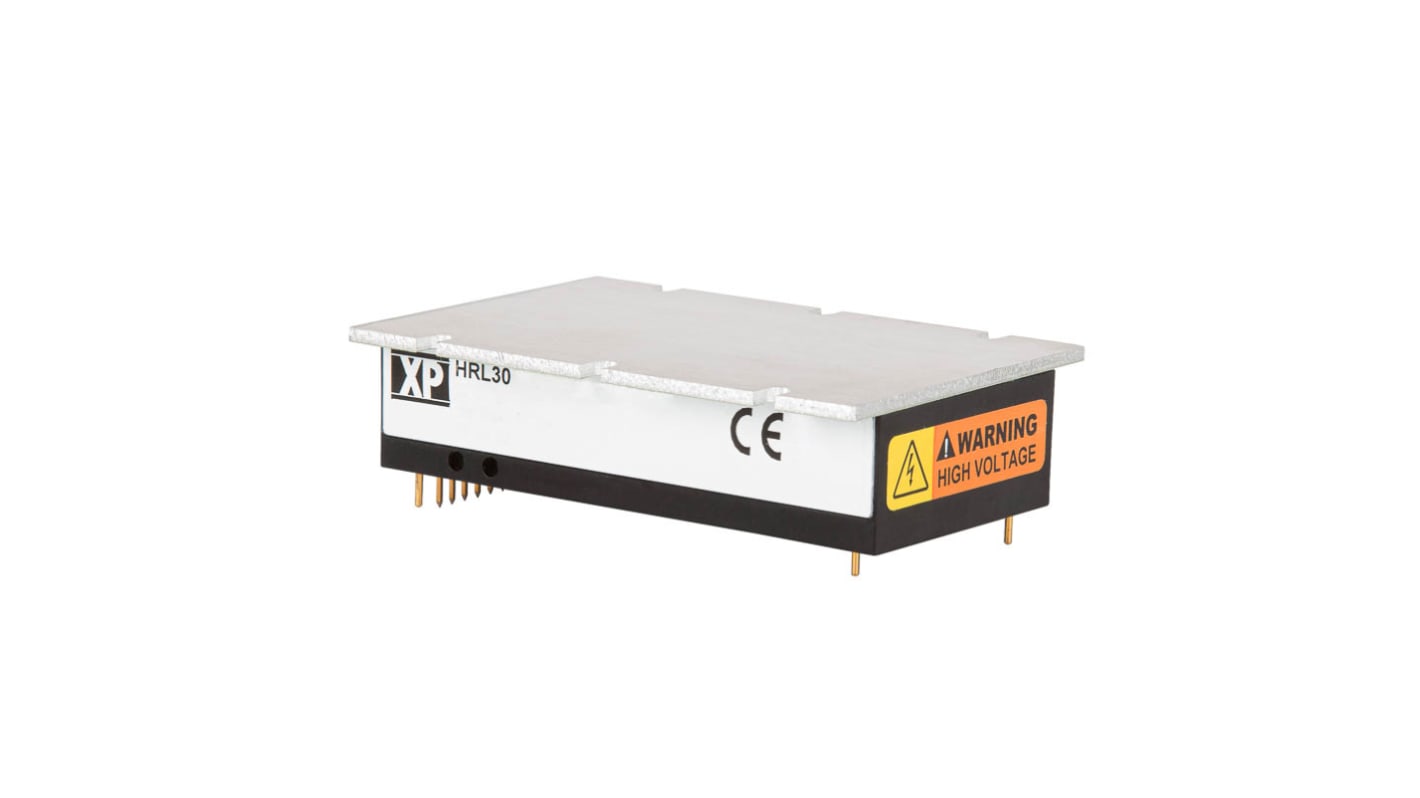

XP Power HRL30 DC-DC Converter, 0 → -1000V dc/ 30mA Output, 22 → 30 V dc Input, 30W, Through Hole, +70°C

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
189-5026
Distrelec Article No.:
301-83-520
Mfr. Part No.:
HRL3024S1K0N
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

0 → -1000V dc

Input Voltage Range

22 → 30 V dc

Power Rating

30W

Input Voltage Nominal

24 V dc

Output Current

30mA

Mounting Type

Through Hole

Isolated

No

Number of Outputs

1

Depth

18.6mm

Width

50.8mm

Length

76.2mm

Series

HRL30

Load Regulation

0.0001

Maximum Temperature

+70°C

Efficiency

85%

Minimum Temperature

-40°C

COO (Country of Origin):
US
The HRL30 series, is a miniature 30W regulated high voltage DC-DC converter product line providing voltages up to 6kV. HRL30 offers both voltage and current mode controls and monitors. This product deploys a proprietary design topology which delivers accurate high voltage at higher efficiency with low EMI. This product has constant voltage and constant current operation with automatic crossover to current limiting mode preventing the delivered current from exceeding the programmed current level. It has digital compatible voltage and current monitors and controls to make it a convenient product for wide range of high voltage applications.

+24VDC Input [22 to 30V]
Output Voltage & Current Regulated
0 to 100% Programmable Voltage & Current
Voltage & Current Monitor Outputs
Operating Temperature: -40°C to +70°C
Short Circuit, Arc, and Overload Protections
On-board +5V Reference
Efficiency >80%
Low Ripple <0.05%
Premier Thermal Performance
Applications
Mass Spectrometry
Electrophoresis
E-beam/Ion Beam
Electrostatic Chuck
Capacitor Charging
Photo Multiplier Tube
Scanning Electron Microscopes
