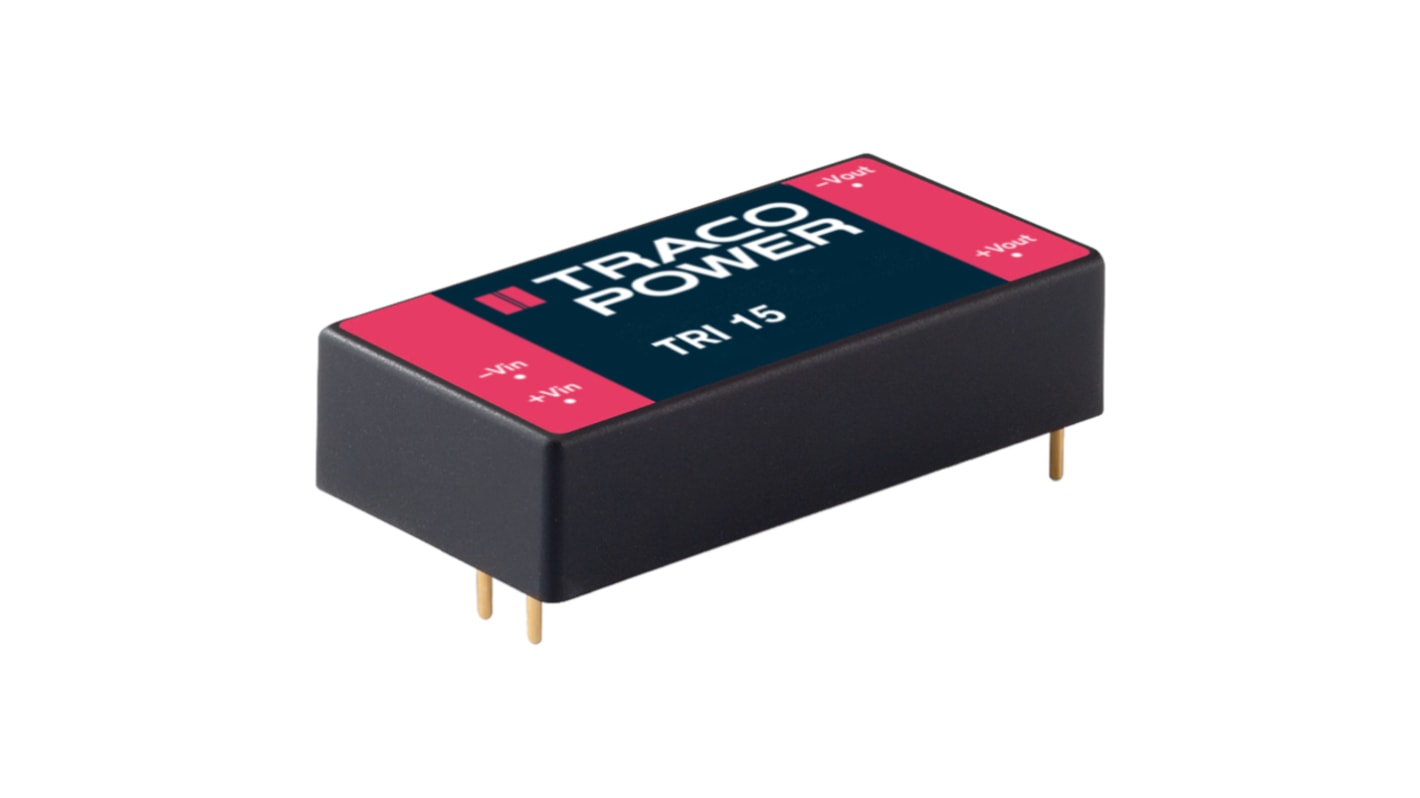

TRACOPOWER TRI 15 DC-DC Converter, 12V dc/ 1.25A Output, 18 → 36 V dc Input, 15W, Through Hole, +82°C Max Temp
- RS Stock No.:
- 189-4975
- Mfr. Part No.:
- TRI 15-2412
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£567.05
(exc. VAT)
£680.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £567.05 | £56.705 |
| 5 - 9 | £550.04 | £55.004 |
| 10 - 24 | £533.03 | £53.303 |
| 25 - 49 | £510.34 | £51.034 |
| 50 + | £487.66 | £48.766 |
*price indicative
- RS Stock No.:
- 189-4975
- Mfr. Part No.:
- TRI 15-2412
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1.25A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 5.94kV dc | |
| Length | 50.8mm | |
| Width | 25.4mm | |
| Depth | 12mm | |
| Series | TRI 15 | |
| Load Regulation | 0.005 | |
| Efficiency | 88% | |
| Maximum Temperature | +82°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.25A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 5.94kV dc | ||
Length 50.8mm | ||
Width 25.4mm | ||
Depth 12mm | ||
Series TRI 15 | ||
Load Regulation 0.005 | ||
Efficiency 88% | ||
Maximum Temperature +82°C | ||
Minimum Temperature -40°C | ||
