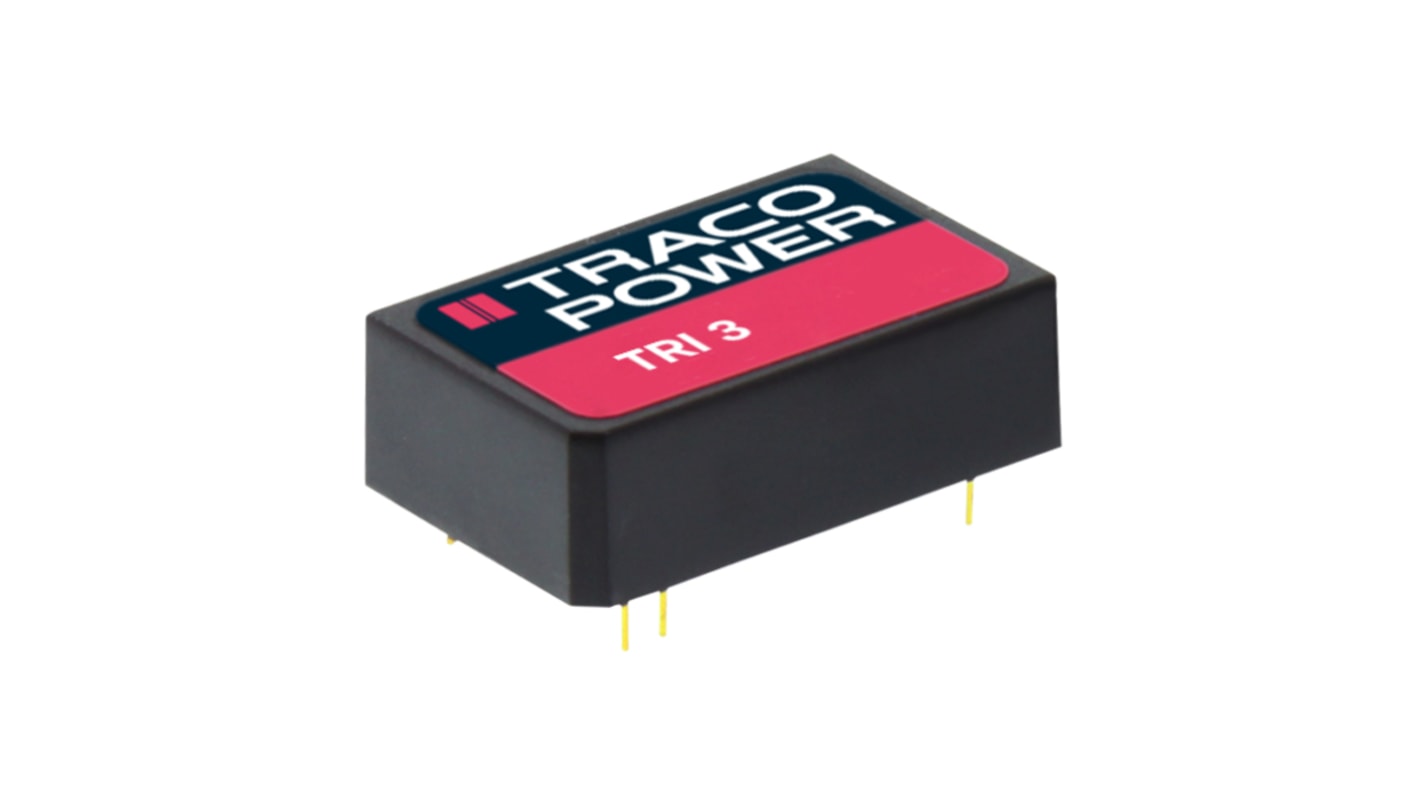

TRACOPOWER TRI 3 DC-DC Converter, 5V dc/ 700mA Output, 18 → 36 V dc Input, 3.5W, Through Hole, +96°C Max Temp
- RS Stock No.:
- 189-4916
- Mfr. Part No.:
- TRI 3-2411
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£300.96
(exc. VAT)
£361.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 1 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £300.96 | £30.096 |
| 5 - 9 | £291.93 | £29.193 |
| 10 - 24 | £282.90 | £28.29 |
| 25 - 49 | £270.86 | £27.086 |
| 50 + | £258.82 | £25.882 |
*price indicative
- RS Stock No.:
- 189-4916
- Mfr. Part No.:
- TRI 3-2411
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 3.5W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 700mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP-24 | |
| Isolation Voltage | 7kV dc | |
| Depth | 12mm | |
| Width | 20.3mm | |
| Length | 31.8mm | |
| Series | TRI 3 | |
| Load Regulation | 0.005 | |
| Maximum Temperature | +96°C | |
| Efficiency | 82% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 3.5W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 700mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP-24 | ||
Isolation Voltage 7kV dc | ||
Depth 12mm | ||
Width 20.3mm | ||
Length 31.8mm | ||
Series TRI 3 | ||
Load Regulation 0.005 | ||
Maximum Temperature +96°C | ||
Efficiency 82% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Reinforced I/O-isolation 5000 VAC rated for 1000 VAC working voltage
Ultra-high isolation peak voltage 9000 VDC (1s)
Common Mode Transient Immunity (dv/dt) 15 kV/μs
Operating temperature range -40 to +90°C without derating
Low no-load power consumption 96 – 192 mW
High efficiency up to 87%
2:1 input voltage range: 4.5-9, 9-18, 18-36, 36-75 VDC
Protection against overload, overvoltage and short circuit
3-year product warranty
Ultra-high isolation peak voltage 9000 VDC (1s)
Common Mode Transient Immunity (dv/dt) 15 kV/μs
Operating temperature range -40 to +90°C without derating
Low no-load power consumption 96 – 192 mW
High efficiency up to 87%
2:1 input voltage range: 4.5-9, 9-18, 18-36, 36-75 VDC
Protection against overload, overvoltage and short circuit
3-year product warranty
