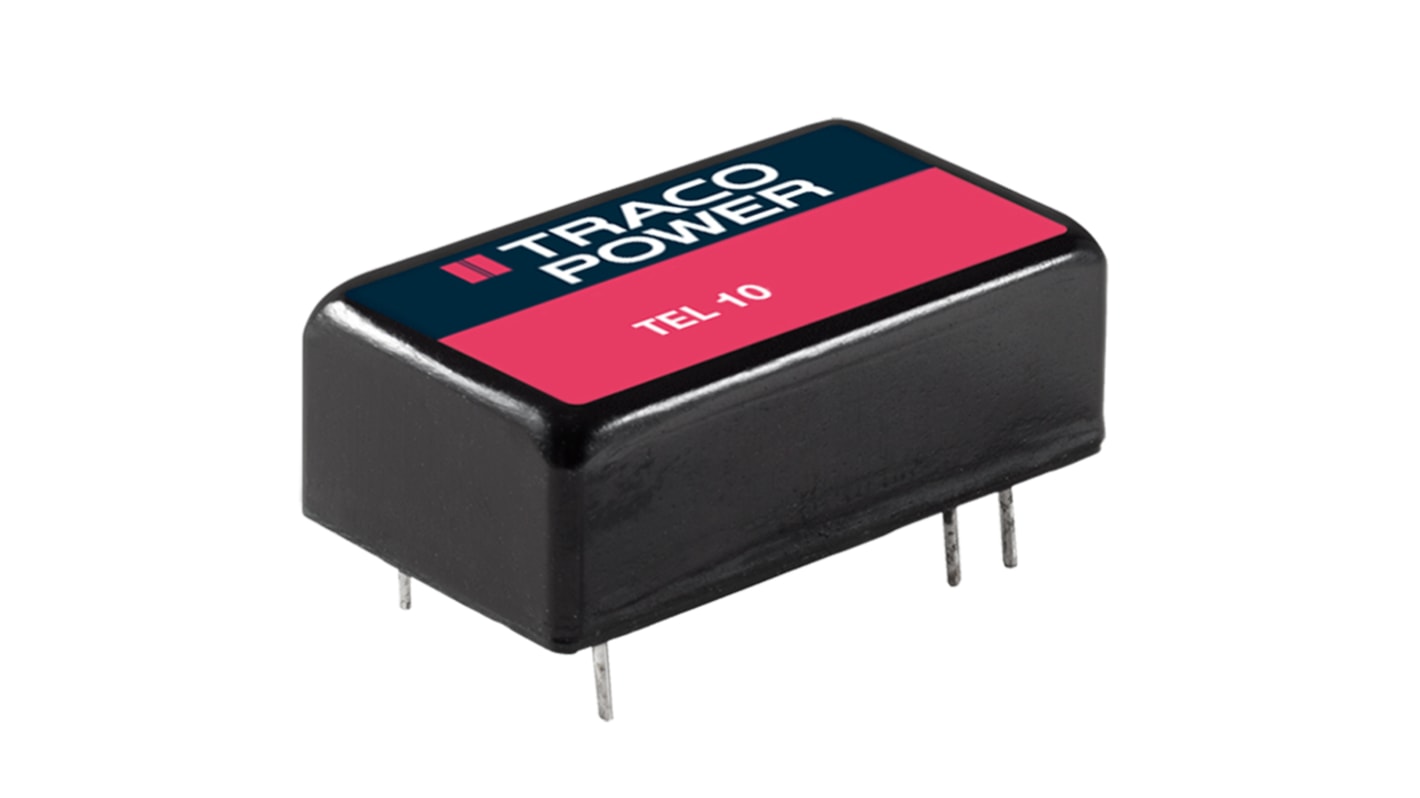

TRACOPOWER TEL 10 DC-DC Converter, 24V dc/ 416mA Output, 9 → 18 V dc Input, 10W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 187-5055
- Mfr. Part No.:
- TEL 10-1215
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£225.00
(exc. VAT)
£270.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £225.00 | £22.50 |
| 5 - 9 | £218.26 | £21.826 |
| 10 - 24 | £211.50 | £21.15 |
| 25 - 49 | £202.51 | £20.251 |
| 50 + | £193.51 | £19.351 |
*price indicative
- RS Stock No.:
- 187-5055
- Mfr. Part No.:
- TEL 10-1215
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 416mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP | |
| Isolation Voltage | 1kV dc | |
| Depth | 8mm | |
| Width | 13.7mm | |
| Length | 23.8mm | |
| Series | TEL 10 | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 87% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 416mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP | ||
Isolation Voltage 1kV dc | ||
Depth 8mm | ||
Width 13.7mm | ||
Length 23.8mm | ||
Series TEL 10 | ||
Load Regulation 0.01 | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 87% | ||
