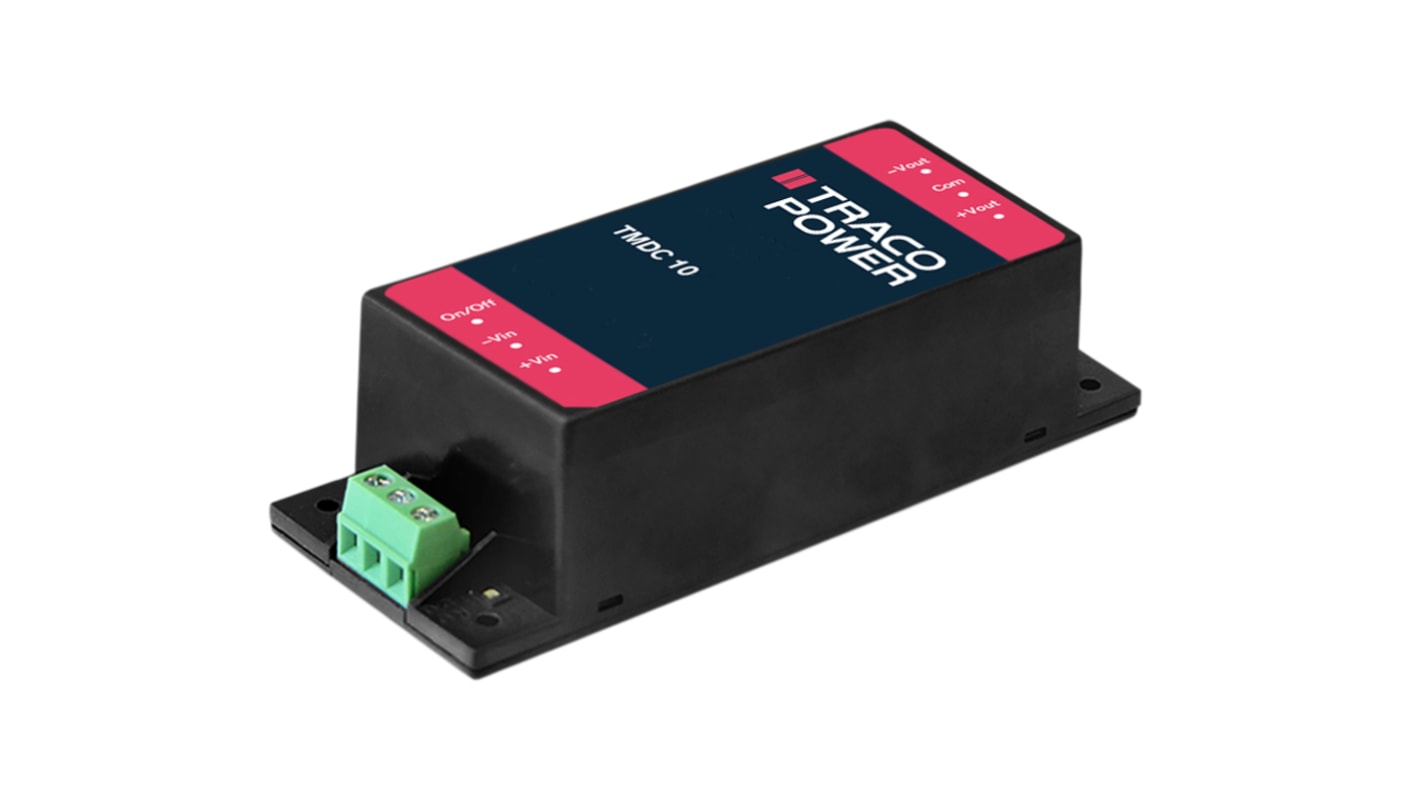

TRACOPOWER TMDC 10 DC-DC Converter, 12V dc/ 833mA Output, 18 → 75 V dc Input, 10W, Chassis Mount, +93°C Max Temp
- RS Stock No.:
- 187-4642
- Mfr. Part No.:
- TMDC 10-4812
- Brand:
- TRACOPOWER
Save 14% when you buy 50 units
Subtotal (1 unit)*
£42.90
(exc. VAT)
£51.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £42.90 |
| 5 - 9 | £41.61 |
| 10 - 24 | £40.33 |
| 25 - 49 | £38.61 |
| 50 + | £36.89 |
*price indicative
- RS Stock No.:
- 187-4642
- Mfr. Part No.:
- TMDC 10-4812
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 833mA | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | Encapsulated | |
| Isolation Voltage | 3kV dc | |
| Length | 34mm | |
| Depth | 79mm | |
| Width | 22mm | |
| Series | TMDC 10 | |
| Load Regulation | 0.5% | |
| Maximum Temperature | +93°C | |
| Efficiency | 86% | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 55022, EN 62368-1, UL 62368-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 833mA | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package Encapsulated | ||
Isolation Voltage 3kV dc | ||
Length 34mm | ||
Depth 79mm | ||
Width 22mm | ||
Series TMDC 10 | ||
Load Regulation 0.5% | ||
Maximum Temperature +93°C | ||
Efficiency 86% | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Standards Met EN 55022, EN 62368-1, UL 62368-1 | ||
