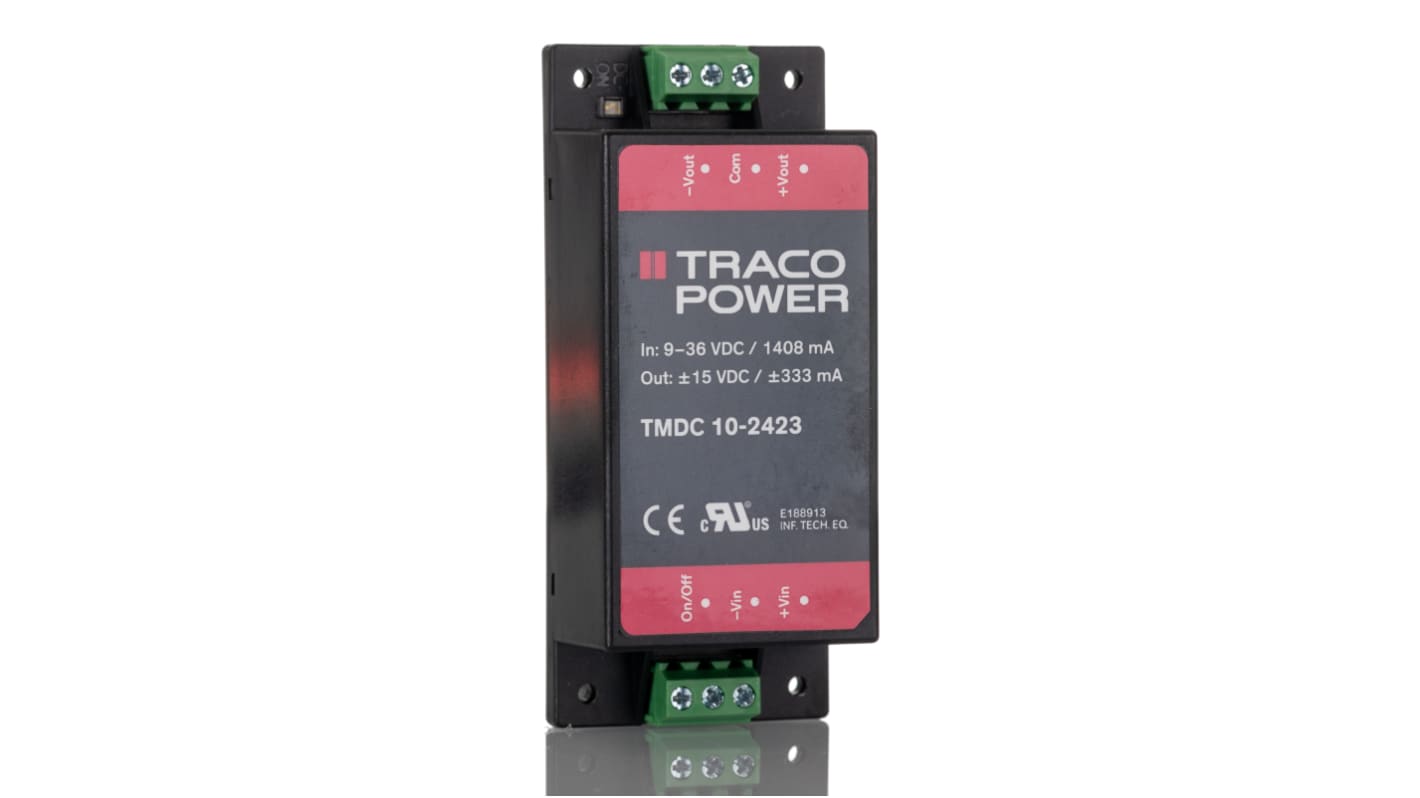

TRACOPOWER TMDC 10 DC-DC Converter, ±15V dc/ ±333mA Output, 9 → 36 V dc Input, 10W, Chassis Mount, +80°C Max
- RS Stock No.:
- 187-4639
- Mfr. Part No.:
- TMDC 10-2423
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£48.17
(exc. VAT)
£57.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.17 |
| 5 - 9 | £46.73 |
| 10 - 24 | £45.29 |
| 25 - 49 | £43.36 |
| 50 + | £41.44 |
*price indicative
- RS Stock No.:
- 187-4639
- Mfr. Part No.:
- TMDC 10-2423
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±333mA | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | Encapsulated | |
| Isolation Voltage | 3kV dc | |
| Length | 79mm | |
| Width | 34mm | |
| Depth | 22mm | |
| Series | TMDC 10 | |
| Load Regulation | 0.5 %, 2 (Balanced Load) % | |
| Standards Met | EN 60950-1 | |
| Maximum Temperature | +80°C | |
| Efficiency | 86% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±333mA | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package Encapsulated | ||
Isolation Voltage 3kV dc | ||
Length 79mm | ||
Width 34mm | ||
Depth 22mm | ||
Series TMDC 10 | ||
Load Regulation 0.5 %, 2 (Balanced Load) % | ||
Standards Met EN 60950-1 | ||
Maximum Temperature +80°C | ||
Efficiency 86% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER TMDC 10 Series DC-DC Converter, 86 % Efficiency, 9 to 36 V DC Input Voltage Range - TMDC 10-2423
This DC-DC converter from TRACOPOWER is a highly efficient and reliable solution for a wide range of industrial applications. With features like isolation voltage of 3 kV DC and an ultra-wide input voltage range, it offers excellent performance in harsh environments. The encapsulated chassis mount design ensures durability and protection, making it ideal for industrial use.
Features & Benefits
• Ultra-wide input voltage range of 9-36 V DC, suitable for varied applications
• High efficiency of 86% ensures optimal power conversion
• Dual output with ±15V DC voltage, providing flexibility in power supply
• Encapsulated design for enhanced durability and protection
• Chassis mount configuration for easy installation and secure mounting
• High efficiency of 86% ensures optimal power conversion
• Dual output with ±15V DC voltage, providing flexibility in power supply
• Encapsulated design for enhanced durability and protection
• Chassis mount configuration for easy installation and secure mounting
Applications
• Industrial automation systems
• Electronic control units
• Power distribution systems
• Vehicle power supply
• Battery management systems
• Electronic control units
• Power distribution systems
• Vehicle power supply
• Battery management systems
Can it handle a wide input voltage range?
Yes, the TRACOPOWER DC-DC converter can efficiently handle an input voltage range of 9 to 36 V DC, making it versatile for various applications.
Will it provide dual output voltage?
The converter offers dual output with ±15V DC voltage, allowing for flexibility in power supply configuration.
Is it suitable for industrial use?
Yes, the DC-DC converter is specifically designed for industrial applications, offering high performance and durability in harsh environments.
