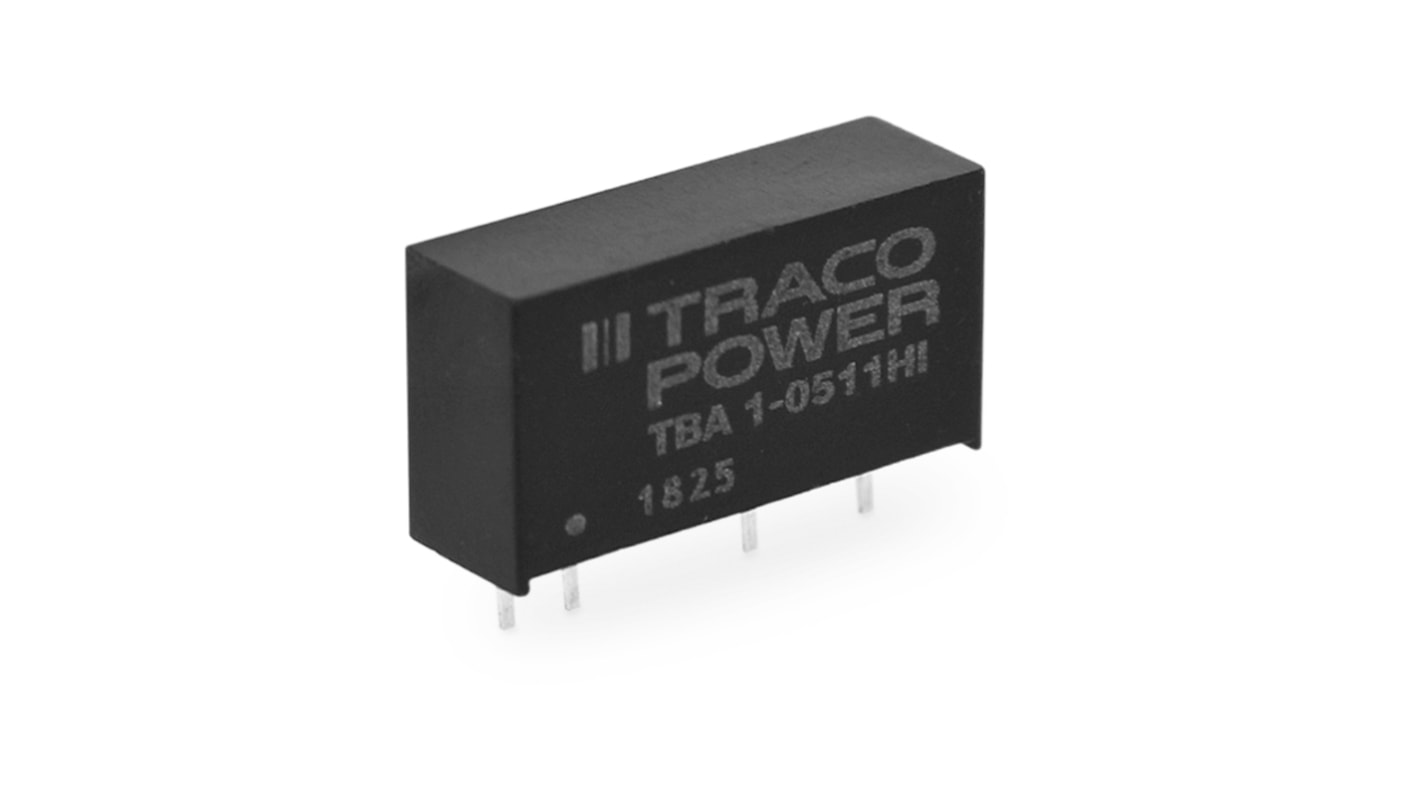

TRACOPOWER TBA 1HI DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max
- RS Stock No.:
- 187-4560
- Mfr. Part No.:
- TBA 1-0521HI
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 unit)*
£3.56
(exc. VAT)
£4.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £3.56 |
| 5 - 9 | £3.46 |
| 10 - 24 | £3.35 |
| 25 - 49 | £3.21 |
| 50 + | £3.07 |
*price indicative
- RS Stock No.:
- 187-4560
- Mfr. Part No.:
- TBA 1-0521HI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | ±100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 3kV dc | |
| Depth | 9.55mm | |
| Width | 6mm | |
| Length | 19.5mm | |
| Series | TBA 1HI | |
| Load Regulation | 1 (Full Load)% | |
| Efficiency | 79% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current ±100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 3kV dc | ||
Depth 9.55mm | ||
Width 6mm | ||
Length 19.5mm | ||
Series TBA 1HI | ||
Load Regulation 1 (Full Load)% | ||
Efficiency 79% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
