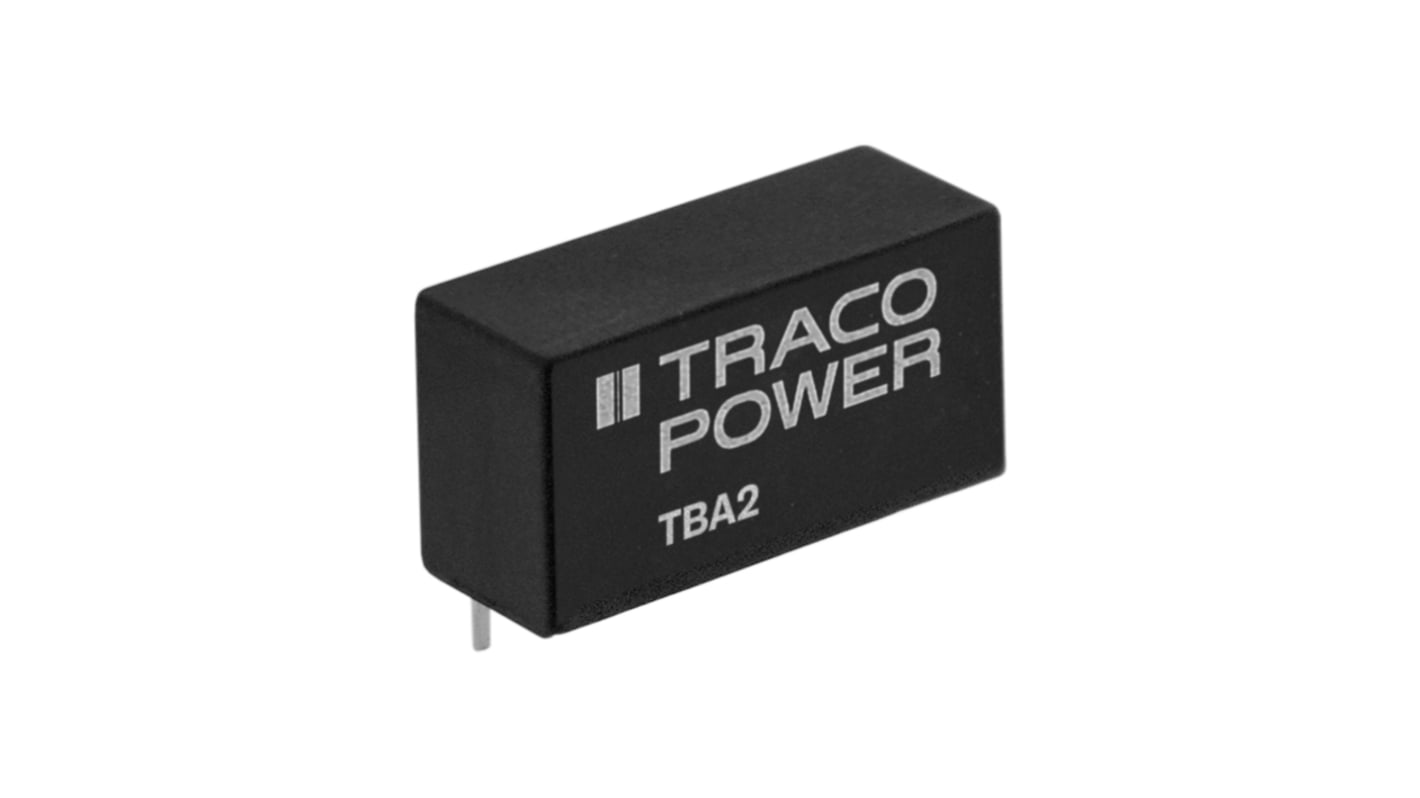

TRACOPOWER TBA 2 DC-DC Converter, ±5V dc/ ±200mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max
- RS Stock No.:
- 187-4036
- Mfr. Part No.:
- TBA 2-2421
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£36.13
(exc. VAT)
£43.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 19 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £36.13 | £3.613 |
5 - 9 | £35.05 | £3.505 |
10 - 24 | £33.97 | £3.397 |
25 - 49 | £32.52 | £3.252 |
50 + | £31.08 | £3.108 |
*price indicative
- RS Stock No.:
- 187-4036
- Mfr. Part No.:
- TBA 2-2421
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±5V dc | |
Input Voltage Range | 21.6 → 26.4 V dc | |
Power Rating | 2W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±200mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | SIP | |
Isolation Voltage | 1.5kV dc | |
Width | 7.6mm | |
Depth | 10.2mm | |
Length | 19.55mm | |
Series | TBA 2 | |
Load Regulation | 1 (Full Load)% | |
Efficiency | 80% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Width 7.6mm | ||
Depth 10.2mm | ||
Length 19.55mm | ||
Series TBA 2 | ||
Load Regulation 1 (Full Load)% | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- CN
Traco Power DC-DC Converter, 1.5kV DC Isolation Voltage, 80% Efficiency - TBA 2 Series - TBA 2-2421
Level out the power supply to your equipment with this DC-DC converter from Traco Power. It steps down an input voltage range of 21.6 to 26.4V DC to a steady output of ±5V DC. For electrical safety, the unit delivers an isolation voltage of 1.5kV DC between the input and output. With a broad operating temperature range of -40°C to +80°C, it can take the strain in demanding settings. A robust plastic casing delivers insulation protection against electric shocks so you're in safe hands during installation.
Features & Benefits
• Voltage set accuracy of ±3% for reliable performance
• Built-in automatic recovery from short circuits for durability against faulty currents
• Quick start-up time of 10ms for rapid conversions
• Built-in automatic recovery from short circuits for durability against faulty currents
• Quick start-up time of 10ms for rapid conversions
Applications
• Telecommunications networks
• Renewable energy generation
• Security devices
• Automotive engineering
• Renewable energy generation
• Security devices
• Automotive engineering
What's the converter's efficiency rating?
An 80% efficiency rating indicates the converter wastes minimal energy as heat, so you won't need a heatsink on your board.
How durable is this device?
Thanks to a mean time between failures of 2 million hours at +25°C, you rely on this converter for long-term service.
