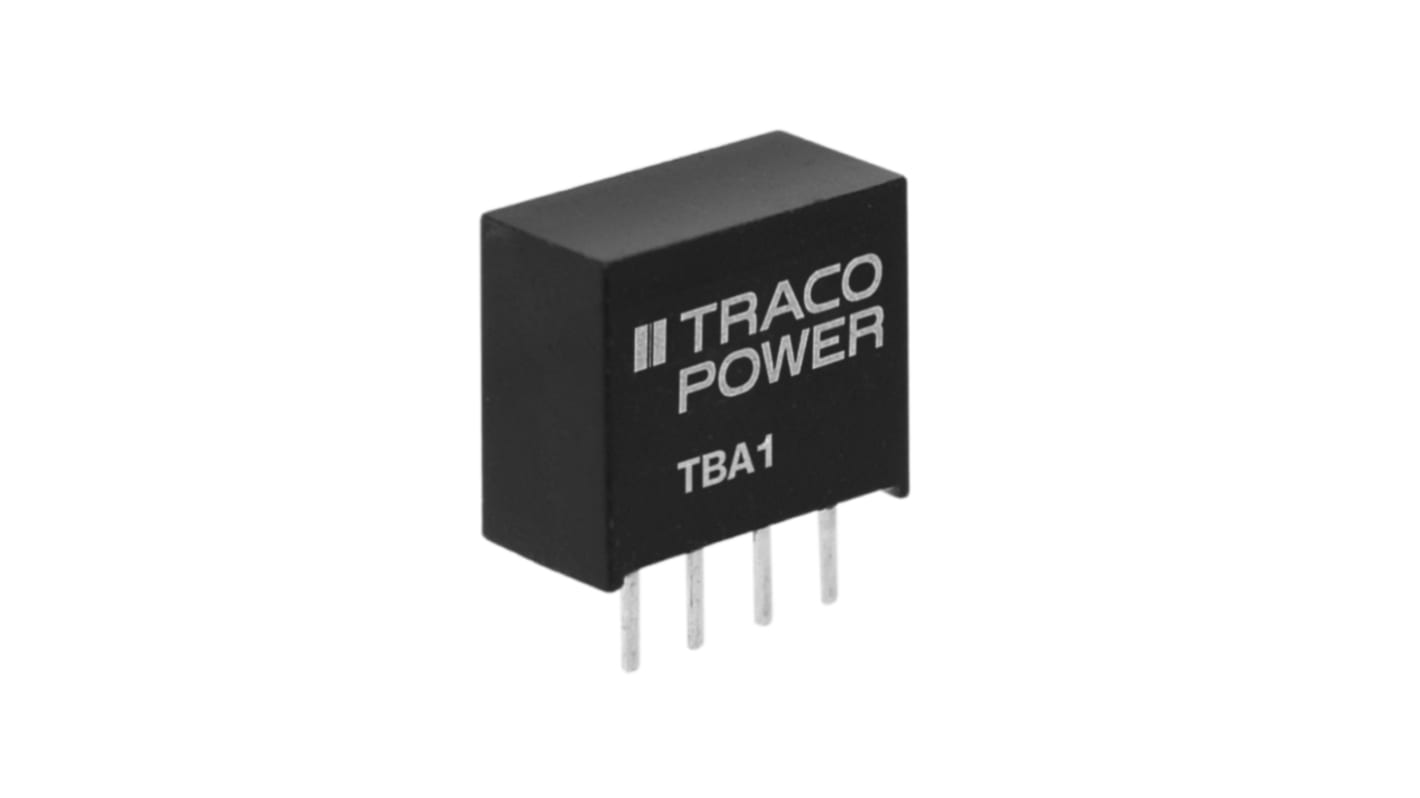

TRACOPOWER TBA 1 DC-DC Converter, 3.3V dc/ 260mA Output, 2.97 → 3.63 V dc Input, 1W, Through Hole, +85°C Max
- RS Stock No.:
- 187-3967
- Mfr. Part No.:
- TBA 1-0310
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£36.90
(exc. VAT)
£44.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £36.90 | £3.69 |
| 5 - 9 | £35.80 | £3.58 |
| 10 - 24 | £34.69 | £3.469 |
| 25 - 49 | £33.22 | £3.322 |
| 50 + | £31.74 | £3.174 |
*price indicative
- RS Stock No.:
- 187-3967
- Mfr. Part No.:
- TBA 1-0310
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 2.97 → 3.63 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 3.3 V dc | |
| Output Current | 260mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 9.7mm | |
| Width | 6mm | |
| Length | 11.68mm | |
| Series | TBA 1 | |
| Maximum Temperature | +85°C | |
| Efficiency | 73% | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 62368-1, IEC 62368-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 2.97 → 3.63 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 3.3 V dc | ||
Output Current 260mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Depth 9.7mm | ||
Width 6mm | ||
Length 11.68mm | ||
Series TBA 1 | ||
Maximum Temperature +85°C | ||
Efficiency 73% | ||
Minimum Temperature -40°C | ||
Standards Met EN 62368-1, IEC 62368-1 | ||
Traco Power DC-DC Converter, Plastic Housing, 1.6g Weight - TBA 1 Series - TBA 1-0310
Looking for an energy delivery solution that packs a punch in a small package? This DC-DC converter from Traco Power keeps things compact. It has dimensions of 9.65 (L) x 11.68 (W) x 6mm (H), meaning it's your space-efficient choice for busy setups. The unit regulates inputs ranging between 2.97 and 3.63V DC, removing ripple and noise thanks to its internal capacitor to deliver a stable 3.3V DC output for your low-voltage components. It works without a hiccup in operating temperatures ranging between -40°C and +85°C, making it fit for use in demanding conditions.
Features & Benefits
• Plastic housing provides insulation to protect you from electric shocks
• Isolation voltage of 1.5kV protects connected devices from power spikes
• Cools by natural convection, eliminating the need for a heat sink
• Through-hole mounting achieves a secure and vibration-proof link to your circuit board
• Isolation voltage of 1.5kV protects connected devices from power spikes
• Cools by natural convection, eliminating the need for a heat sink
• Through-hole mounting achieves a secure and vibration-proof link to your circuit board
Applications
• Gaming consoles
• Process manufacturing
• Packaging lines
• Industrial lighting systems
• Process manufacturing
• Packaging lines
• Industrial lighting systems
How durable is this DC-DC converter?
This unit has a mean time between failures of more than two million operating hours, so you can count on it for long-term performance.
