Recom REM2 DC-DC Converter, 5V dc/ 400mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +95°C Max Temp -40°C

View all DC-DC Converters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
185-5490
Mfr. Part No.:
REM2-2405S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage

5V dc

Input Voltage Range

21.6 → 26.4 V dc

Power Rating

2W

Input Voltage Nominal

24 V dc

Output Current

400mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP

Isolation Voltage

5.2kV dc

Length

23mm

Width

8mm

Depth

12.2mm

Series

REM2

Load Regulation

0.15

Standards Met

2MOPP, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1:14, CB, cURus, EN55011, EN60601-1-2, IEC/EN60601-1, IEC/EN62368-1

Maximum Temperature

+95°C

Efficiency

79%

Minimum Temperature

-40°C

Medical Approved

Yes

COO (Country of Origin):
TW

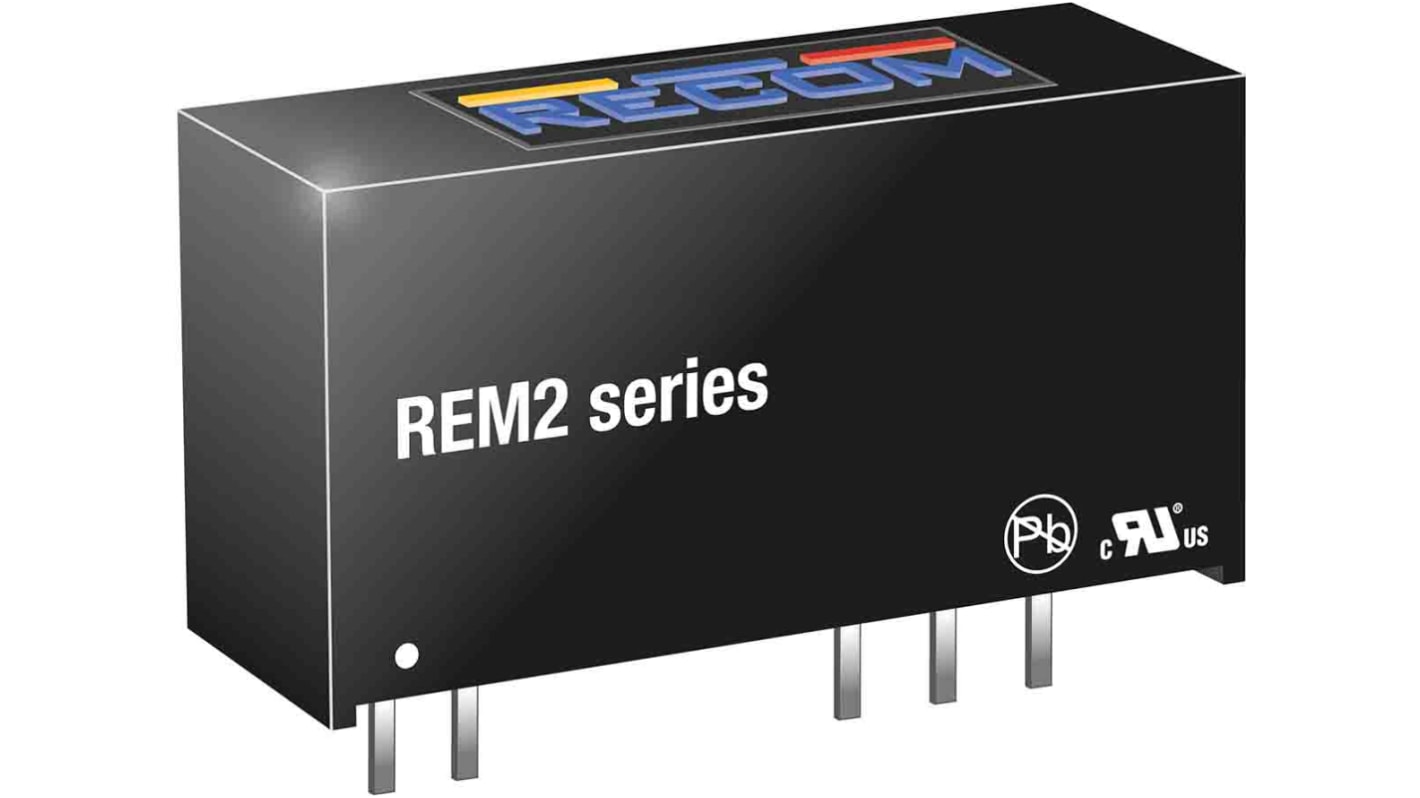

The board-mount REM2 series complements the REM1 series by offering a 2W DC/DC converter in a compact SIP8 package. The REM2 features reinforced 5.2kVDC/1 minute isolation and 2MOPP/250VAC working voltage at 5000m. It offers single and dual outputs with up to 85% efficiency. The operating temperature range is -40°C up to +80°C without derating, and up to +95°C with 50% load. The REM2 comes with a 5 year warranty.

DC/DC converter
250VAC working, 2MOPP at 5000m
5.2kVDC/1 minute isolation
Single or dual outputs
-40°C up to +95°C operating temperature
