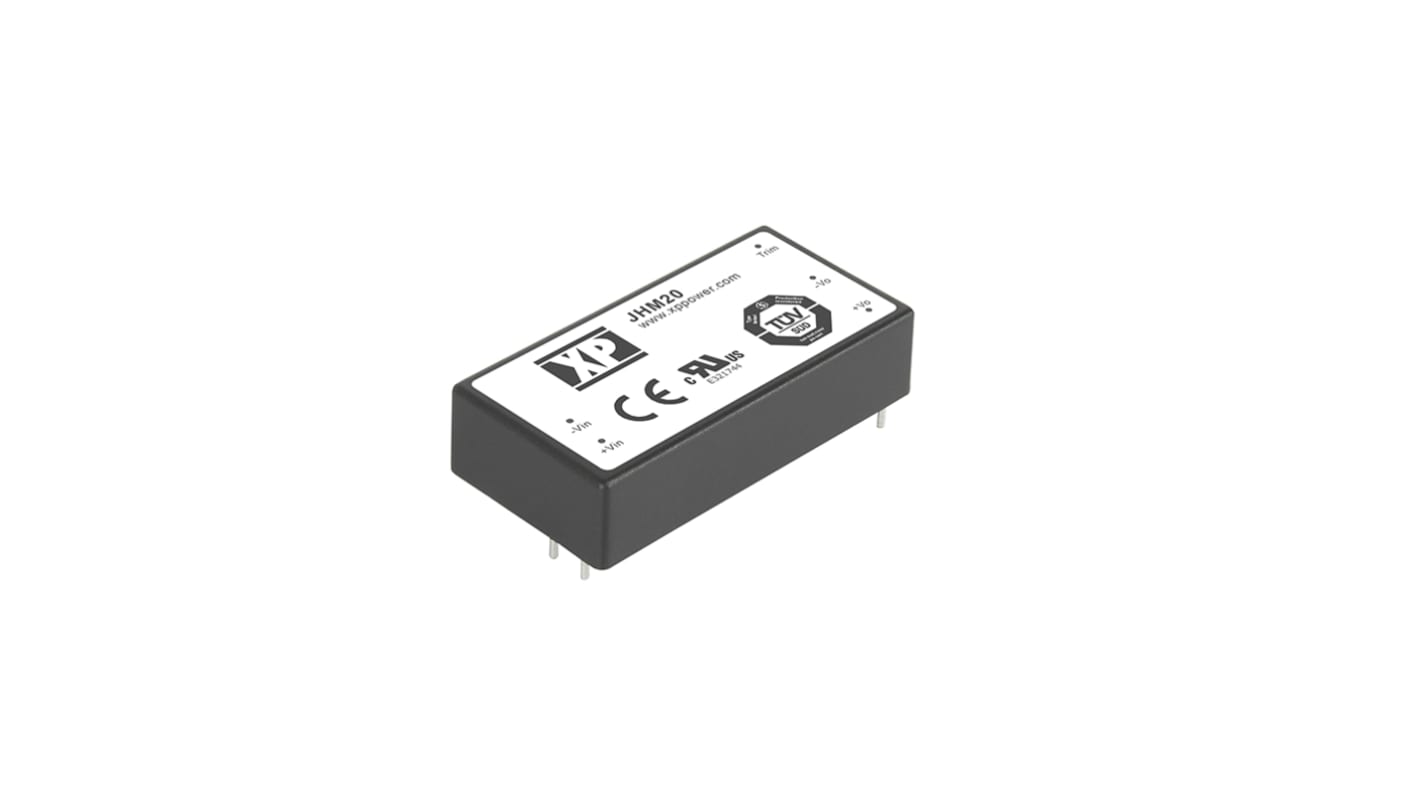

XP Power JHM20 DC-DC Converter, ±5V dc/ ±2A Output, 18 → 36 V dc Input, 20W, Through Hole, +80°C Max Temp -40°C
- RS Stock No.:
- 177-4611
- Mfr. Part No.:
- JHM2024D05
- Brand:
- XP Power
Available to back order for despatch 28/08/2024
Added
Price Each
£56.44
(exc. VAT)
£67.73
(inc. VAT)
Units | Per unit |
1 - 4 | £56.44 |
5 - 9 | £54.75 |
10 - 24 | £53.05 |
25 - 49 | £51.36 |
50 + | £49.67 |
- RS Stock No.:
- 177-4611
- Mfr. Part No.:
- JHM2024D05
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
4006 VAC Reinforced Insulation
2 x MOPP at 250 VAC Working Voltage
2.5 μA Patient Leakage Current
Compact 1 x 2 Footprint
3 Year Warranty
2 x MOPP at 250 VAC Working Voltage
2.5 μA Patient Leakage Current
Compact 1 x 2 Footprint
3 Year Warranty
Specifications
Attribute | Value |
---|---|
Output Voltage | ±5V dc |
Input Voltage Range | 18 → 36 V dc |
Power Rating | 20W |
Input Voltage Nominal | 24 V dc |
Output Current | ±2A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | ±4.5 V dc, ±5.5V dc |
Package | 2 x 1 in |
Isolation Voltage | 4kV dc |
Width | 25.4mm |
Length | 50.8mm |
Depth | 10.2mm |
Series | JHM20 |
Load Regulation | ±2% |
Minimum Temperature | -40°C |
Standards Met | ANSI/AAMI ES60601-1, CSA C22.2, EN55011, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60601-1, IEC60601-1-2, IEC60664-1, UL Listed |
Medical Approved | Yes |
Maximum Temperature | +80°C |
