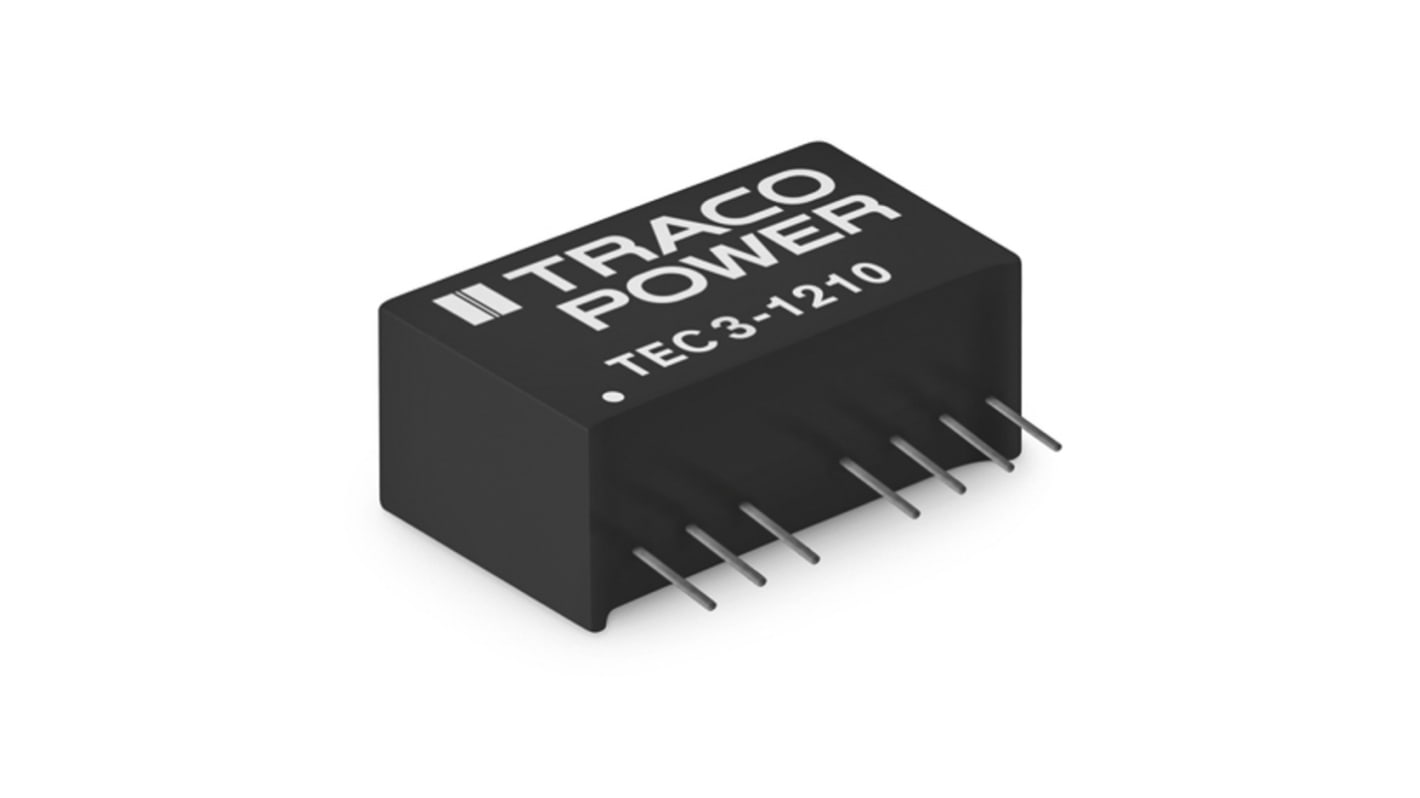

TRACOPOWER TEC 3 DC-DC Converter, 12V dc/ 250mA Output, 9 → 18 V dc Input, 3W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 174-2312
- Mfr. Part No.:
- TEC 3-1212
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£11.82
(exc. VAT)
£14.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 999,999,987 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.82 |
| 5 - 9 | £11.47 |
| 10 - 24 | £11.12 |
| 25 - 49 | £10.64 |
| 50 + | £10.18 |
*price indicative
- RS Stock No.:
- 174-2312
- Mfr. Part No.:
- TEC 3-1212
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP-8 | |
| Isolation Voltage | 1.6kV dc | |
| Width | 9.1mm | |
| Depth | 11.2mm | |
| Length | 21.8mm | |
| Series | TEC 3 | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 84% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP-8 | ||
Isolation Voltage 1.6kV dc | ||
Width 9.1mm | ||
Depth 11.2mm | ||
Length 21.8mm | ||
Series TEC 3 | ||
Load Regulation 0.01 | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
Efficiency 84% | ||
