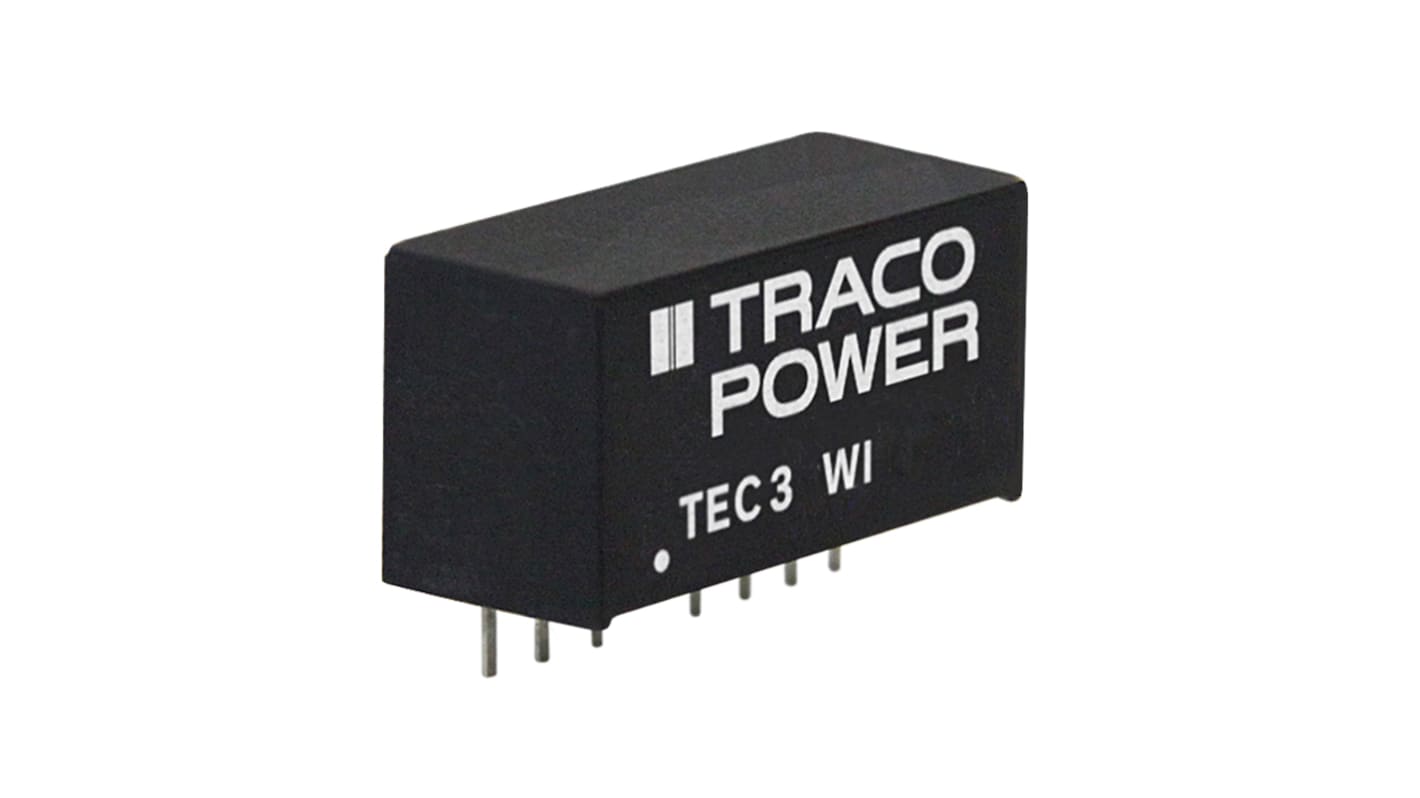

TRACOPOWER TEC 3WI DC-DC Converter, 24V dc/ 125mA Output, 4.5 → 18 V dc Input, 3W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 174-2192
- Mfr. Part No.:
- TEC 3-1215WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£114.79
(exc. VAT)
£137.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £114.79 | £11.479 |
5 - 9 | £111.35 | £11.135 |
10 - 24 | £107.91 | £10.791 |
25 - 49 | £103.32 | £10.332 |
50 + | £98.73 | £9.873 |
*price indicative
- RS Stock No.:
- 174-2192
- Mfr. Part No.:
- TEC 3-1215WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 24V dc | |
Input Voltage Range | 4.5 → 18 V dc | |
Power Rating | 3W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 125mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP-8 | |
Isolation Voltage | 1.6kV dc | |
Length | 21.8mm | |
Depth | 11.2mm | |
Width | 9.1mm | |
Series | TEC 3WI | |
Load Regulation | 0.01 | |
Minimum Temperature | -40°C | |
Maximum Temperature | +90°C | |
Efficiency | 83% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 4.5 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 125mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP-8 | ||
Isolation Voltage 1.6kV dc | ||
Length 21.8mm | ||
Depth 11.2mm | ||
Width 9.1mm | ||
Series TEC 3WI | ||
Load Regulation 0.01 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +90°C | ||
Efficiency 83% | ||
- COO (Country of Origin):
- TW
TRACOpower TEC 3WI Series DC-DC Converter, 24V DC Output Voltage, 3W Power Rating - TEC 3-1215WI
This DC-DC converter stands as a compact and efficient solution in the electronic marketplace. With its SIP-8 package design, this converter offers an impressive input voltage range of 4.5 to 18V DC, delivering a stable output of 24V DC. This makes it a valuable option for various applications requiring reliable power conversion in the automation and electronics sectors.
Features & Benefits
• High efficiency rated at 83% reduces thermal loss
• Operates in extreme temperatures from -40°C to +90°C supports extreme conditions
• Continuous short circuit protection enhances reliability
• Compact SIP-8 package is suitable for space-constrained designs
• Remote On/Off control simplifies operational management
• Operates in extreme temperatures from -40°C to +90°C supports extreme conditions
• Continuous short circuit protection enhances reliability
• Compact SIP-8 package is suitable for space-constrained designs
• Remote On/Off control simplifies operational management
Applications
• Ideal for electrical equipment needing stable 24V DC input
• Suitable for communication devices requiring isolated outputs
• Utilised in mechanical systems for reliable voltage conversion
• Suitable for communication devices requiring isolated outputs
• Utilised in mechanical systems for reliable voltage conversion
What challenges does the temperature range of -40°C to +90°C address?
The extensive temperature range ensures that the converter operates effectively in diverse environmental conditions, making it suitable for outdoor and industrial applications where temperature fluctuations are common.
How does continuous short circuit protection enhance operational safety?
This feature allows the device to recover automatically from short circuits without requiring manual intervention, thereby safeguarding connected equipment against potential damage and ensuring a longer operational lifespan.
What is the significance of the 1.6 kV DC isolation voltage?
This isolation voltage provides a safety barrier between input and output, reducing the risk of electrical interference and enhancing the overall reliability of the system, particularly in sensitive electronic applications.
