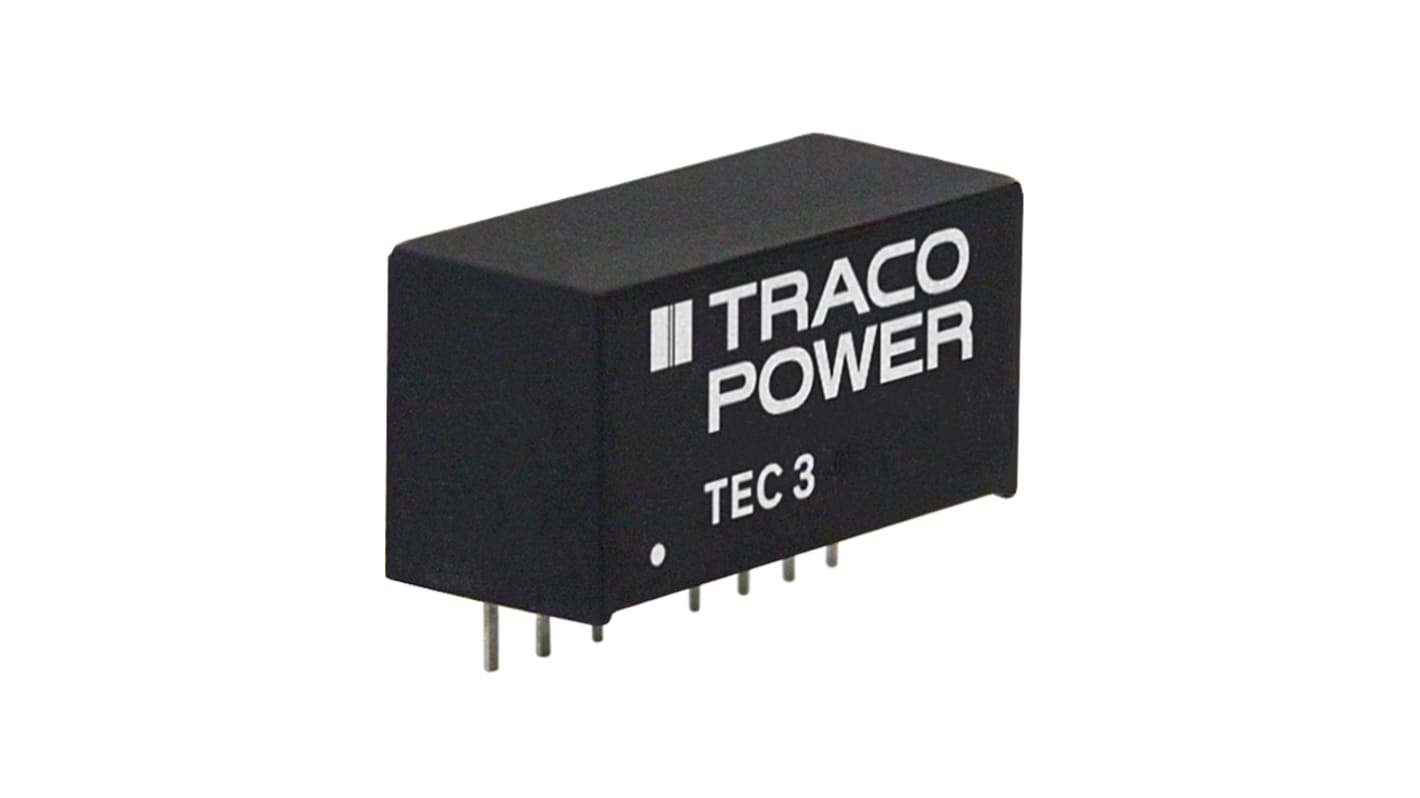

Name: TRACOPOWER TEC 3 DC-DC Converter, 5V dc/ 600mA Output, 36 → 75 V dc Input, 3W, Through Hole, +90°C Max Temp
Brand: TRACOPOWER
SKU: 174-2179
Price: 129.07 GBP
Availability: BackOrder

TRACOPOWER TEC 3 Series DC-DC Converter, 36 to 75V DC Input Voltage Range, 3W Power Rating - TEC 3-4811

This isolated DC-DC converter provides a solution for voltage conversion, accepting an input range of 36 to 75V DC and delivering a regulated output of 5V DC. Its compact SIP-8 design is beneficial in applications with limited space, making it suitable for various industrial environments where power conversion efficiency is important.

Features & Benefits

• Compact SIP-8 package optimises PCB layout space
• I/O isolation voltage of 1,600 VDC enhances safety
• Continuous short circuit protection ensures reliability
• Fully regulated outputs guarantee stable performance across loads
• 80% efficiency minimises energy loss during operation

Applications

• Suitable for powering control systems in industrial automation
• Ideal for communication systems that require stable voltage
• Commonly used in test and measurement equipment demanding reliability
• Frequently found in robotics for consistent power supply to sensors
• Utilised in medical devices requiring precise voltage regulation

What input voltage range can be used with this device?

The device operates with an input voltage range of 36–75V DC.

How it can be control the power output?

Remote On/Off control can be used for convenience.

Is it suitable for applications that experience high temperatures?

Yes, it operates reliably within a temperature range of -40 to +90°C.

What occurs if the output current exceeds the limit?

It features current limitation, which activates if the output exceeds 140–240% of the maximum output current.

Can this be mounted directly onto a PCB?

Yes, it is designed for PCB mounting, simplifying installation.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	5V dc
	Input Voltage Range	36 → 75 V dc
	Power Rating	3W
	Input Voltage Nominal	48 V dc
	Output Current	600mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	SIP-8
	Isolation Voltage	1.6kV dc
	Depth	11.2mm
	Length	21.8mm
	Width	9.1mm
	Series	TEC 3
	Load Regulation	0.01
	Minimum Temperature	-40°C
	Maximum Temperature	+90°C
	Efficiency	80%

	Select all
	Brand TRACOPOWER
	Output Voltage 5V dc
	Input Voltage Range 36 → 75 V dc
	Power Rating 3W
	Input Voltage Nominal 48 V dc
	Output Current 600mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package SIP-8
	Isolation Voltage 1.6kV dc
	Depth 11.2mm
	Length 21.8mm
	Width 9.1mm
	Series TEC 3
	Load Regulation 0.01
	Minimum Temperature -40°C
	Maximum Temperature +90°C
	Efficiency 80%
