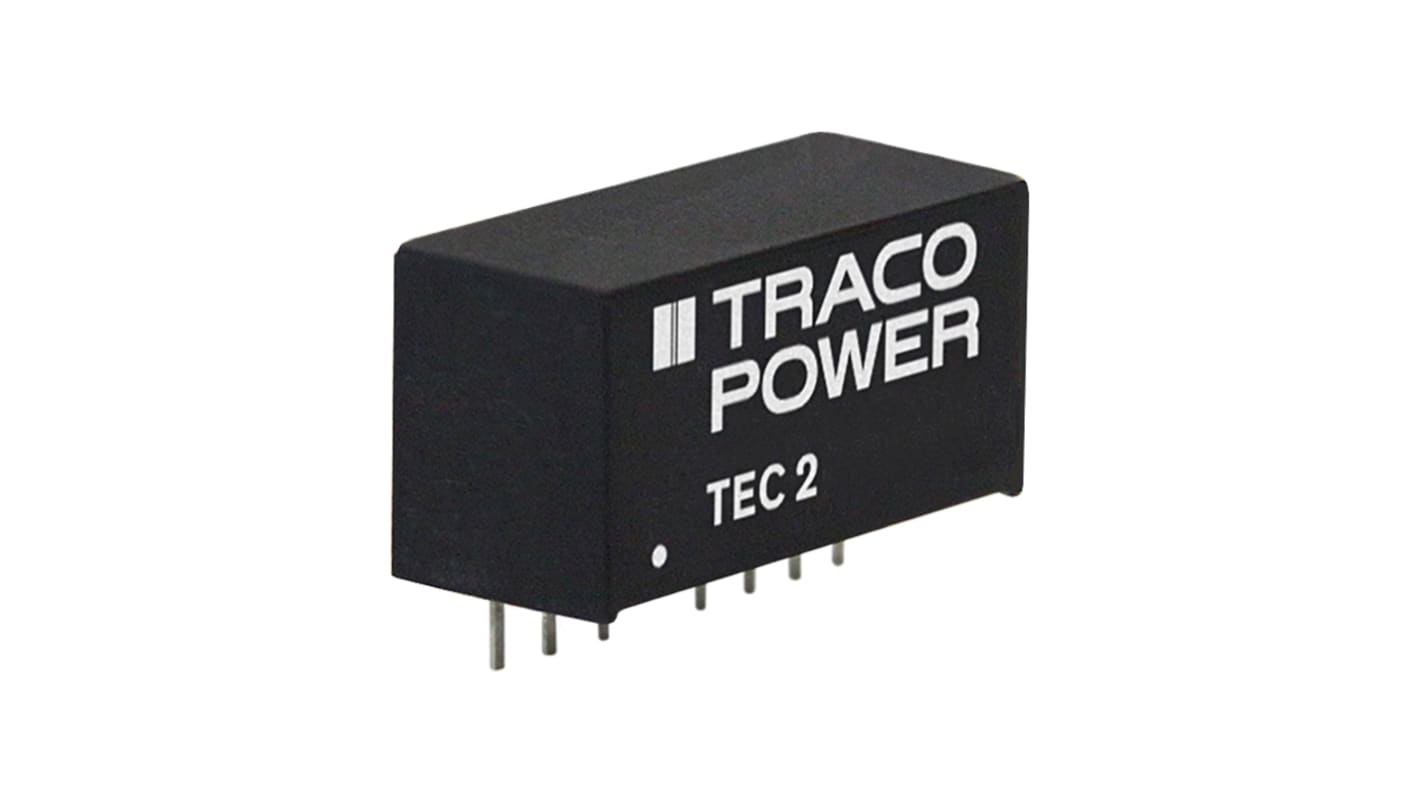

TRACOPOWER TEC 2 DC-DC Converter, 5V dc/ 400mA Output, 18 → 36 V dc Input, 2W, Through Hole, +95°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£83.12

(exc. VAT)

£99.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 65 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£83.12£8.312
5 - 9£80.63£8.063
10 - 24£78.13£7.813
25 - 49£74.81£7.481
50 +£71.48£7.148

*price indicative

RS Stock No.:
174-2107
Mfr. Part No.:
TEC 2-2411
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

5V dc

Input Voltage Range

18 → 36 V dc

Power Rating

2W

Input Voltage Nominal

24 V dc

Output Current

400mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP-8

Isolation Voltage

1.6kV dc

Width

9.1mm

Depth

11.2mm

Length

21.8mm

Series

TEC 2

Load Regulation

0.01

Maximum Temperature

+95°C

Minimum Temperature

-40°C

Efficiency

83%

COO (Country of Origin):
TW

Traco Power DC-DC Converter, 83% Efficiency, SIP8 Format - TEC 2 Series - TEC 2-2411


Keep the balance of power in your electric circuit using this DC-DC converter from Traco Power. It accepts a wide input voltage range from 18 to 36V DC and steps it down to a safe output level of 5V DC. With built-in resistance to shock, vibration and thermal shock, this piece of gear packs a triple threat against faulty conditions in your system. You can mount it in a pinch by soldering its pins through the holes on your board.

Features & Benefits


• Isolation voltage of 1.6kV DC between input and output sources for electrical safety
• Mean time between failures of 6,620,000 hours for lasting operation
• Minimal output ripple and noise of 75mVp-p for clear signal delivery
• Integrated short-circuit protection with continuous automatic recovery to minimise downtime

Applications


• Audio-visual devices
• Aerospace engineering
• Telecommunications networks
• Data centres

What's the start-up time of this converter?


A maximum start-up time of 20ms means you can be sure this converter gets to work quickly when it receives a command.

How efficient is the device?


With an efficiency rating of 83%, this converter releases minimal energy waste, eliminating the need for a heatsink on your board.
