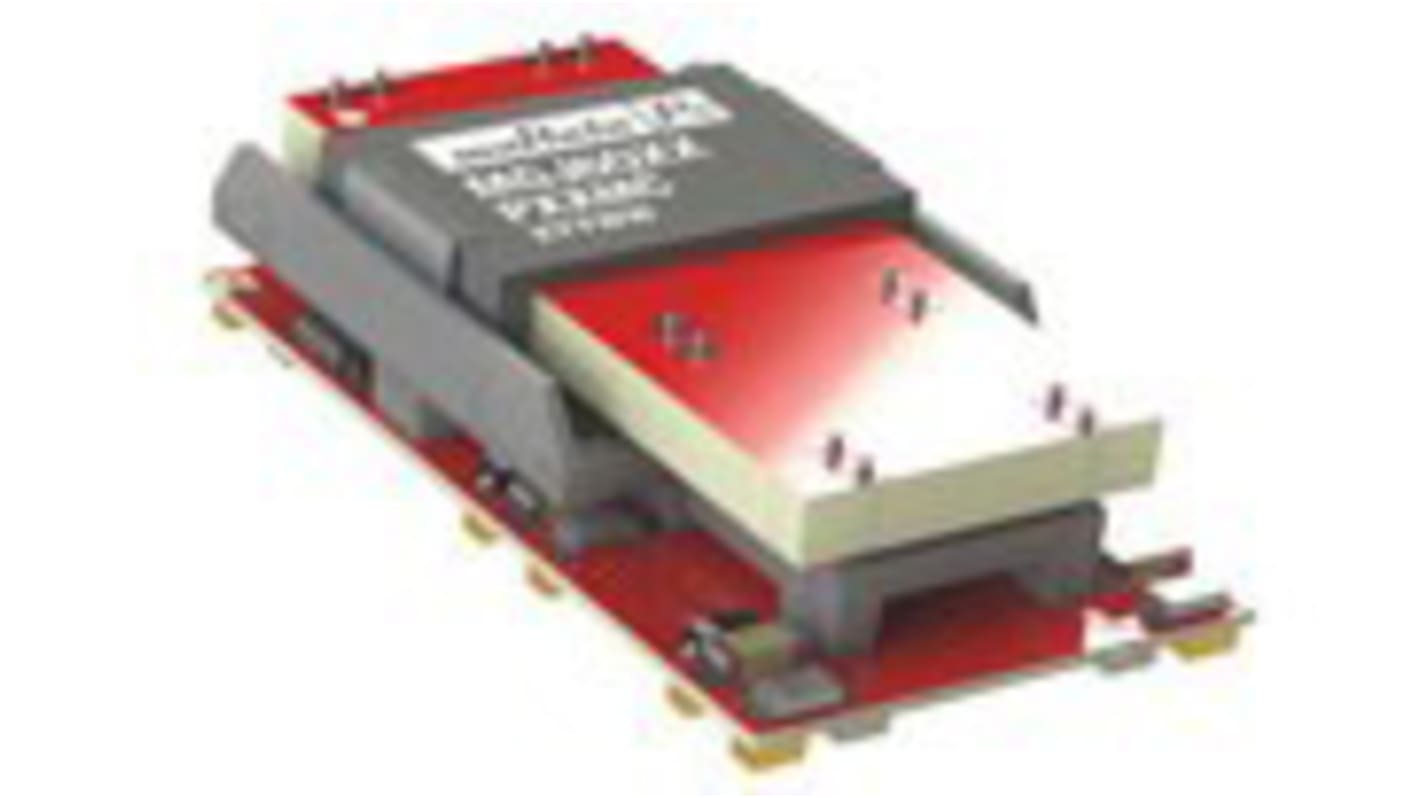

Murata Power Solutions MGJ6 DC-DC Converter, 24V dc/ 42mA Output, 4.5 → 9 V dc Input, 1W, Through Hole, +105°C
- RS Stock No.:
- 173-6915
- Mfr. Part No.:
- MGJ6Q05P24MC-R7
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 reel of 23 units)*
£488.79
(exc. VAT)
£586.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 4 | £488.79 | £21.252 |
| 5 - 9 | £474.13 | £20.614 |
| 10 - 24 | £459.46 | £19.977 |
| 25 - 49 | £444.81 | £19.34 |
| 50 + | £430.13 | £18.701 |
*price indicative
- RS Stock No.:
- 173-6915
- Mfr. Part No.:
- MGJ6Q05P24MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 4.5 → 9 V dc | |
| Power Rating | 1 W, 3W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 42 mA, 125mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 4 | |
| Package | SMA | |
| Isolation Voltage | 5.7kV dc | |
| Width | 22.61mm | |
| Depth | 13.85mm | |
| Length | 44.07mm | |
| Series | MGJ6 | |
| Load Regulation | 0.03 | |
| Standards Met | ANSI/AAMI ES60601-1, UL 60950 | |
| Maximum Temperature | +105°C | |
| Efficiency | 79.5% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 24V dc | ||
Input Voltage Range 4.5 → 9 V dc | ||
Power Rating 1 W, 3W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 42 mA, 125mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 4 | ||
Package SMA | ||
Isolation Voltage 5.7kV dc | ||
Width 22.61mm | ||
Depth 13.85mm | ||
Length 44.07mm | ||
Series MGJ6 | ||
Load Regulation 0.03 | ||
Standards Met ANSI/AAMI ES60601-1, UL 60950 | ||
Maximum Temperature +105°C | ||
Efficiency 79.5% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- CN
Offering Three isolated output voltages of 24V, the MGJ6 series of DC-DC converters is ideal for simultaneously powering ’high side’ and ’low side’ gate drive circuits for IGBTs, Silicon and Silicon Carbide Mosfets in full bridge circuits. The MGJ6 series is characterised for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters.
Patents protected
No opto feedback
Optimised bipolar output voltages for IGBT/
SiC & MOSFET gate drives
Configurable dual outputs for all gate drive
+15V/-5V, +15V/-10V & +20V/-5V outputs
Characterised dv/dt immunity 80kV/μs at 1.6kV
Characterised partial discharge performance
14mm Creepage and clearance
Ultra low coupling capacitance 13pF
DC link voltage 3kVDC
5V, 12V & 24V input voltages
105°C operating temperature
No opto feedback
Optimised bipolar output voltages for IGBT/
SiC & MOSFET gate drives
Configurable dual outputs for all gate drive
+15V/-5V, +15V/-10V & +20V/-5V outputs
Characterised dv/dt immunity 80kV/μs at 1.6kV
Characterised partial discharge performance
14mm Creepage and clearance
Ultra low coupling capacitance 13pF
DC link voltage 3kVDC
5V, 12V & 24V input voltages
105°C operating temperature
