Murata Power Solutions MGJ6 DC-DC Converter, 5V dc/ 240mA Output, 9 → 18 V dc Input, 6W, Surface Mount, +105°C
- RS Stock No.:
- 167-6202
- Mfr. Part No.:
- MGJ6T12150505MC-R7
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 reel of 23 units)*
£518.53
(exc. VAT)
£622.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 4 | £518.53 | £22.545 |
| 5 - 9 | £502.99 | £21.869 |
| 10 - 24 | £487.44 | £21.193 |
| 25 - 49 | £471.87 | £20.516 |
| 50 + | £456.32 | £19.84 |
*price indicative
- RS Stock No.:
- 167-6202
- Mfr. Part No.:
- MGJ6T12150505MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 5 V dc, 15V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 240mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 3 | |
| Package | SMD | |
| Isolation Voltage | 5.2kV dc | |
| Length | 31.24mm | |
| Depth | 14.65mm | |
| Width | 22.61mm | |
| Series | MGJ6 | |
| Load Regulation | 0.1 | |
| Efficiency | 81% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 5 V dc, 15V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 240mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 3 | ||
Package SMD | ||
Isolation Voltage 5.2kV dc | ||
Length 31.24mm | ||
Depth 14.65mm | ||
Width 22.61mm | ||
Series MGJ6 | ||
Load Regulation 0.1 | ||
Efficiency 81% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +105°C | ||
- COO (Country of Origin):
- GB

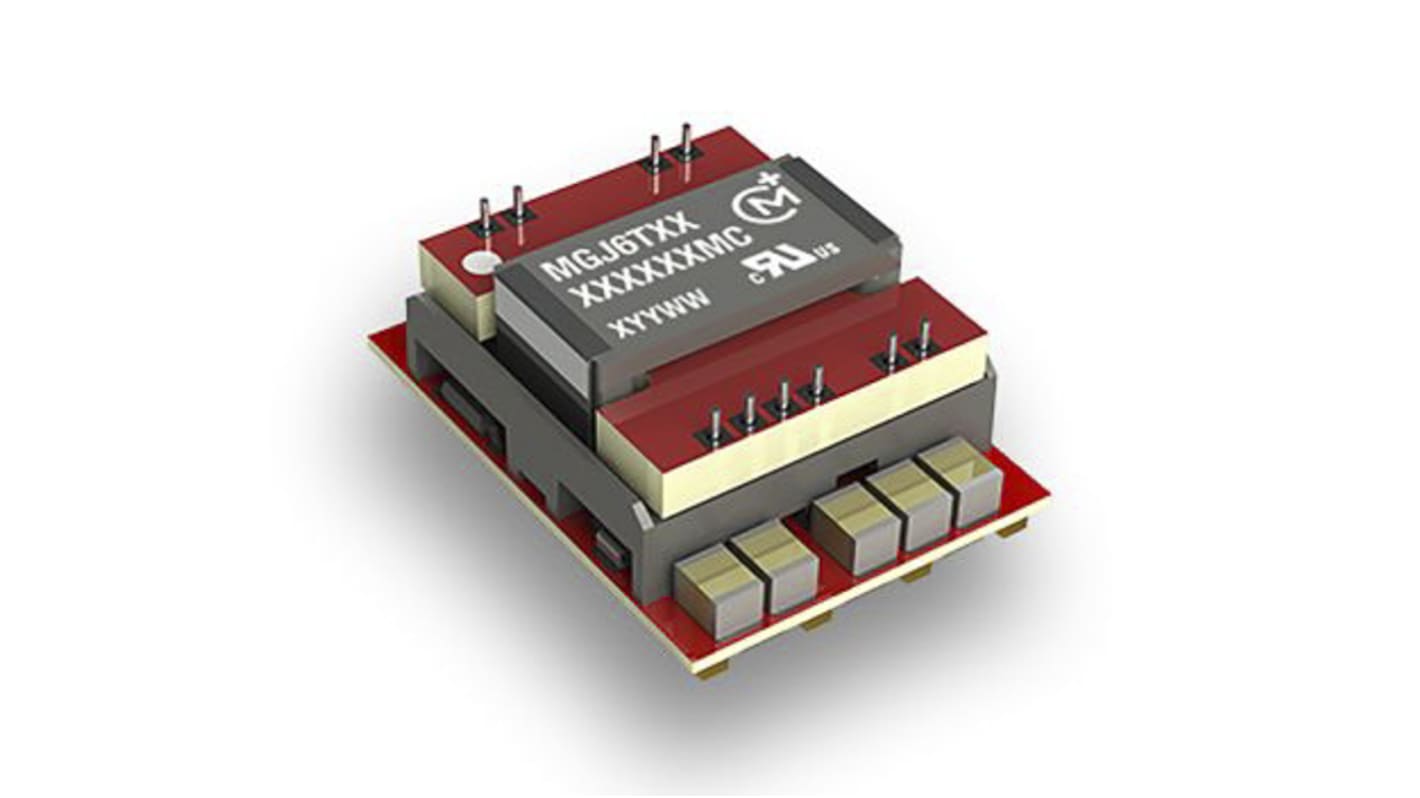

Murata Isolated 6W Triple Output DC/DC Converter - MGJ6 Series
The Murata Power Solutions MGJ6 series is a range of 6W DC-DC converters with high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters. These DC-DC converters offer a choice of asymmetric output voltages allowing optimum drive levels for best system efficiency and EMI. The MGJ3 isolated DC-DC converters have 3 configurable outputs and they are ideal for powering ’high side’ and ’low side’ gate drive circuits for IGBTs, Silicon Carbide and Mosfets in bridge circuits.
No opto feedback
Patents Pending
Optimised bipolar output voltages for IGBT/SiC & Mosfet gate drives
3 outputs configurable for all gate drive applications: +15V/-5V, +15V/-10V & +20V/-5V outputs
Characterised dv/dt immunity 80kV/μs at1.5kV
Characterised partial discharge performance
5.2kVDC isolation test voltage ’Hi Pot Test’
Ultra low coupling capacitance 15pF
SMD package
5V, 12V & 24V input voltages
105°C operating temperature
Patents Pending
Optimised bipolar output voltages for IGBT/SiC & Mosfet gate drives
3 outputs configurable for all gate drive applications: +15V/-5V, +15V/-10V & +20V/-5V outputs
Characterised dv/dt immunity 80kV/μs at1.5kV
Characterised partial discharge performance
5.2kVDC isolation test voltage ’Hi Pot Test’
Ultra low coupling capacitance 15pF
SMD package
5V, 12V & 24V input voltages
105°C operating temperature
Approvals
UL60950 pending, ANSI/AAMI ES60601-1, 2 MOOPs pending
