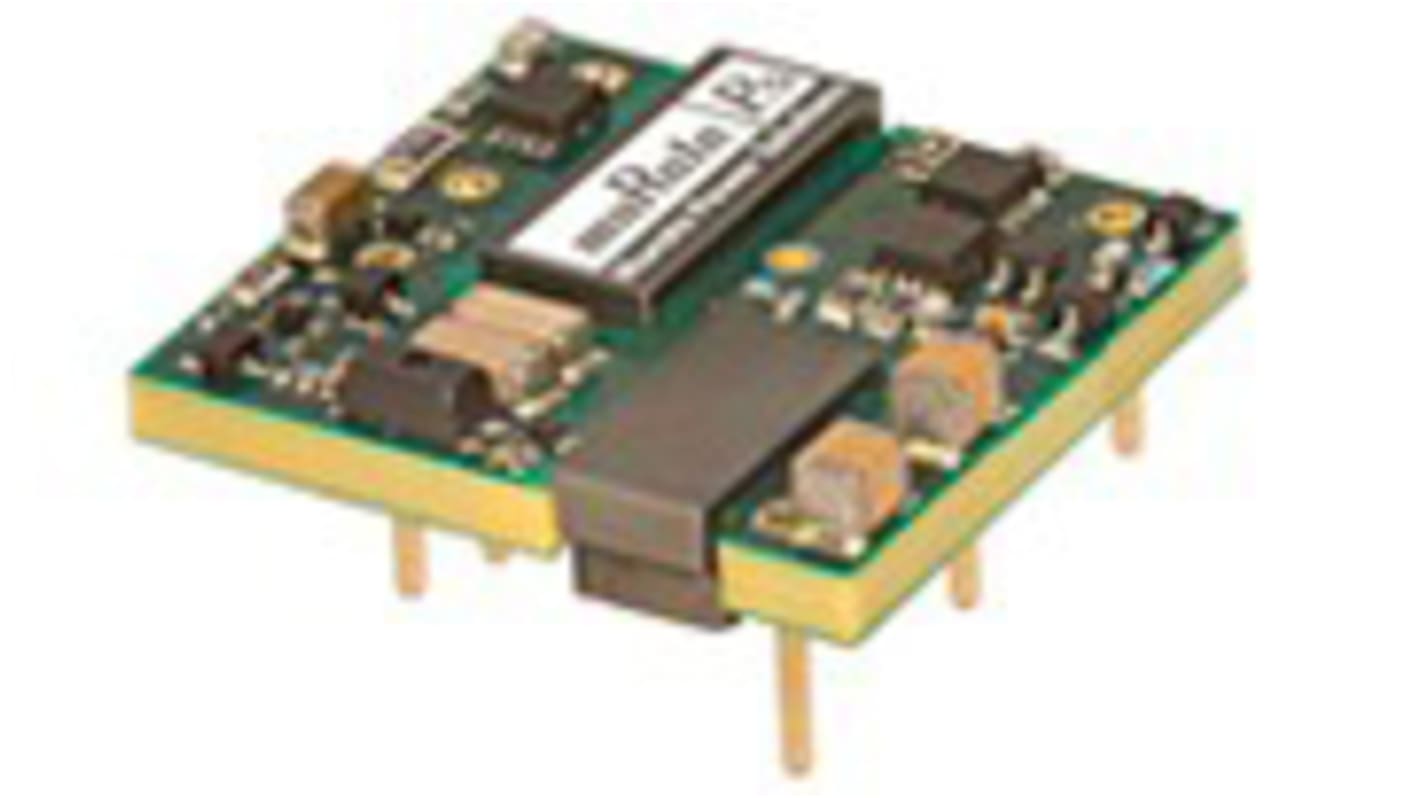

Murata Power Solutions UEI15 Isolated DC-DC Converter, 5V dc/ 3A Output, 18 → 75 V dc Input, 15W, Through Hole,
- RS Stock No.:
- 173-6888
- Mfr. Part No.:
- UEI15-050-Q48P-C
- Brand:
- Murata Power Solutions
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Tube of 10
£354.89
(exc. VAT)
£425.87
(inc. VAT)
- RS Stock No.:
- 173-6888
- Mfr. Part No.:
- UEI15-050-Q48P-C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 3A | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -10 → +10% | |
| Isolation Voltage | 2.25kV dc | |
| Depth | 0.33mm | |
| Width | 24.4mm | |
| Length | 27.9mm | |
| Series | UEI15 | |
| Load Regulation | ±0.06% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
| Efficiency | 86% | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 5V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 3A | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10 → +10% | ||
Isolation Voltage 2.25kV dc | ||
Depth 0.33mm | ||
Width 24.4mm | ||
Length 27.9mm | ||
Series UEI15 | ||
Load Regulation ±0.06% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Efficiency 86% | ||
- COO (Country of Origin):
- CN
Featuring a full 15 Watt or greater output in one square inch of board area, the UEI series isolated DC/DC converter family offers efficient regulated DC power for printed circuit board mounting.
Small footprint DC/DC converter, ideal for
high current applications
Industry standard 0.96" x 1.1" X 0.33" open
frame package and pinout
Wide range input voltages 9-36 and 18-75 Vdc
Isolation up to 2250 VDC (basic)
Up to 15 Watts or greater total output power
with over temperature shutdown
High efficiency synchronous rectifier forward
topology
Stable operation with no required external
components
Usable -40 to 85°C temperature range (with
derating)
Extensive self-protection shut down features
high current applications
Industry standard 0.96" x 1.1" X 0.33" open
frame package and pinout
Wide range input voltages 9-36 and 18-75 Vdc
Isolation up to 2250 VDC (basic)
Up to 15 Watts or greater total output power
with over temperature shutdown
High efficiency synchronous rectifier forward
topology
Stable operation with no required external
components
Usable -40 to 85°C temperature range (with
derating)
Extensive self-protection shut down features
