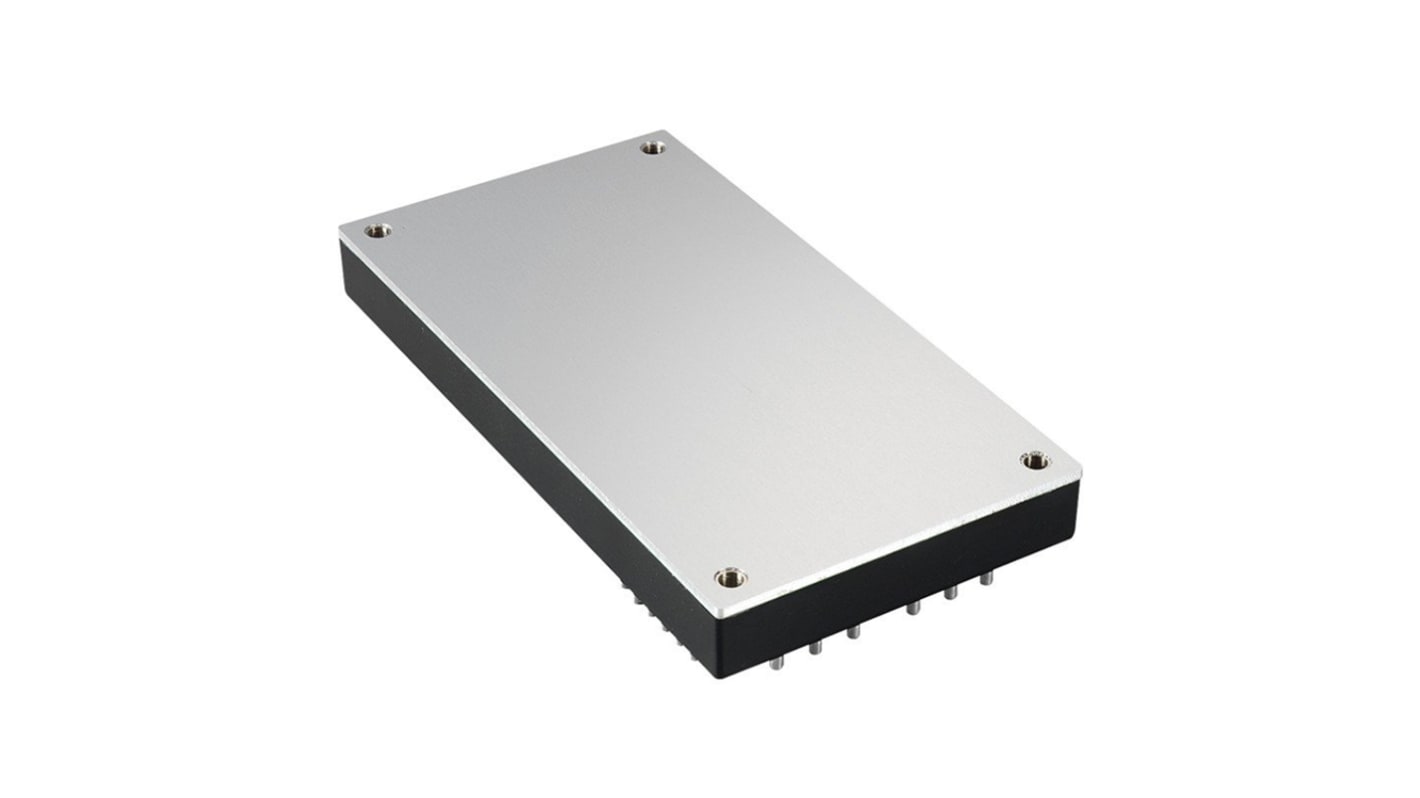

XP Power QSB600 DC/DC Converter, 28V dc/ 25 mA, 75V dc Input, 36V Input 600 W, Through Hole, 100 °C Max Temp -40 °C Min
- RS Stock No.:
- 171-8738
- Mfr. Part No.:
- QSB60048S28
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 171-8738
- Mfr. Part No.:
- QSB60048S28
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 28V dc | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 75V dc | |
| Output Current 1 | 25mA | |
| Mount Type | Through Hole | |
| MTBF | 381000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 10 % | |
| Isolation Voltage | 1.5kV dc | |
| Maximum Output Power | 600W | |
| Package Type | SIP | |
| Length | 116.8mm | |
| Depth | 5.5mm | |
| Series | QSB600 | |
| Width | 61mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 100°C | |
| Efficiency | 91% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Converter | ||
Output Voltage 1 28V dc | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 75V dc | ||
Output Current 1 25mA | ||
Mount Type Through Hole | ||
MTBF 381000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10 % | ||
Isolation Voltage 1.5kV dc | ||
Maximum Output Power 600W | ||
Package Type SIP | ||
Length 116.8mm | ||
Depth 5.5mm | ||
Series QSB600 | ||
Width 61mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 100°C | ||
Efficiency 91% | ||
Minimum Operating Temperature -40°C | ||
Up to 92% Efficiency
Industry Standard Full Brick Package
-40 °C to +100 °C Operating Temperature
High Power Density
Baseplate-cooled
Remote On/Off & Remote Sense
3 Year Warranty
