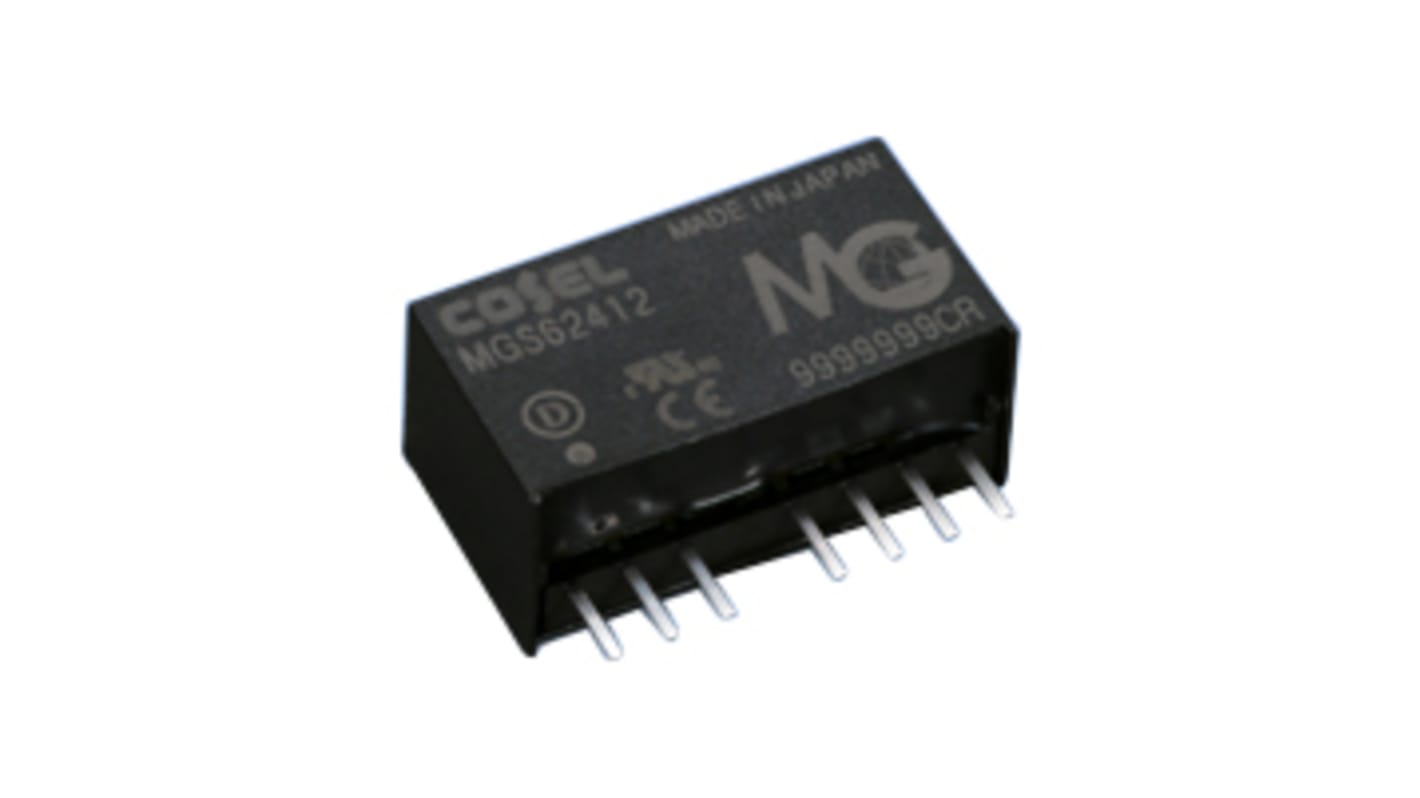

Cosel MGS DC/DC Converter, 12V dc/ 500 mA, 24V dc Input, 18V Input 6 W, PCB, 85 °C Max Temp -40 °C Min Temp, 7-Pin SIP-8

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
171-4716
Mfr. Part No.:
MGS62412
Brand:
Cosel
Find similar products by selecting one or more attributes.
Select all

Brand

Cosel

Product Type

DC/DC Converter

Output Voltage 1

12V dc

Maximum Input Voltage

24V dc

Minimum Input Voltage

18V

Output Current 1

500mA

Output Current 2

0.5A

Mount Type

PCB

Number of Outputs

1

Ripple and Noise

400mV Pk-Pk

Output Voltage Adjustment Range

11.64 to 12.36 V

Number of Pins

7

Isolation Voltage

1kV dc

Maximum Output Power

6W

Package Type

SIP-8

Depth

12mm

Length

22mm

Weight

7g

Series

MGS

Standards/Approvals

C-UL, UL62368-1, UKCA, cUL, UL60950-1, EN 62368-1, CE, CSA, RoHS, EN62368-1

Width

9.5mm

Maximum Operating Temperature

85°C

Efficiency

89%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
JP
Industry Standard

1"X1" (MGS15) , 1"X2" (MGS30)

High efficiency by synchronized rectification circuit (MGS10/MGS15/MGS30)

6 sided shield (MGS15/MGS30)

I/O isolation voltage DC1,500V (1 minute)

Built-in overcurrent protection circuits (recovers automatically)

Built-in overvoltage protection circuits (MGS30)

Built-in remote ON/OFF (MGS6/MGS10/MGS15/MGS30)

Output voltage adjustability by external variable resistor (MGS15/MGS30)

High reliability : not built-in aluminium and tantalum electrolytic capacitor

Industry Standard

I/O isolation voltage DC1,500V (1 minute)

Built-in overcurrent protection circuits (recovers automatically)

Built-in remote ON/OFF

High reliability : not built-in aluminium and tantalum electrolytic capacitor
