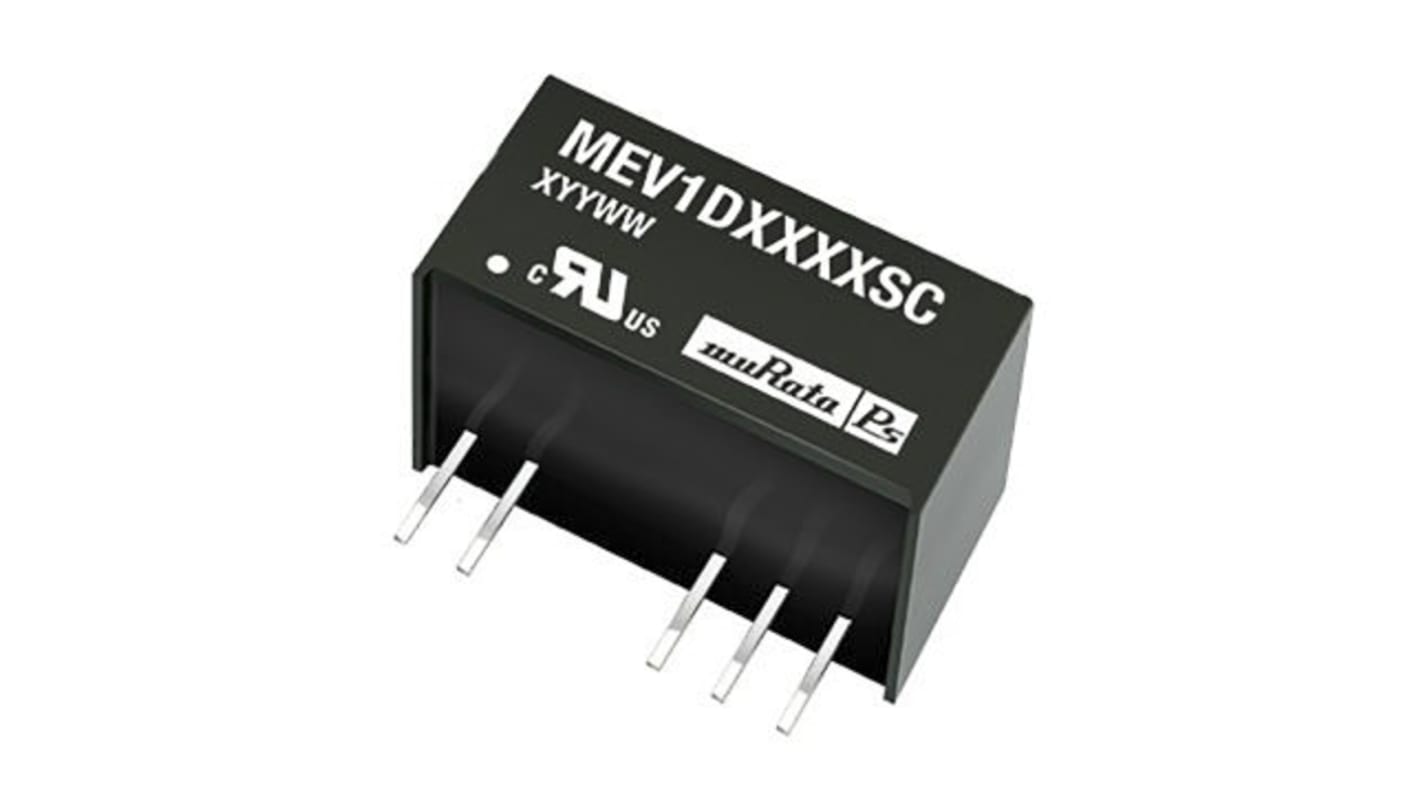

Murata Power Solutions MEV1 DC/DC Converter, 15V dc, -15 V dc/ 33 mA, 26.4V dc Input, 21.6V Input 1 W, Through Hole, 85
- RS Stock No.:
- 167-6100
- Mfr. Part No.:
- MEV1D2415SC
- Brand:
- Murata Power Solutions
Subtotal (1 tube of 25 units)*
£128.18
(exc. VAT)
£153.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £128.18 | £5.127 |
*price indicative
- RS Stock No.:
- 167-6100
- Mfr. Part No.:
- MEV1D2415SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 15, -15V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 26.4V dc | |
| Minimum Input Voltage | 21.6V | |
| Output Current 1 | 33mA | |
| Output Current 2 | 100mA | |
| Mount Type | Through Hole | |
| Output Voltage 2 | 15V dc | |
| Number of Outputs | 2 | |
| MTBF | 90.5kH | |
| Ripple and Noise | 25mV Pk-Pk | |
| Isolation Voltage | 3kV dc | |
| Number of Pins | 7 | |
| Package Type | DIP | |
| Maximum Output Power | 1W | |
| Weight | 2.5g | |
| Series | MEV1 | |
| Width | 19.65mm | |
| Depth | 10.15mm | |
| Standards/Approvals | RoHS, UL 60950 | |
| Length | 19.65mm | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 88% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 15, -15V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 26.4V dc | ||
Minimum Input Voltage 21.6V | ||
Output Current 1 33mA | ||
Output Current 2 100mA | ||
Mount Type Through Hole | ||
Output Voltage 2 15V dc | ||
Number of Outputs 2 | ||
MTBF 90.5kH | ||
Ripple and Noise 25mV Pk-Pk | ||
Isolation Voltage 3kV dc | ||
Number of Pins 7 | ||
Package Type DIP | ||
Maximum Output Power 1W | ||
Weight 2.5g | ||
Series MEV1 | ||
Width 19.65mm | ||
Depth 10.15mm | ||
Standards/Approvals RoHS, UL 60950 | ||
Length 19.65mm | ||
Maximum Operating Temperature 85°C | ||
Efficiency 88% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Murata 1W SIP Single Output Unregulated Isolated DC-DC Converter - MEV Series
1 W Single output SIP7 unregulated DC to DC converters with standard industry pinout and efficiency rating of up to 89%. These SIP7 DC to DC converters have an improved regulation performance from 1.8% making them suitable for applications where a wide output voltage variation can not be tolerated. An ideal application for these DC to DC converters is the provision of local supplies on control system boards supplies with the additional benefit of having 3kVDC galvanic isolation to reduce any switching noise.
SIP7 package with industry standard pinout
3kVdc isolation
Efficiency of up to 89%
Wide temperature performance of -40 to + 85°C at full 1W load
Power density to 0.85W/cm3
No heatsink or external components required
Fully encapsulated with toroidal magnetics
No electrolytic or tantalum capacitors
UL94V-0 package material
Murata Power Solutions - SIP
Note
MTBF to MIL-HDBK-217F
