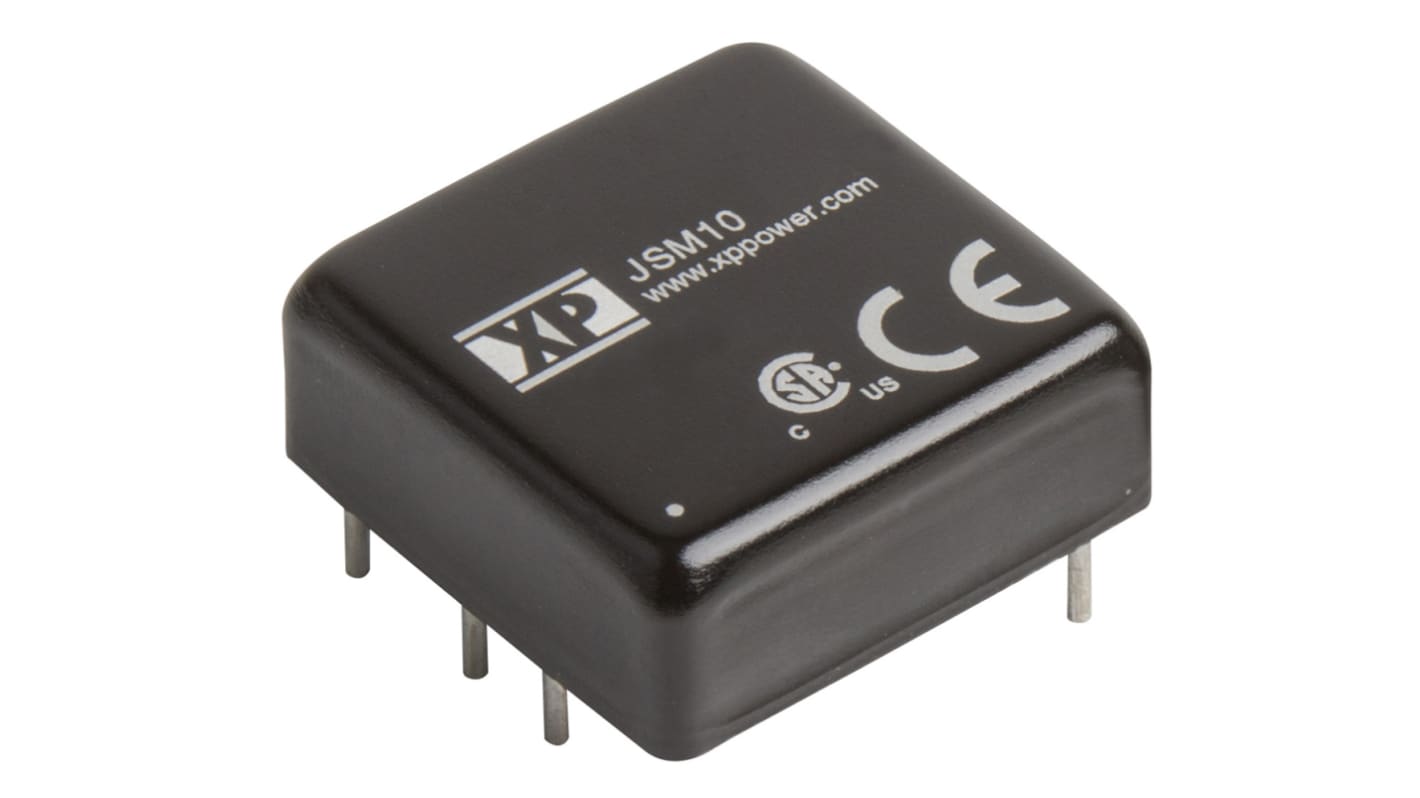

XP Power JSM10 DC-DC Converter, ±15V dc/ ±333mA Output, 36 → 75 V dc Input, 10W, Through Hole, +100°C Max Temp
- RS Stock No.:
- 167-3012
- Mfr. Part No.:
- JSM1048D15
- Brand:
- XP Power
Available to back order for despatch 13/01/2025
Price 1 Tube of 10
£247.06
(exc. VAT)
£296.47
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £247.06 | £24.706 |
5 - 9 | £239.65 | £23.965 |
10 - 24 | £232.24 | £23.224 |
25 - 49 | £224.82 | £22.482 |
50 + | £217.41 | £21.741 |
*price indicative
- RS Stock No.:
- 167-3012
- Mfr. Part No.:
- JSM1048D15
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JSM10 Series of Isolated DC-DC Converters
The JSM10 series from XP Power offers a highly reliable range of regulated single and dual output, 10 W, isolated DC-DC converters. The series has been designed in a small 1 x 1 package, features 1500 VDC in isolation and meets all ITE safety approvals. These compact DC-DC converters also attribute a 2:1 input range and a wide -40 °C to +100 °C operating temperature range.
10 W, isolated DC-DC converters
2:1 input range
Regulated single and dual outputs
Small 1 x 1 package
1500 VDC in isolation
ITE safety approved
Wide -40 °C to +100 °C operating temperature range
2:1 input range
Regulated single and dual outputs
Small 1 x 1 package
1500 VDC in isolation
ITE safety approved
Wide -40 °C to +100 °C operating temperature range
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 36 → 75 V dc |
Power Rating | 10W |
Input Voltage Nominal | 48 V dc |
Output Current | ±333mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | ±14.7 V dc, ±15.3V dc |
Package | 1 x 1 in |
Isolation Voltage | 1.5kV dc |
Width | 25.4mm |
Depth | 10.16mm |
Length | 25.4mm |
Series | JSM10 |
Load Regulation | ±1% |
Minimum Temperature | -40°C |
Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1 |
Maximum Temperature | +100°C |
