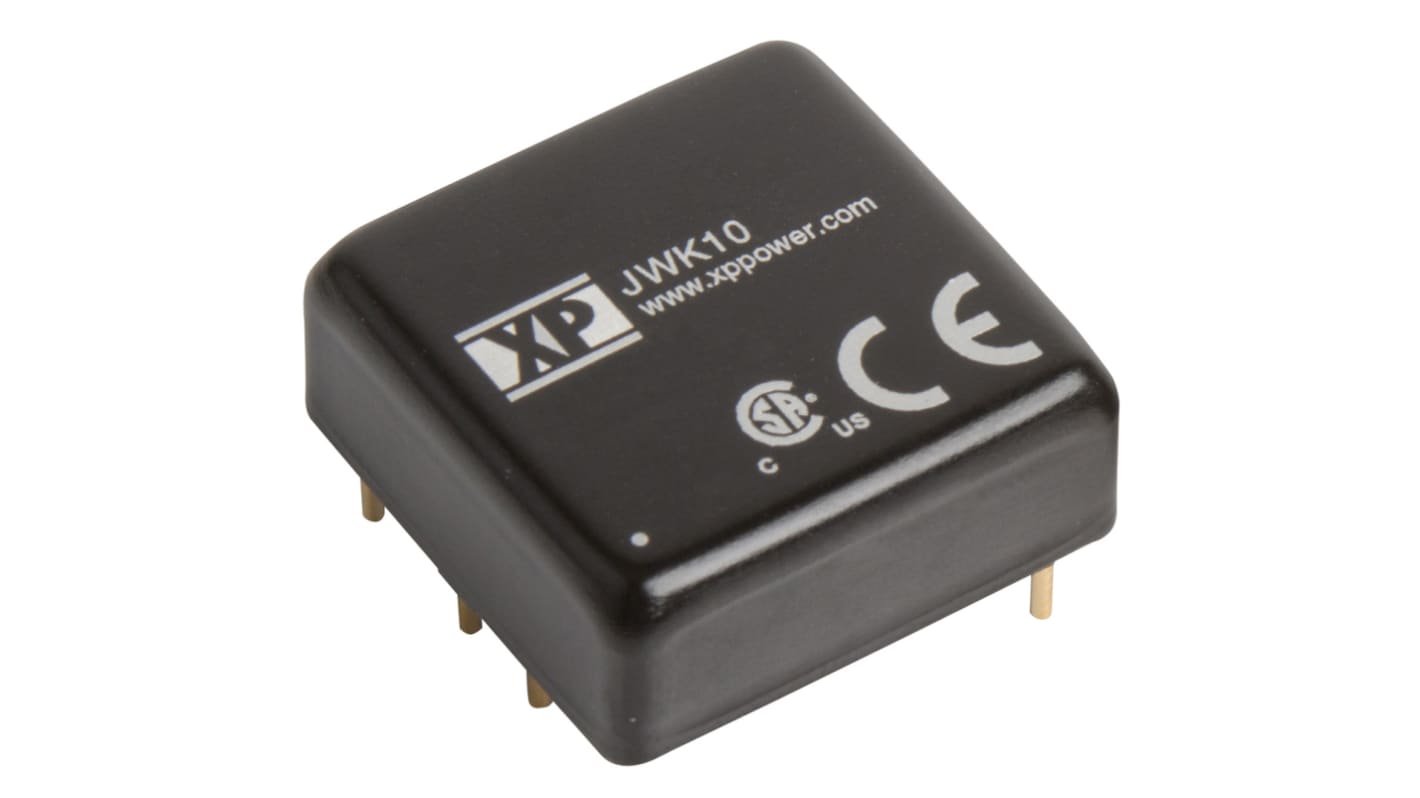

XP Power JWK10 DC-DC Converter, 15V dc/ 661mA Output, 9 → 36 V dc Input, 10W, Through Hole, +100°C Max Temp

RS Stock No.:: 167-2813
Mfr. Part No.:: JWK1024S15
Brand:: XP Power

XP Power JWK10 DC-DC Converter, 15V dc/ 661mA Output, 9 → 36 V dc Input, 10W, Through Hole, +100°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£194.78

(exc. VAT)

£233.74

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 +	£194.78	£19.478

*price indicative

RS Stock No.:: 167-2813
Mfr. Part No.:: JWK1024S15
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	15V dc
Input Voltage Range	9 → 36 V dc
Power Rating	10W
Input Voltage Nominal	24 V dc
Output Current	661mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 1 in
Isolation Voltage	1.5kV dc
Length	25.4mm
Depth	10.16mm
Width	25.4mm
Series	JWK10
Load Regulation	±0.5%
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1
Minimum Temperature	-40°C
Maximum Temperature	+100°C

XP Power JWK10 DC-DC Converter, 15V dc/ 661mA Output, 9 → 36 V dc Input, 10W, Through Hole, +100°C Max Temp

XP Power - JWK10 Series of Isolated DC-DC Converters
