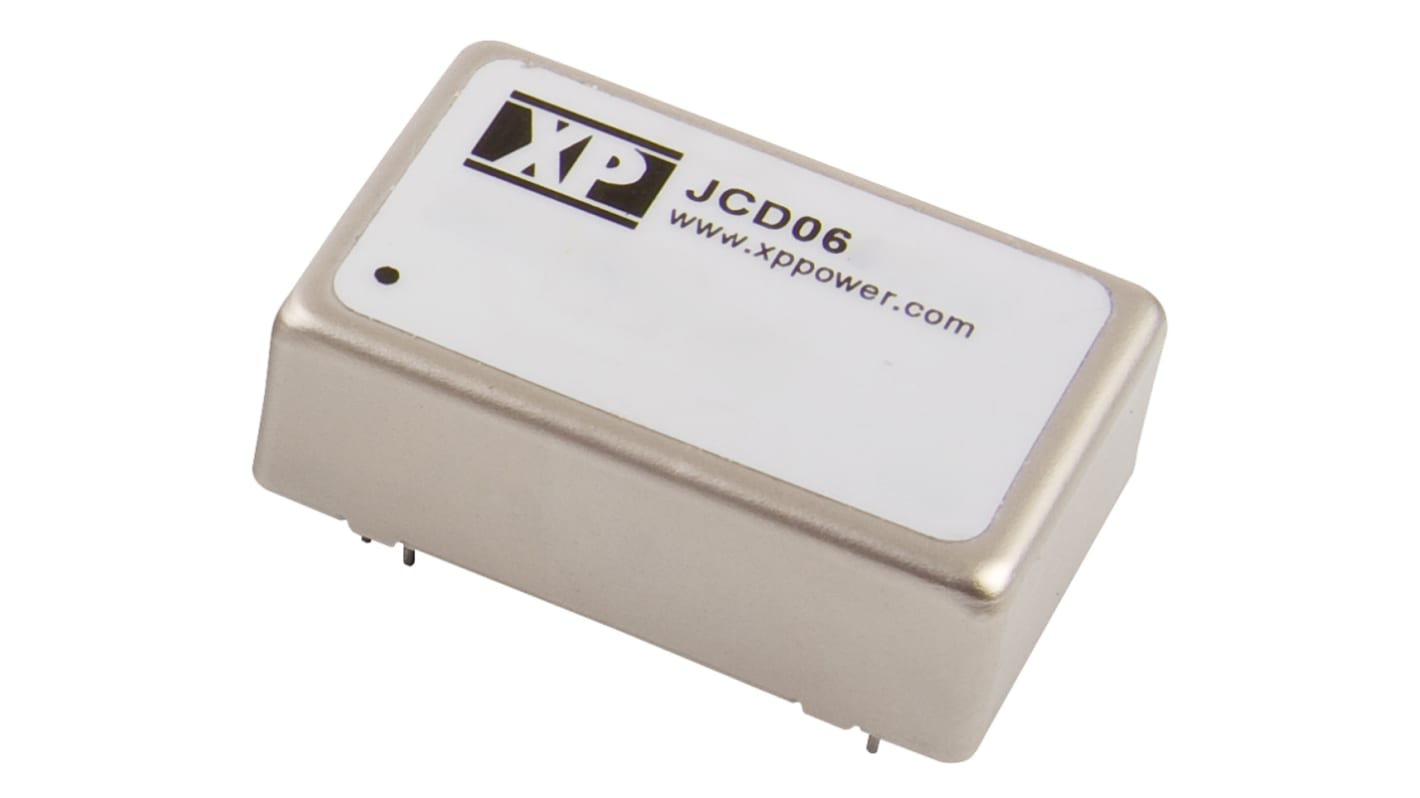

XP Power JCD DC-DC Converter, ±12V dc/ ±250mA Output, 18 → 36 V dc Input, 6W, Through Hole, +100°C Max Temp

RS Stock No.:: 167-2801
Mfr. Part No.:: JCD0624D12
Brand:: XP Power

XP Power JCD DC-DC Converter, ±12V dc/ ±250mA Output, 18 → 36 V dc Input, 6W, Through Hole, +100°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£155.33

(exc. VAT)

£186.40

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£155.33	£15.533
5 - 9	£150.67	£15.067
10 - 24	£146.01	£14.601
25 - 49	£141.35	£14.135
50 +	£136.69	£13.669

*price indicative

RS Stock No.:: 167-2801
Mfr. Part No.:: JCD0624D12
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	18 → 36 V dc
Power Rating	6W
Input Voltage Nominal	24 V dc
Output Current	±250mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±11.88 V dc, ±12.12V dc
Package	DIP 24
Isolation Voltage	1.6kV dc
Depth	10.4mm
Width	20.32mm
Length	31.75mm
Series	JCD
Load Regulation	±0.5%
Maximum Temperature	+100°C
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-217F

XP Power JCD DC-DC Converter, ±12V dc/ ±250mA Output, 18 → 36 V dc Input, 6W, Through Hole, +100°C Max Temp

XP Power - JCD Series of 4 W to 6 W Isolated DC-DC Converters
