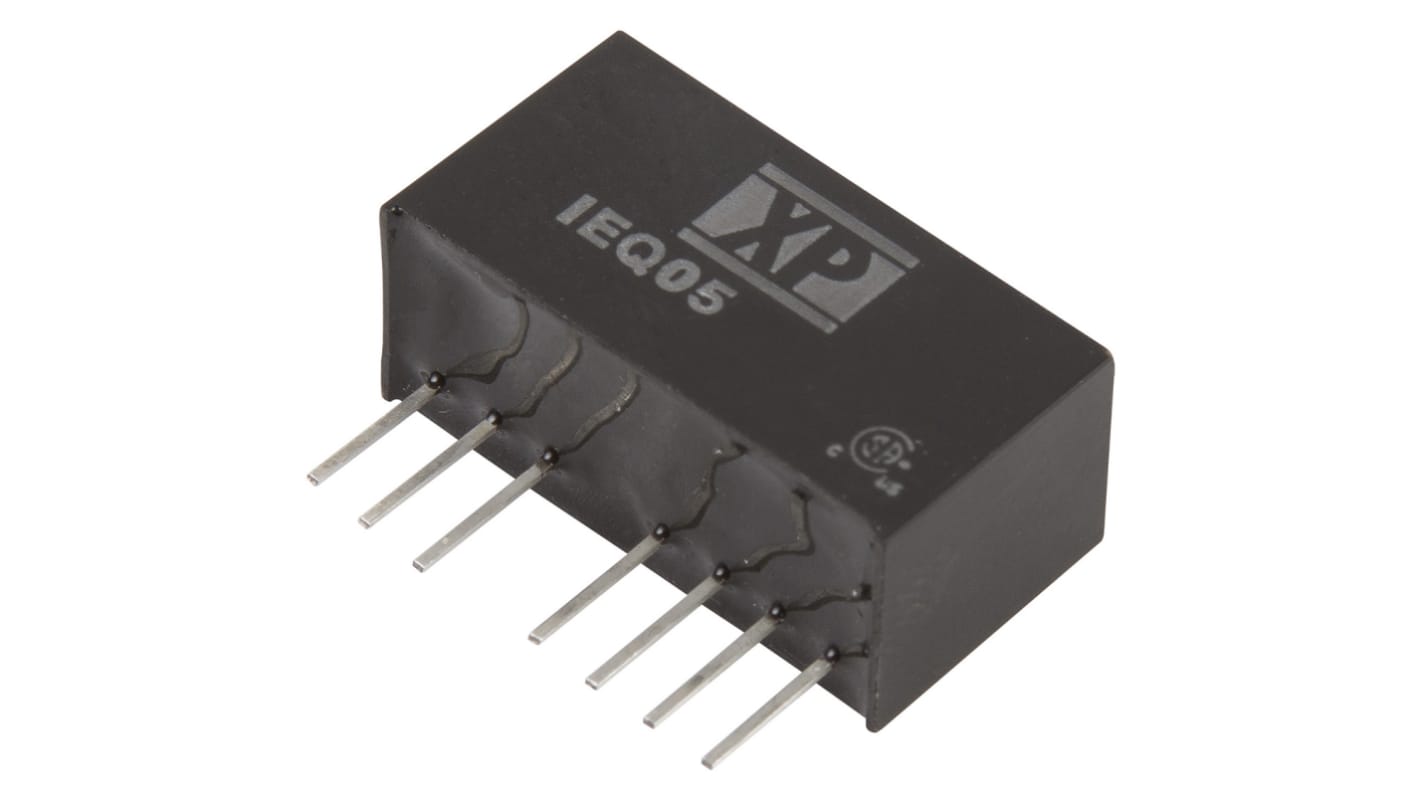

XP Power IEQ DC-DC Converter, ±12V dc/ ±209mA Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp

RS Stock No.:: 167-2782
Mfr. Part No.:: IEQ0512D12
Brand:: XP Power

XP Power IEQ DC-DC Converter, ±12V dc/ ±209mA Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp

Bulk discount available

Subtotal (1 tube of 40 units)**

£788.80

(exc. VAT)

£946.56

(inc. VAT)

Available to back order for despatch 26/08/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£788.80	£19.72
5 - 9	£765.14	£19.128
10 - 24	£741.47	£18.537
25 - 49	£717.81	£17.945
50 +	£694.14	£17.354

**price indicative

RS Stock No.:: 167-2782
Mfr. Part No.:: IEQ0512D12
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	4.5 → 18 V dc
Power Rating	5W
Input Voltage Nominal	12 V dc
Output Current	±209mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP
Isolation Voltage	1.5kV dc
Length	21.8mm
Width	9.3mm
Depth	11.2mm
Series	IEQ
Load Regulation	±1%
Minimum Temperature	-40°C
Maximum Temperature	+90°C
Efficiency	81%
Standards Met	CB, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, MIL-HDBK-217F, UL, UL 94 V-0, UL/cUL 60950-1

XP Power IEQ DC-DC Converter, ±12V dc/ ±209mA Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp

FREE delivery for orders over £50.00

XP Power - IEQ05 Series of Isolated DC-DC Converters
