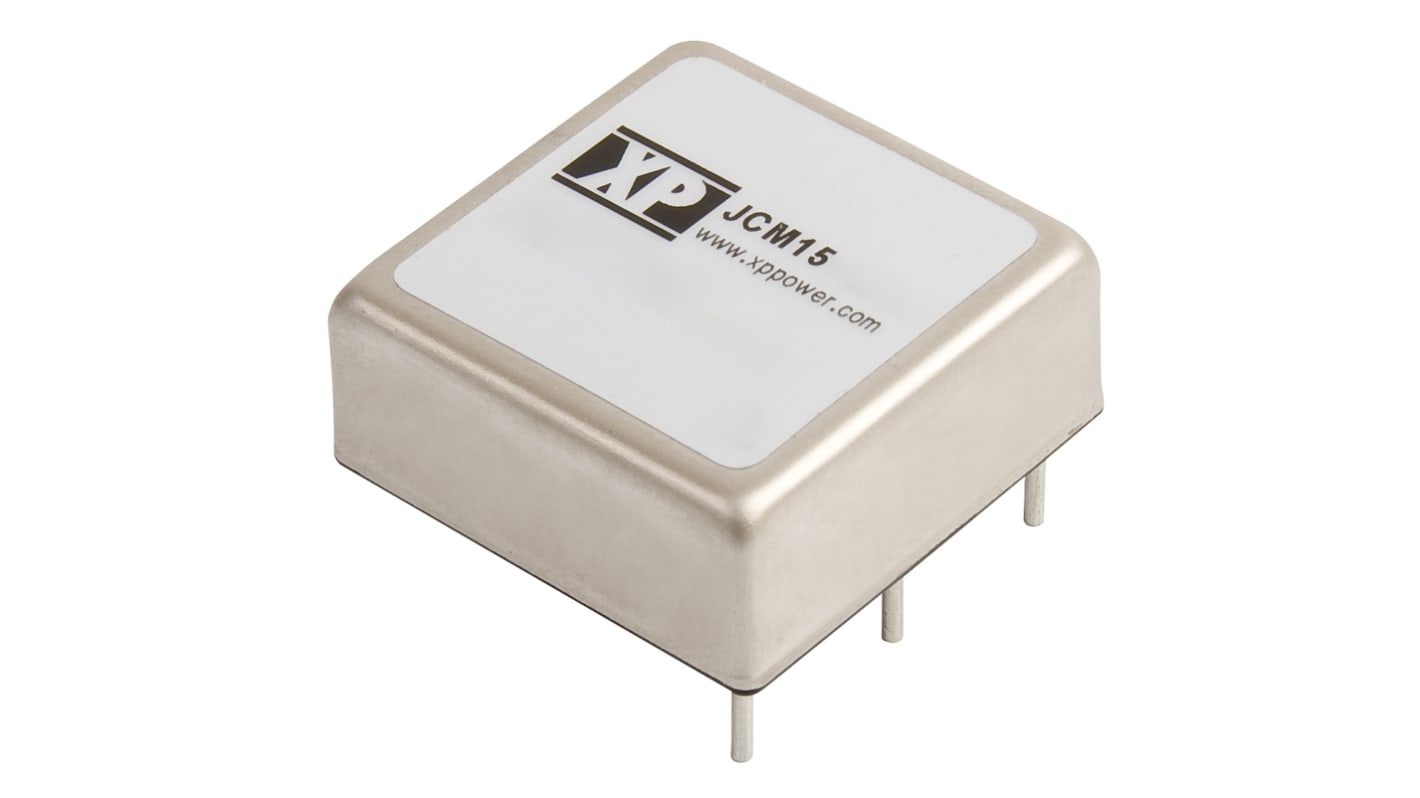

XP Power JCM DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp

RS Stock No.:: 167-2547
Mfr. Part No.:: JCM1524D12
Brand:: XP Power

Technical Reference (1)

XP Power JCM DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp

View this category

Available to back order for despatch 21/10/2024

Price 1 Tube of 10

£324.48

(exc. VAT)

£389.38

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£324.48	£32.448
5 - 9	£314.75	£31.475
10 - 24	£305.01	£30.501
25 - 49	£295.28	£29.528
50 +	£285.54	£28.554

*price indicative

RS Stock No.:: 167-2547
Mfr. Part No.:: JCM1524D12
Brand:: XP Power

COO (Country of Origin):: TW

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	18 → 36 V dc
Power Rating	15W
Input Voltage Nominal	24 V dc
Output Current	±625mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	1 x 1 in
Isolation Voltage	1.6kV dc
Width	25.4mm
Length	25.4mm
Depth	9.9mm
Series	JCM
Load Regulation	±1%
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+105°C
Minimum Temperature	-40°C

XP Power JCM DC-DC Converter, ±12V dc/ ±625mA Output, 18 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp

Technical Reference (1)

XP Power - JCM15 Series of Isolated DC-DC Converters
