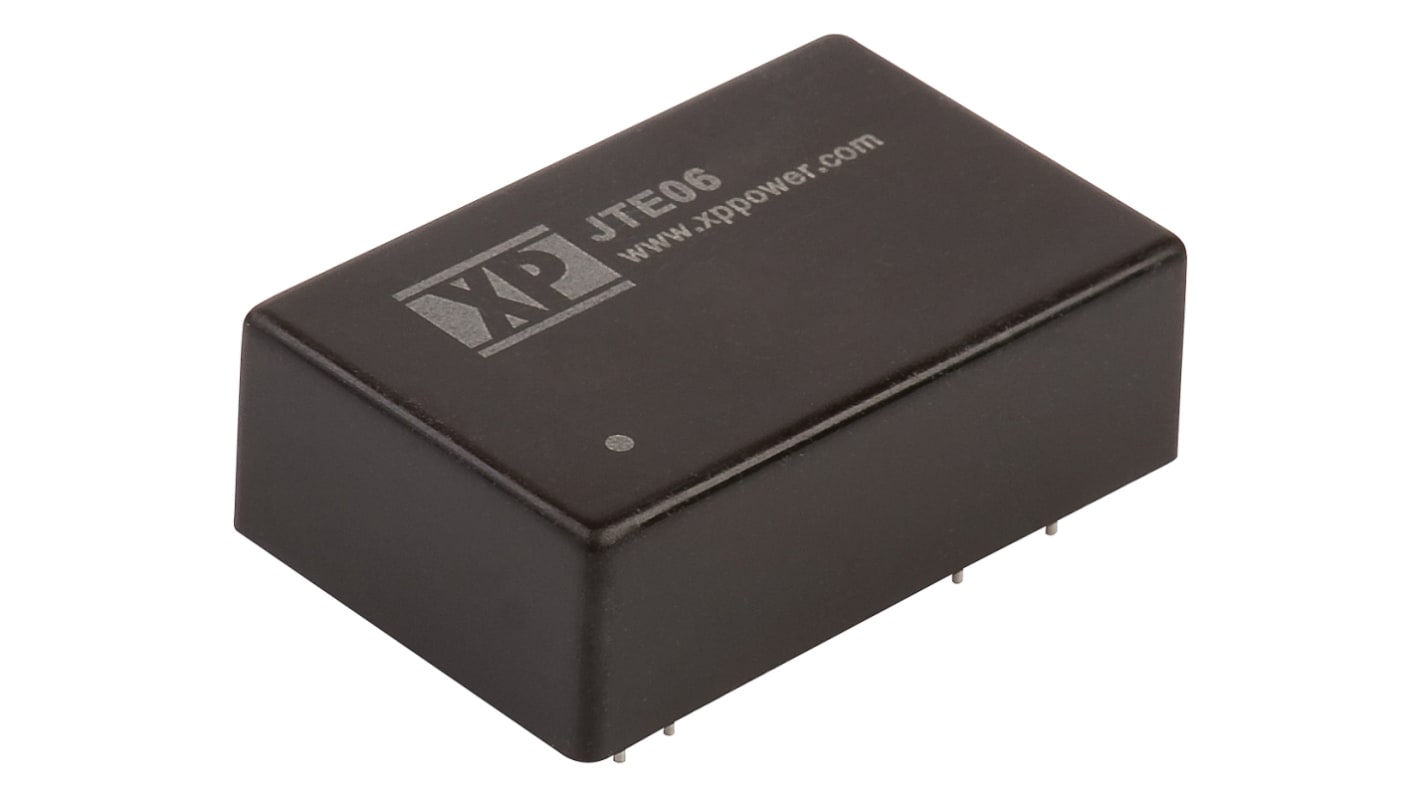

XP Power JTE DC/DC Converter, 12V dc/ 0.6 A, 36V dc Input, 18V Input 6 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2539
Mfr. Part No.:
JTE0624D12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

0.6A

Mount Type

Through Hole

Input Ratio

2:1

Number of Outputs

2

MTBF

1100000h

Isolation Voltage

1.5kV dc

Number of Pins

7

Maximum Output Power

6W

Package Type

DIP-24

Series

JTE

Width

20.32mm

Length

31.75mm

Depth

10.4mm

Standards/Approvals

No

Minimum Operating Temperature

-40°C

Efficiency

85%

Maximum Operating Temperature

85°C

XP Power - JTE06 Series of Isolated DC-DC Converters


The JTE06 series from XP Power offers a highly reliable range of single and dual output, 6 W, isolated DC-DC converters. The series has been designed in an industry standard DIP-24 package, features 1500 VDC in isolation and a high efficiency of up to 84%. These compact DC-DC converters have a 4:1 input range and a wide operating temperature of -40 °C to +100 °C.

6 W, isolated DC-DC converters

1500 VDC isolation, 3000 VDC option available

Single and dual outputs

Wide 4:1 input range

-40 °C to +100 °C Operating temperature

High efficiency up to 84%

Industry standard DIP-24 package

Board mount

Optional metal case
