Over 800,000 products available

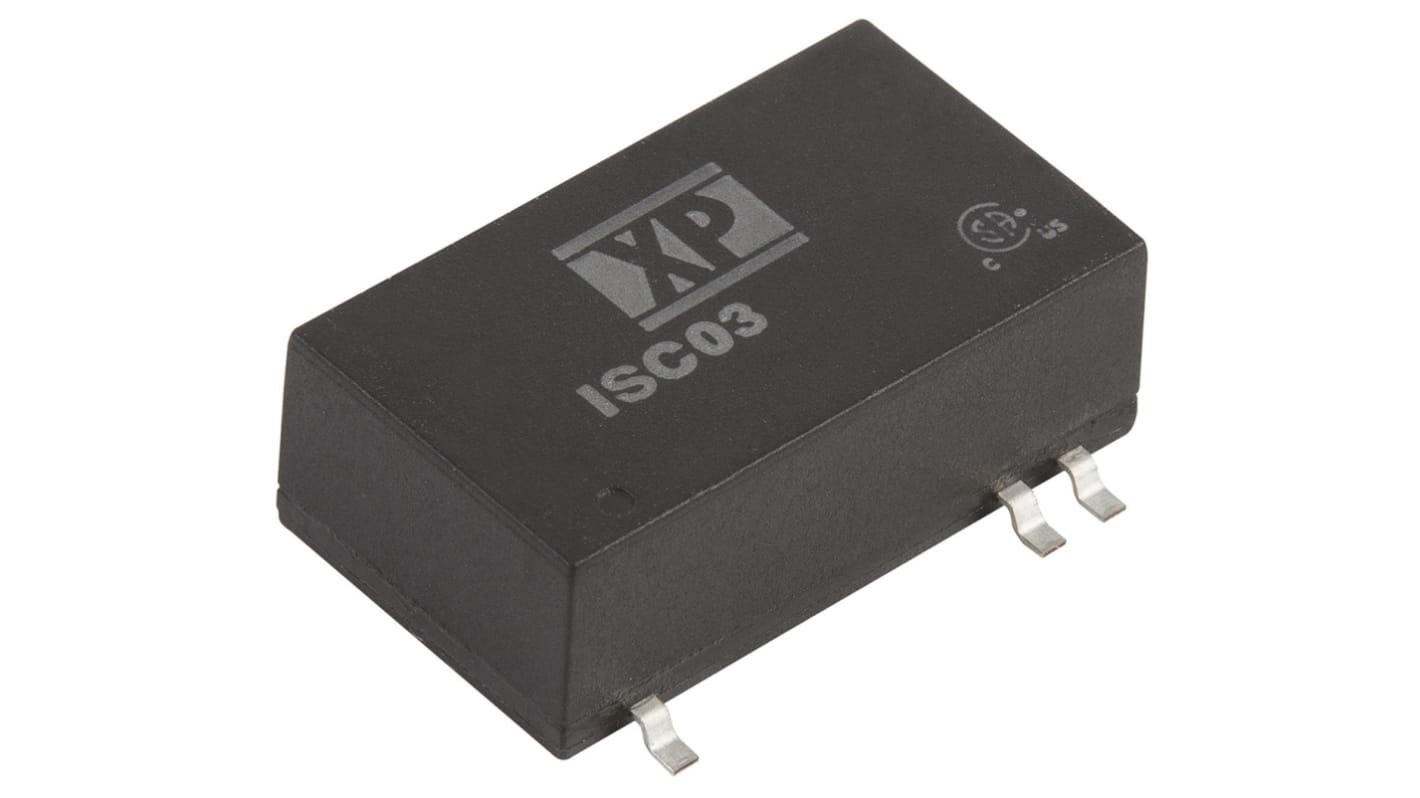

XP Power ISC DC/DC Converter, 15V dc/ 15 mA, 75V dc Input, 18V Input 3 W, Surface, 100 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2535
Mfr. Part No.:
ISC0348D15
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

15V dc

Product Type

DC/DC Converter

Minimum Input Voltage

18V

Maximum Input Voltage

75V dc

Output Current 1

15mA

Output Current 2

100mA

Mount Type

Surface

Input Ratio

4:1

MTBF

300000h

Number of Outputs

2

Number of Pins

16

Isolation Voltage

1.5kV dc

Package Type

Surface Mount

Maximum Output Power

3W

Series

ISC

Width

13.7mm

Standards/Approvals

No

Length

24mm

Depth

8mm

Minimum Operating Temperature

-40°C

Efficiency

80%

Maximum Operating Temperature

100°C

COO (Country of Origin):
TW

XP Power - ISC03 Series of Isolated DC-DC Converters


The ISC03 series from XP Power offers a highly reliable range of regulated single and dual output, 3 W, isolated DC-DC converters. The series features 1500 VDC in isolation and has been designed in a compact SMD package, with a tape and reel option also available. These compact DC-DC converters have a wide 4:1 input range, feature remote on/off settings and have an operating temperature from -40 °C to +100 °C.

1 W, isolated DC-DC converters

1500 VDC in isolation

Wide 4:1 input range

Regulated single and dual output

-40 °C to +95 °C Operating temperature

Remote on/off

Compact SMD package

Tape and reel package also available

Up to 80% efficiency

Board mount
