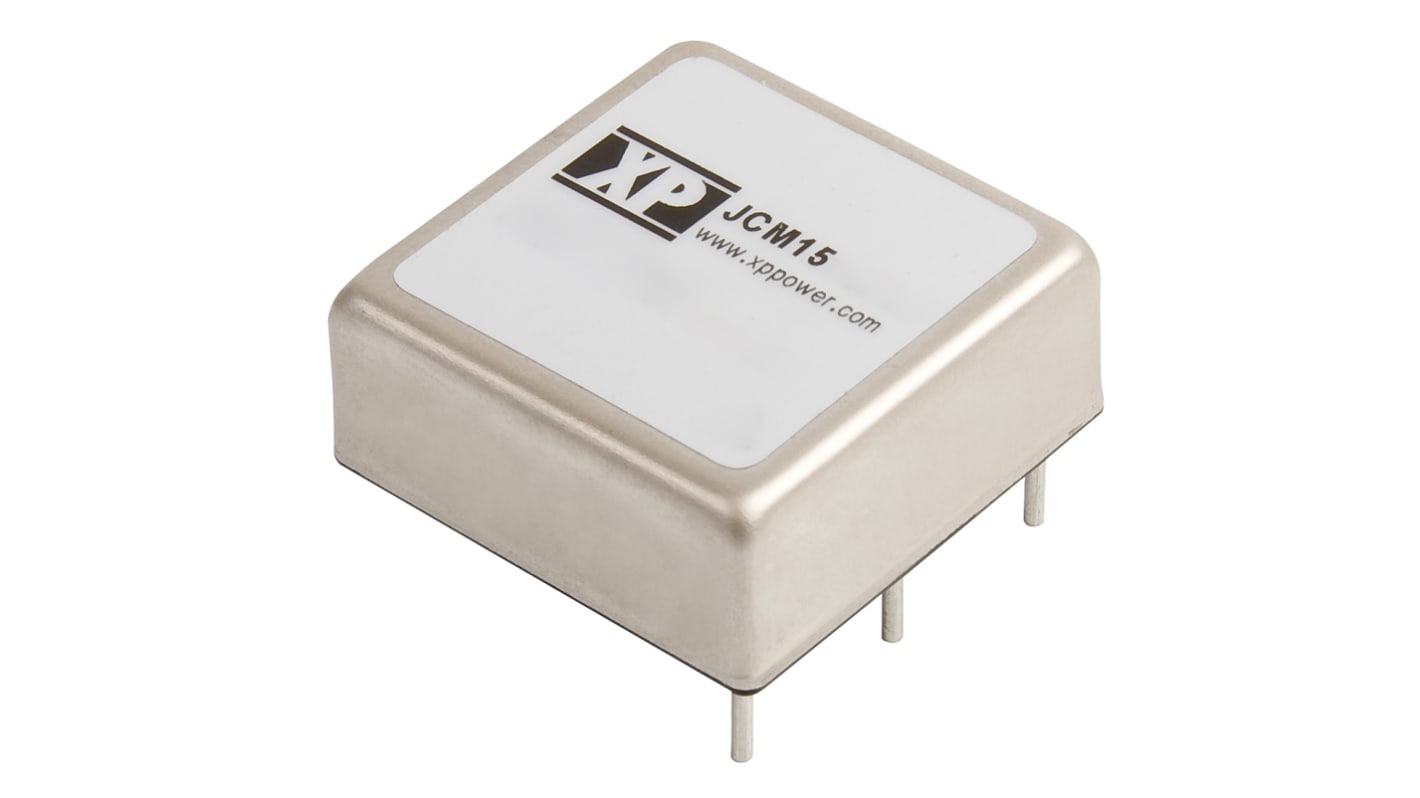

XP Power JCM DC/DC Converter, 15V dc/ 0.5 A, 18V dc Input, 9V Input 15 W, Through Hole, 105 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2523
Mfr. Part No.:
JCM1512D15
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

15V dc

Maximum Input Voltage

18V dc

Minimum Input Voltage

9V

Output Current 1

0.5A

Mount Type

Through Hole

Input Ratio

2:1

MTBF

560000h

Number of Outputs

2

Number of Pins

6

Isolation Voltage

1.6kV dc

Package Type

PCB Mount

Maximum Output Power

15W

Depth

9.9mm

Series

JCM

Length

25.4mm

Width

25.4mm

Standards/Approvals

No

Maximum Operating Temperature

105°C

Efficiency

89%

Minimum Operating Temperature

-40°C

XP Power - JCM15 Series of Isolated DC-DC Converters


The JCM15 series from XP Power offers an excellent range of single and dual output, 15 W, isolated DC-DC converters. The series has been designed in an industry standard package, features 1600 VDC in isolation and a high efficiency of up to 89%. These compact DC-DC converters have a 2:1 input range and also feature very high power density.

15 W, isolated DC-DC converters

1600 VDC isolation

Single and dual outputs

2:1 input range

-40 °C to +105 °C Operating temperature

High efficiency up to 89%

Very high power density

Board mount
