XP Power JCJ DC-DC Converter, ±5V dc/ ±800mA Output, 9 → 18 V dc Input, 8W, Through Hole, +100°C Max Temp -40°C
- RS Stock No.:
- 167-2507
- Mfr. Part No.:
- JCJ0812D05
- Brand:
- XP Power
Available to back order for despatch 08/10/2024
Price 1 Tube of 10
£225.99
(exc. VAT)
£271.19
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £225.99 | £22.599 |
5 - 9 | £219.21 | £21.921 |
10 - 24 | £212.43 | £21.243 |
25 - 49 | £205.65 | £20.565 |
50 + | £198.87 | £19.887 |
*price indicative
- RS Stock No.:
- 167-2507
- Mfr. Part No.:
- JCJ0812D05
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

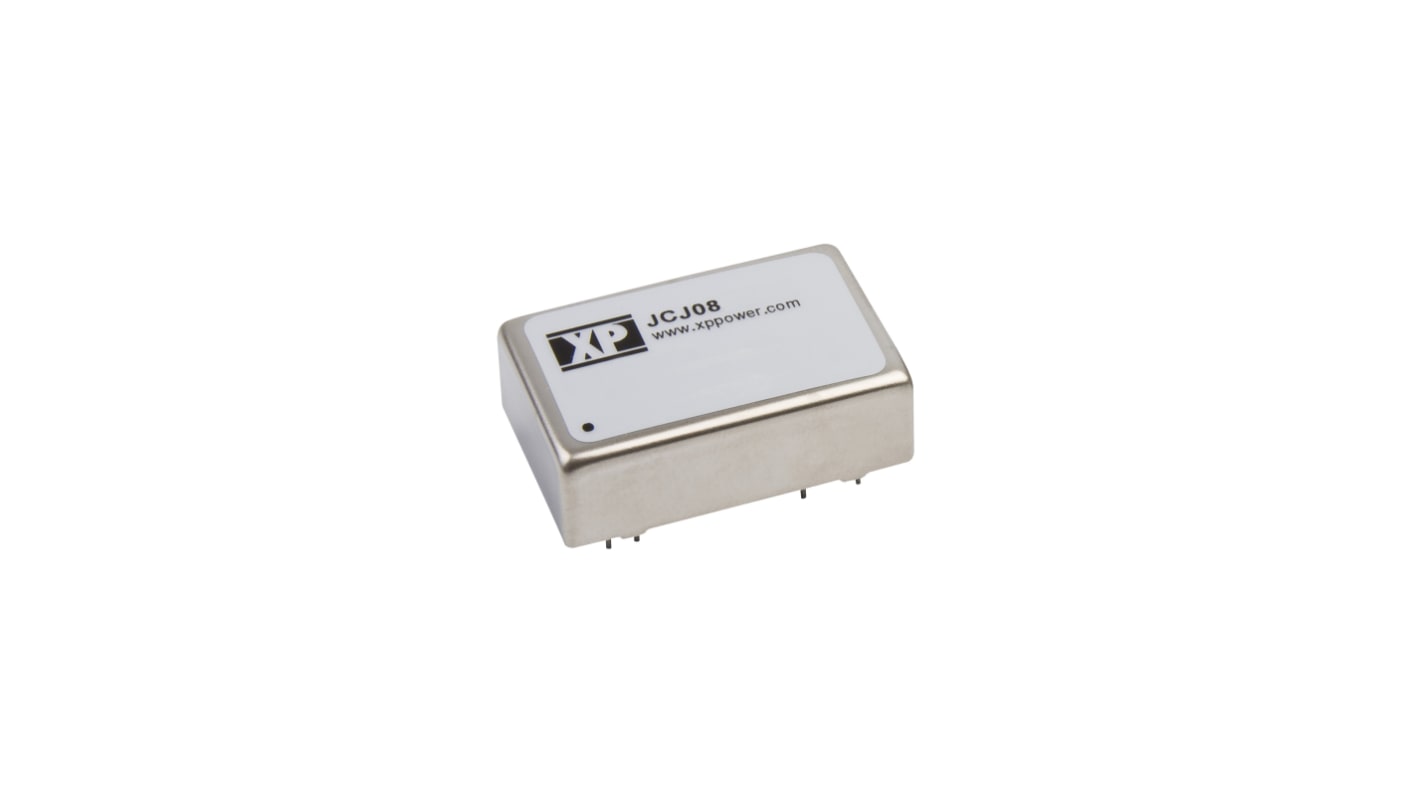

XP Power – JCJ08 Series of Isolated DC-DC Converters
The JCJ08 series from XP Power offers a highly reliable range of 8 W, isolated DC-DC converters. The series has been designed in a DIP-24 package with an industry standard footprint and features a 2:1 input voltage range. No minimum load is required for any of the DC-DC converters in the range and single and dual output options are available.
8 W, isolated DC-DC converters
1500 VDC isolation
2:1 input range
DIP-24 package
Single and dual outputs
-40 °C to +70 °C Operating temperature
Continuous short circuit protection
Board mount
1500 VDC isolation
2:1 input range
DIP-24 package
Single and dual outputs
-40 °C to +70 °C Operating temperature
Continuous short circuit protection
Board mount
XP Power - DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | ±5V dc |
Input Voltage Range | 9 → 18 V dc |
Power Rating | 8W |
Input Voltage Nominal | 12 V dc |
Output Current | ±800mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | DIP 24 |
Isolation Voltage | 1.5kV dc |
Depth | 10.16mm |
Length | 31.75mm |
Width | 20.32mm |
Series | JCJ |
Load Regulation | ±0.5% |
Maximum Temperature | +100°C |
Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
Minimum Temperature | -40°C |
