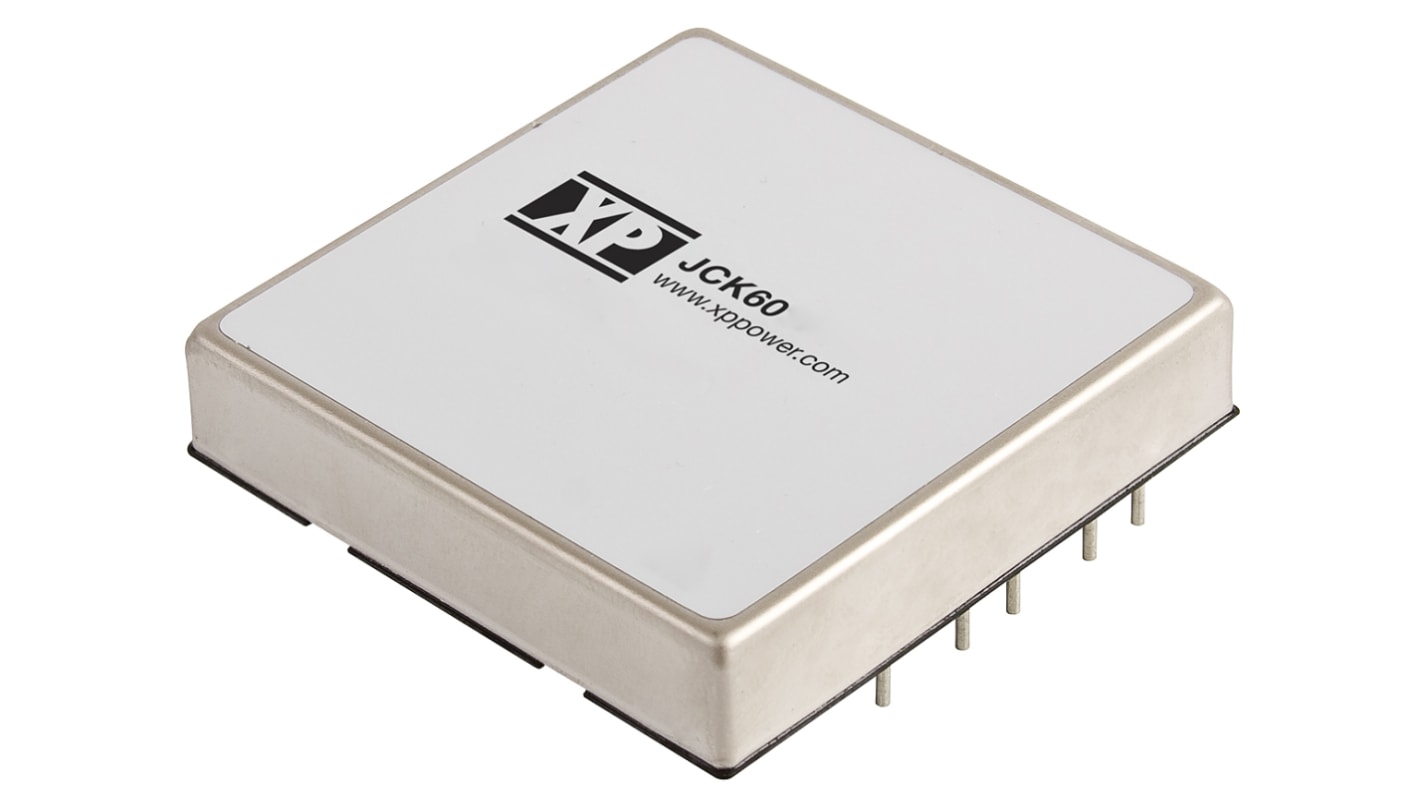

XP Power JCK DC-DC Converter, 12V dc/ 5A Output, 18 → 36 V dc Input, 60W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 167-2375
- Mfr. Part No.:
- JCK6024S12
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 5 units)*
£391.35
(exc. VAT)
£469.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £391.35 | £78.27 |
| 5 - 9 | £379.61 | £75.922 |
| 10 - 24 | £367.87 | £73.574 |
| 25 - 49 | £356.13 | £71.226 |
| 50 + | £344.39 | £68.878 |
*price indicative
- RS Stock No.:
- 167-2375
- Mfr. Part No.:
- JCK6024S12
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 60W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 5A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | 2 x 2 in | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 10.16mm | |
| Width | 50.8mm | |
| Length | 50.8mm | |
| Series | JCK | |
| Load Regulation | ±0.5% | |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 60W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 5A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 2 x 2 in | ||
Isolation Voltage 1.6kV dc | ||
Depth 10.16mm | ||
Width 50.8mm | ||
Length 50.8mm | ||
Series JCK | ||
Load Regulation ±0.5% | ||
Standards Met EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
